RZB64 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

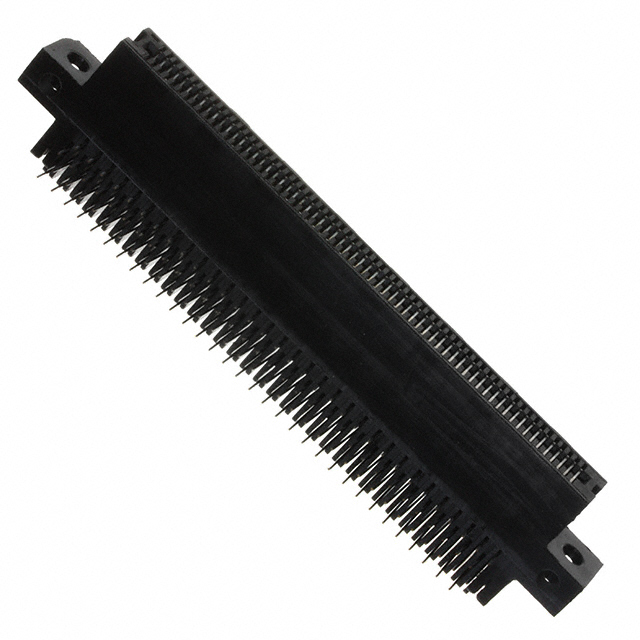

CONN EDGE DUAL FML 128POS 0.050
| Part | Material - Insulation | Number of Positions/Bay/Row | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch | Pitch | Mounting Type | Card Type | Contact Type | Number of Rows [custom] | Gender | Color | Contact Material | Termination | Card Thickness | Card Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Dual | -65 ░C | 125 °C | 128 | 0.25 Ám | 10 Áin | Gold | 0.05 in | 1.27 mm | Through Hole | Non Specified - Dual Edge | Hairpin Bellows | 2 | Female | Black | Phosphor Bronze | Solder Staggered | 1.57 mm | 0.062 in | ||||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Dual | -65 ░C | 125 °C | 128 | 0.25 Ám | 10 Áin | Gold | 0.05 in | 1.27 mm | Right Angle Through Hole | Non Specified - Dual Edge | Hairpin Bellows | 2 | Female | Black | Phosphor Bronze | Solder Staggered | 1.57 mm | 0.062 in | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm | |
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Dual | -65 ░C | 125 °C | 128 | 0.25 Ám | 10 Áin | Gold | 0.05 in | 1.27 mm | Surface Mount | Non Specified - Dual Edge | Hairpin Bellows | 2 | Female | Black | Phosphor Bronze | Solder | 1.57 mm | 0.062 in | Board Lock |
