807-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FML 9POS 0.156 TIN
| Part | Gender | Read Out | Termination | Number of Positions | Material - Insulation | Color | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Termination Rows | Contact Type | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Number of Rows | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Mounting Type | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

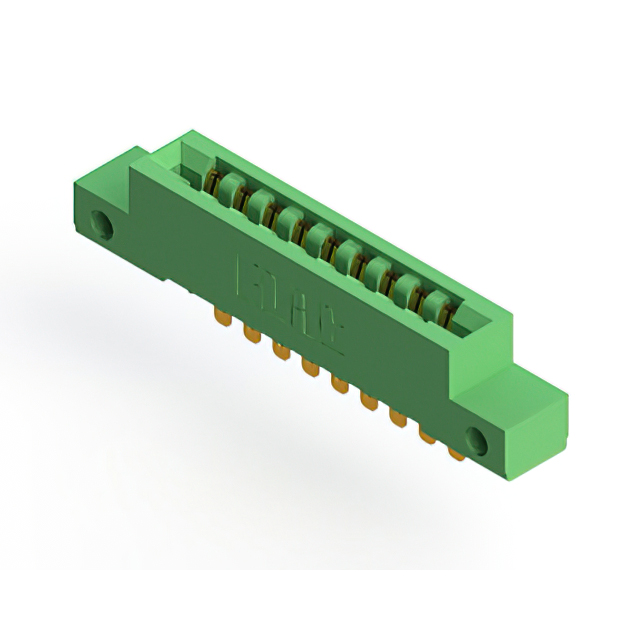

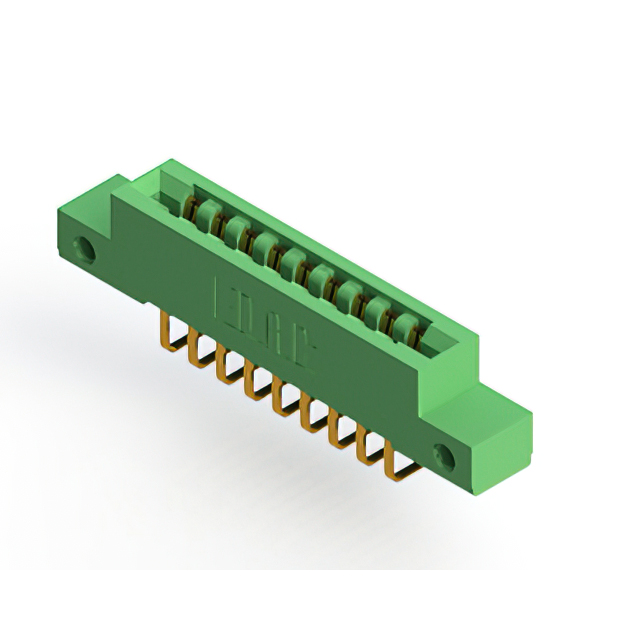

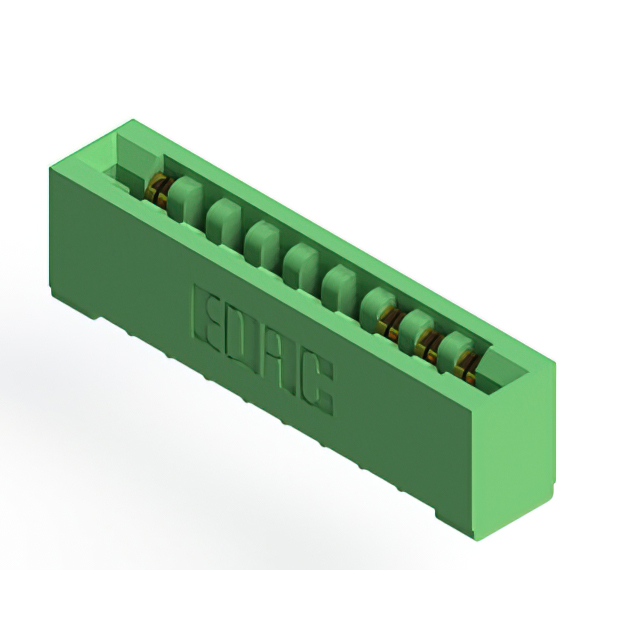

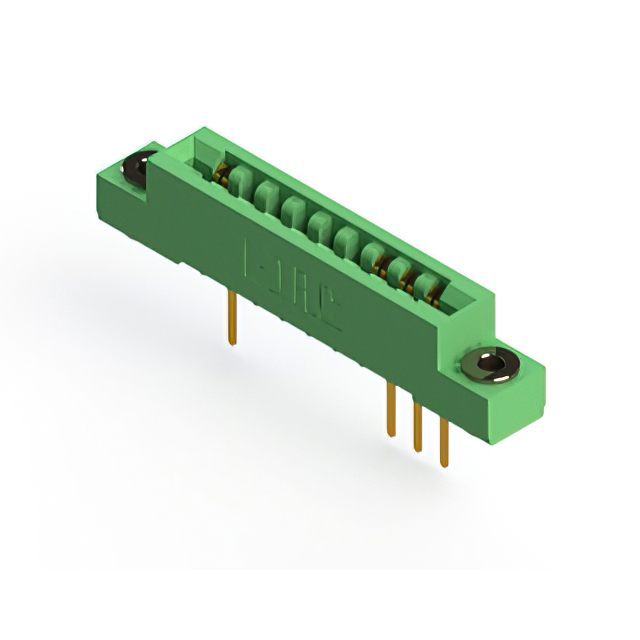

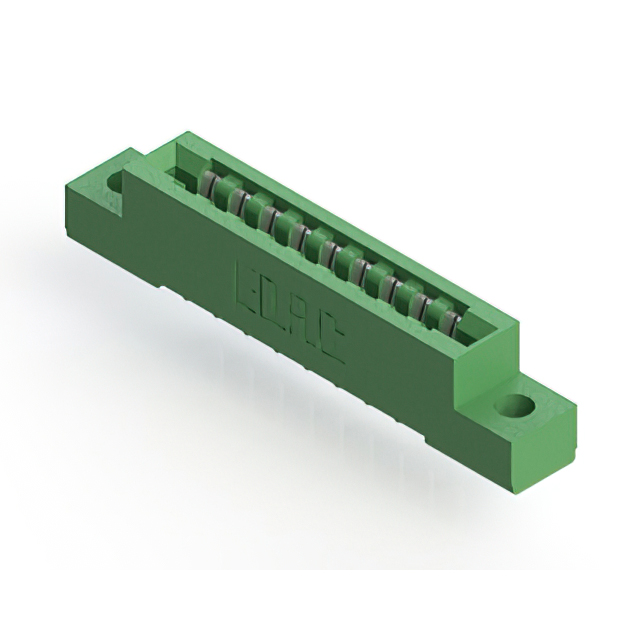

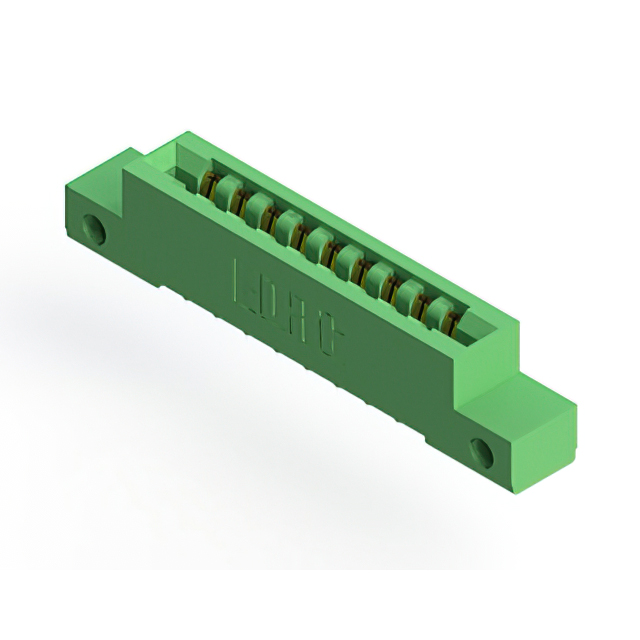

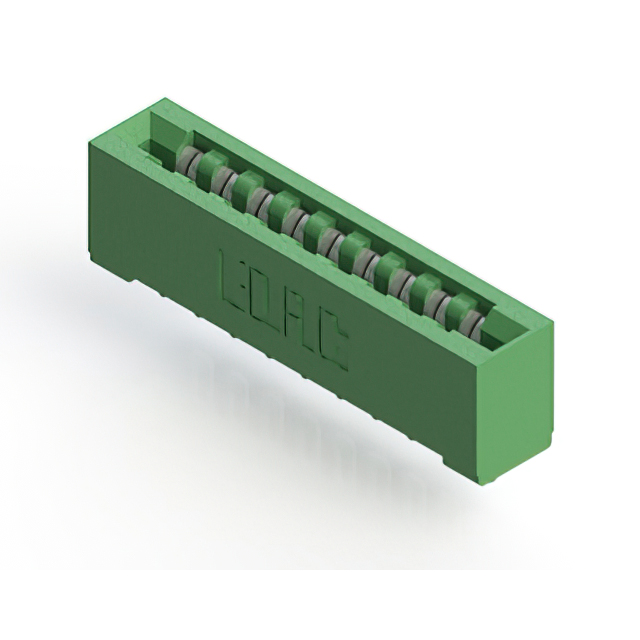

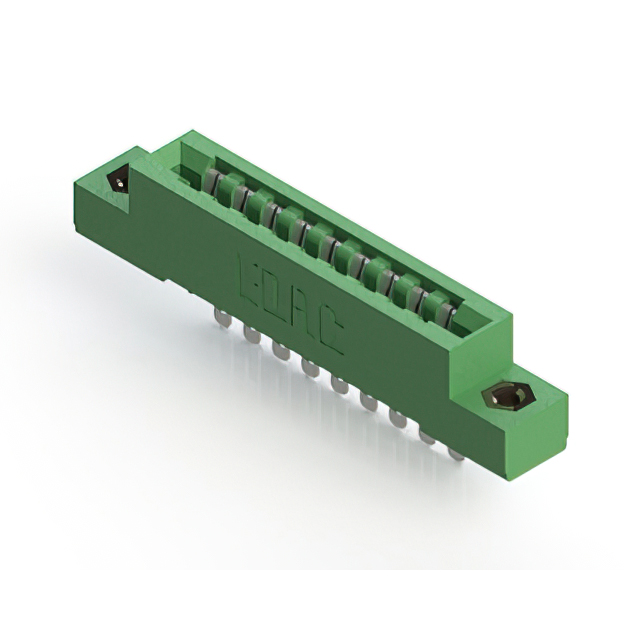

 EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 1 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Through Hole | ||||
 EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Through Hole | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 1 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Through Hole | 3.25 mm | 0.128 in | ||||
 EDAC Inc. | Female | Dual | Solder | 18 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Dual Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | 0.156 in | 3.96 mm | Through Hole Right Angle | 10 Áin | 0.25 Ám | |||||
 EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Through Hole Right Angle | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Female | Dual | Wire Wrap | 18 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Dual Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Through Hole | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Female | Single | Solder | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Through Hole Right Angle | 10 Áin | 0.25 Ám | ||||
 EDAC Inc. | Female | Dual | Solder Eyelet(s) | 18 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Dual Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 2 | 0.156 in | 3.96 mm | Through Hole | |||||||
 EDAC Inc. | Female | Dual | Solder | 18 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Dual Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Through Hole Right Angle | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Female | Single | Wire Wrap | 9 | Diallyl Phthalate (DAP) | Green | 9 | 125 °C | -40 °C | Non Specified - Single Edge | 1 | Semi Bellows | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 1 | 0.156 in | 3.96 mm | Through Hole |
