1757254 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

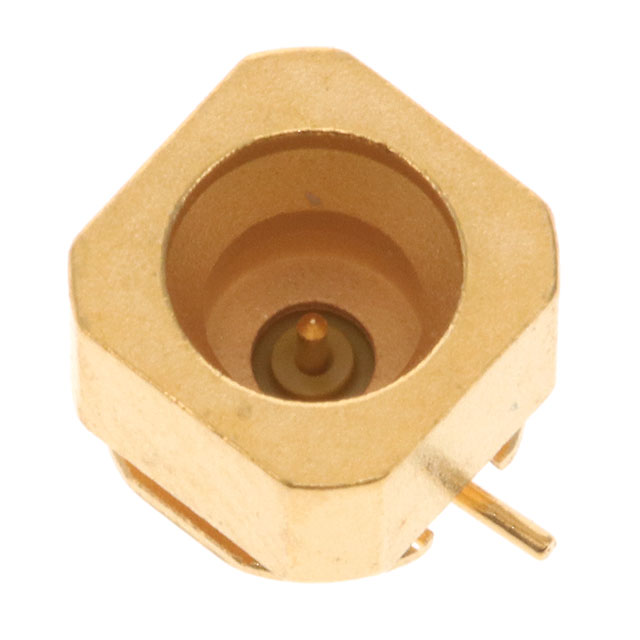

SCD SMPM SURFACE MOUNT
| Part | Dielectric Material | Features | Housing Color | Contact Termination | Body Material | Connector Type | Shield Termination | Impedance | Frequency - Max [Max] | Voltage Rating | Fastening Type | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Number of Ports | Mounting Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Polyamide-Imide (PAI) | Full Detent | Gold | Solder | Brass | Male Pin Plug | Solder | 50 Ohms | 20 GHz | 150 VDC | Snap-On | Gold | Gold | -55 °C | 125 °C | Beryllium Copper | 1 | Surface Mount | SMPM |
