2141 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, DOUBLER ROW 4 PINS,

Part	Contact Material	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Mating	Insulation Color	Insulation Height	Insulation Height	Contact Type	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Material Flammability Rating	Number of Rows [custom]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows
Oupiin 2141-2X02G00SA	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket	4	0.126 "	3.2 mm	Gold	UL94 V-0	2	Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole	2 mm	0.079 in
Oupiin 2141-1X04G00SB	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket	4	0.126 "	3.2 mm	Gold	UL94 V-0		Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole			1
Oupiin 2141-2X25G00SA	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket	50	0.126 "	3.2 mm	Gold	UL94 V-0	2	Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole	2 mm	0.079 in
Oupiin 2141-2X16G00SA	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket		0.126 "	3.2 mm	Gold	UL94 V-0	2	Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole	2 mm	0.079 in
Oupiin 2141-1X05G00SB	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket	5	0.126 "	3.2 mm	Gold	UL94 V-0		Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole			1

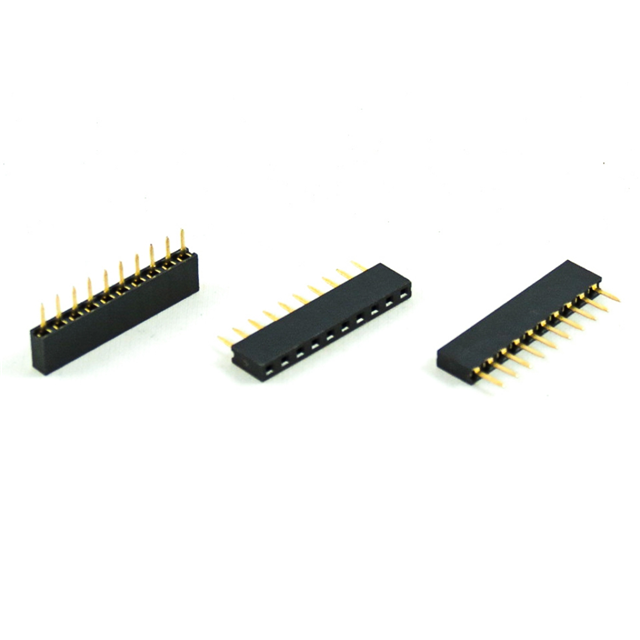

Oupiin 2141-1X20G00SA	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket	20	0.126 "	3.2 mm	Gold	UL94 V-0		Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole			1
Oupiin 2141-1X10G00SA	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket	10	0.126 "	3.2 mm	Gold	UL94 V-0		Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole			1
Oupiin 2141-2X07G00SA	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket	14	0.126 "	3.2 mm	Gold	UL94 V-0	2	Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole	2 mm	0.079 in
Oupiin 2141-1X06G00SB	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket	6	0.126 "	3.2 mm	Gold	UL94 V-0		Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole			1
Oupiin 2141-1X08G00SA	Phosphor Bronze	Square	Flash	Liquid Crystal Polymer (LCP)	Flash	All	Gold	Black	0.177 in	4.5 mm	Female Socket	8	0.126 "	3.2 mm	Gold	UL94 V-0		Socket	-55 C	105 ░C	0.079 "	2 mm	Solder	Push-Pull	Through Hole			1
