32K441 Series
Manufacturer: Rosenberger
Beta
⌘K

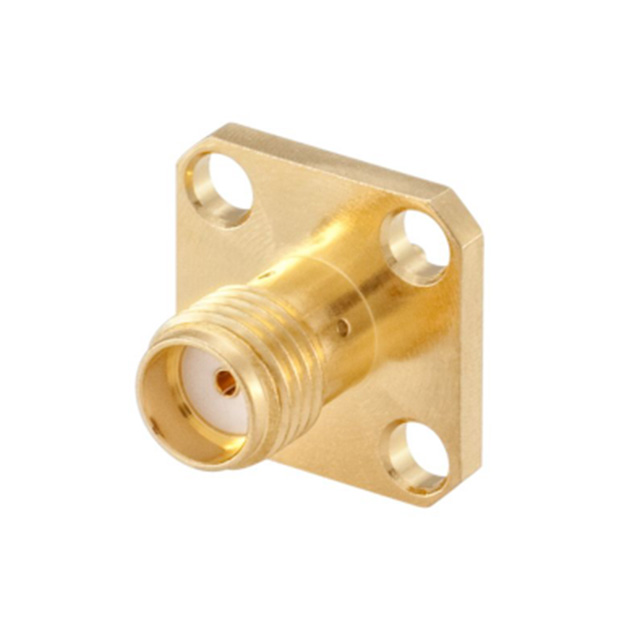

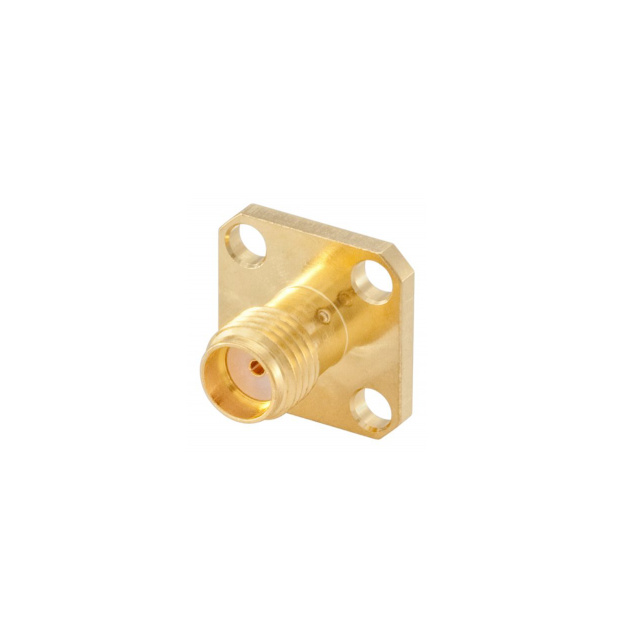

CONN SMA JACK STR 50OHM SOLDER
| Part | Voltage Rating | Body Finish | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Contact Termination | Connector Type | Mounting Type | Number of Ports | Shield Termination | Connector Style | Frequency - Max [Max] | Mounting Feature | Center Contact Material | Fastening Type | Housing Color | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 480 V | Gold | Brass | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Solder | Female Socket Jack | Panel Mount | 1 | Solder | SMA | 18 GHz | Flange | Beryllium Copper | Threaded | Gold | 50 Ohms |
 Rosenberger | 480 V | Gold | Brass | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Solder | Female Socket Jack | Panel Mount | 1 | Solder | SMA | 12.4 GHz | Flange | Beryllium Copper | Threaded | Gold | 50 Ohms |
