770973 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

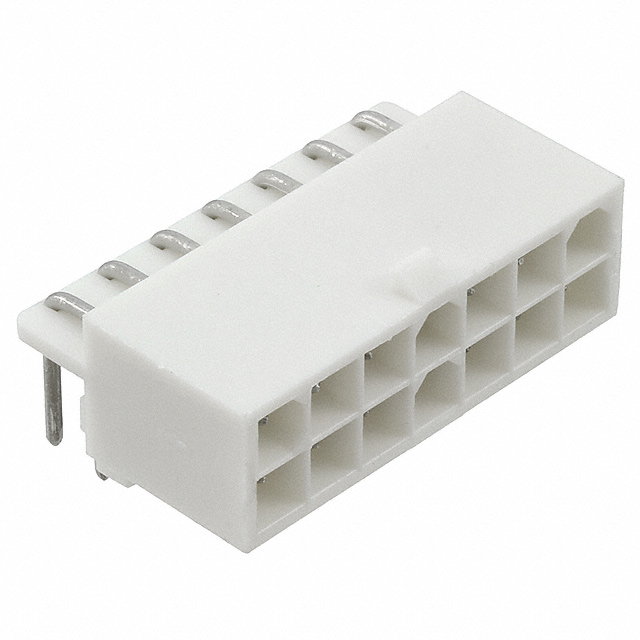

CONN HEADER R/A 14POS 4.14MM
| Part | Applications | Contact Finish Thickness - Post | Contact Shape | Features | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Type | Contact Length - Post | Contact Length - Post | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Style | Connector Type | Contact Finish - Post | Voltage Rating | Pitch - Mating | Pitch - Mating | Shrouding | Number of Positions | Insulation Color | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Current Rating (Amps) | Contact Finish - Mating | Insulation Height | Insulation Height | Insulation Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Circular | Board Lock | UL94 V-0 | 85 °C | -20 ░C | Brass | Male Pin | 3.68 mm | 0.145 in | 2 | 4.14 mm | 0.163 in | Locking Ramp | Board to Cable/Wire | Header | Tin-Lead | 600 VAC | 0.163 in | 4.14 mm | Shrouded - 4 Wall | 14 | White | All | 150 Áin | 3.81 Ám | Solder | Varies by Wire Gauge | Tin-Lead | 9.8 mm | 0.386 in | Nylon Polyamide (PA) | Right Angle Through Hole |
