DH-20G50 Series

Catalog

CBL ASY IPEX MHF1-SMA P-J 3.937"

Part	Style	1st Connector	Color	Overall Impedance	Length	Length	2nd Connector	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	Length [x]	Length [x]

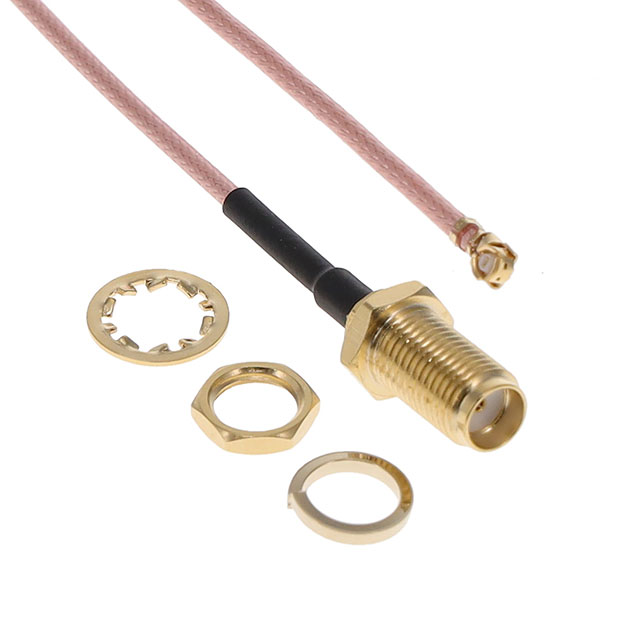

Cvilux USA DH-20G50016	I-PEX MHF1 to SMA IPEX MHF1 to SMA	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	Brown	50 Ohms	3.937 in	100 mm	SMA Jack	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)

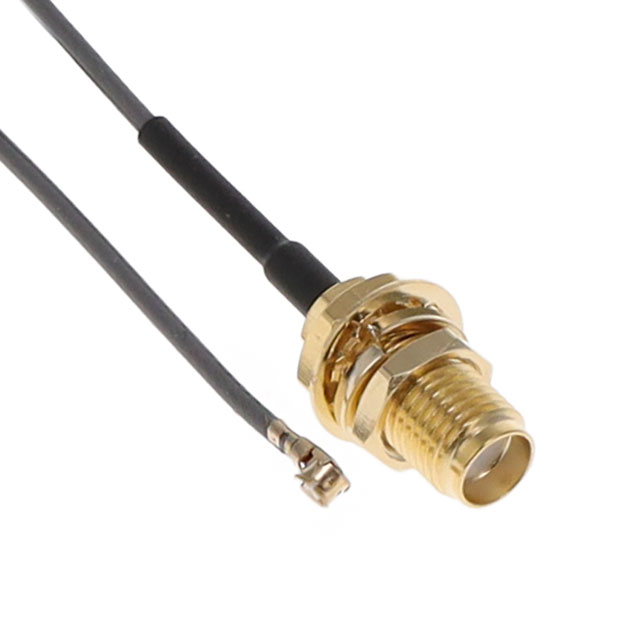

Cvilux USA DH-20G50013	I-PEX MHF1 to SMA IPEX MHF1 to SMA	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	Gray	50 Ohms	3.937 in	100 mm	SMA Jack	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50014	I-PEX MHF1 to SMA IPEX MHF1 to SMA	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	Gray	50 Ohms	5.906 in	150 mm	SMA Jack	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)

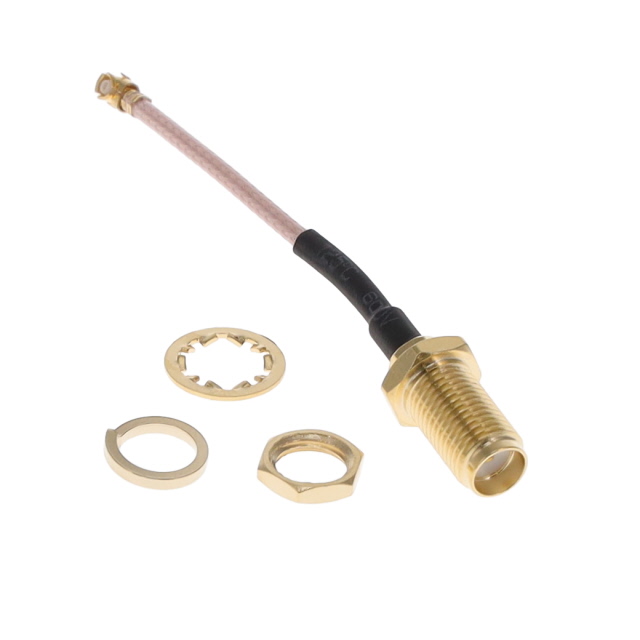

Cvilux USA DH-20G50015	I-PEX MHF1 to SMA IPEX MHF1 to SMA	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	Brown	50 Ohms			SMA Jack	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	50 mm	1.969 in

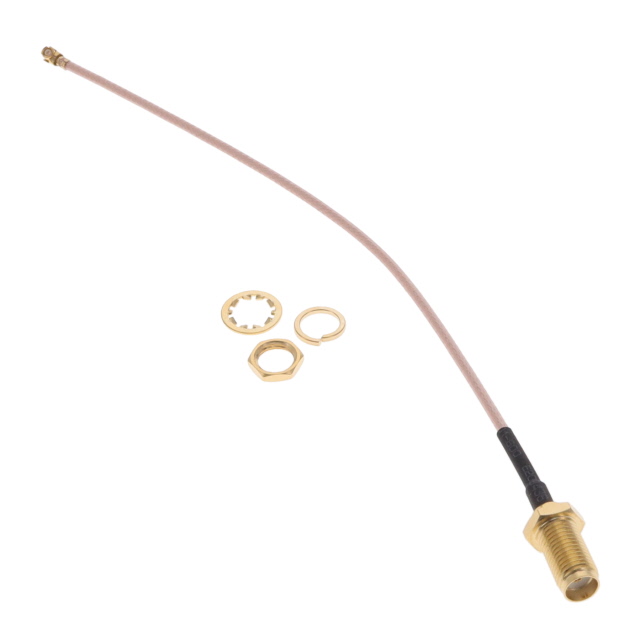

Cvilux USA DH-20G50017	I-PEX MHF1 to SMA IPEX MHF1 to SMA	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	Brown	50 Ohms	5.906 in	150 mm	SMA Plug	Male	Female	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50010	I-PEX MHF1 to SMA IPEX MHF1 to SMA	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	Gray	50 Ohms	3.937 in	100 mm	SMA Jack	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)

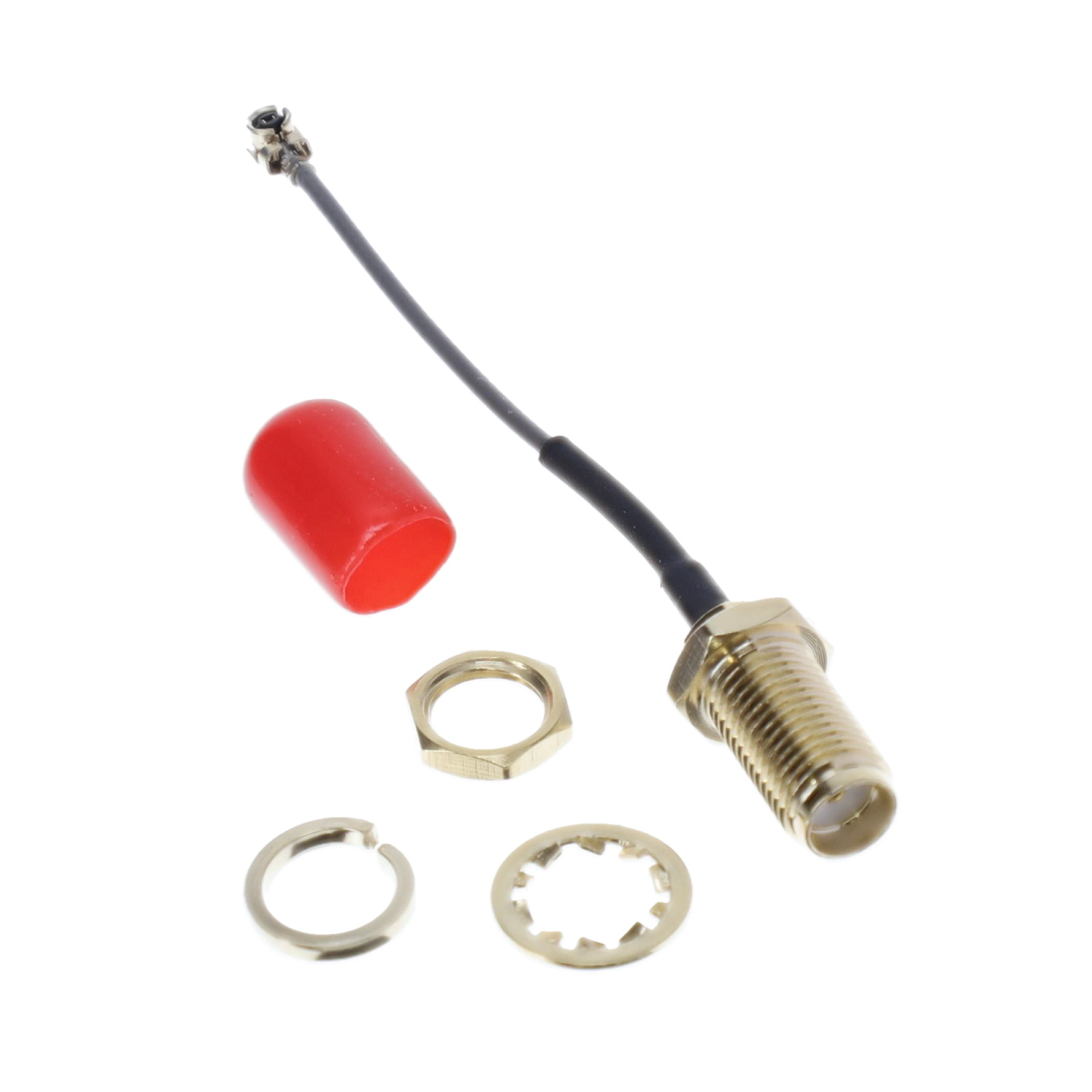

Cvilux USA DH-20G50009	I-PEX MHF1 to SMA	I-PEX MHF1 Plug Right Angle	Gray	50 Ohms			SMA Jack	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	50 mm	1.969 in

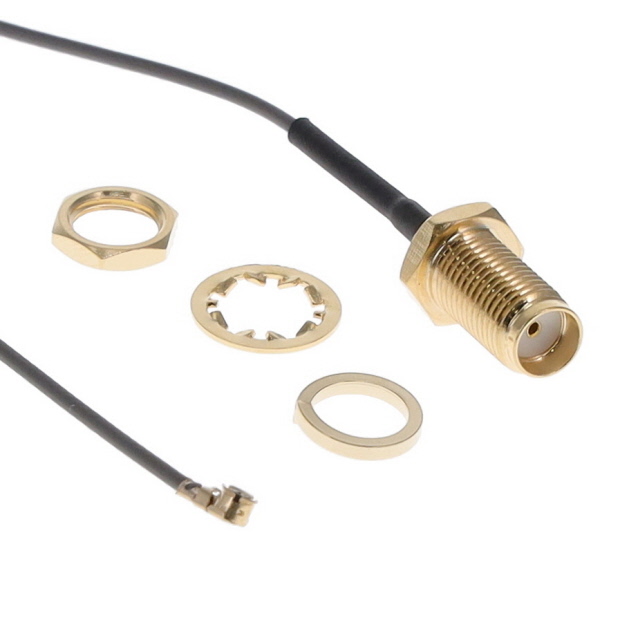

Cvilux USA DH-20G50011	I-PEX MHF1 to SMA IPEX MHF1 to SMA	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	Gray	50 Ohms	5.906 in	150 mm	SMA Jack	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50012	I-PEX MHF1 to SMA IPEX MHF1 to SMA	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	Gray	50 Ohms			SMA Jack	Female	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	50 mm	1.969 in
