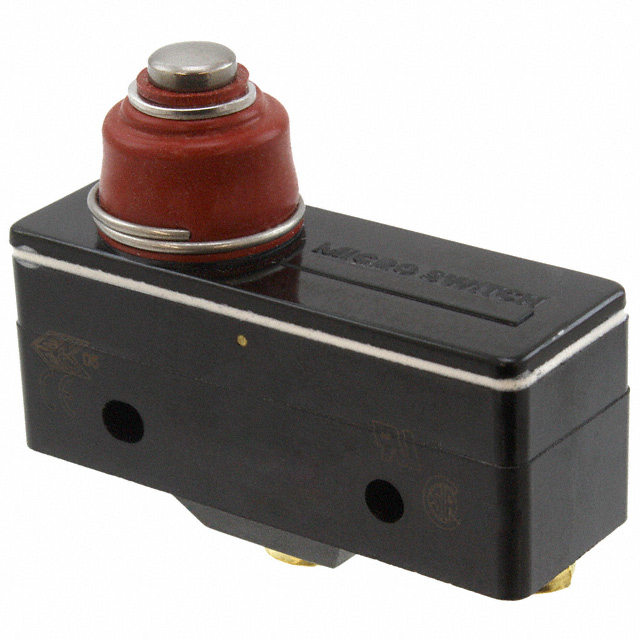

BA-2RP Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 20A 125V
| Part | Mounting Type | Actuator Type | Operating Force [Min] | Operating Force [Max] | Voltage Rating - DC | Mechanical Life | Voltage Rating - AC | Termination Style | Current Rating (Amps) | Overtravel | Overtravel | Circuit | Operating Position | Operating Position | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Release Force | Pretravel | Pretravel | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Chassis Mount | Round (Pin Plunger) | 397 gf | 624 gf | 125 VDC | 20000000 Cycles | 125 V | Screw Terminal | 20 A 500 mA | 0.25 mm | 0.01 in | SPDT | 0.64 in | 16.3 mm | 85 °C | -55 °C | On-Mom | 283 gf | 0.05 in | 1.27 mm | 0.002 in | 0.05 mm |
