305-026 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 26POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Gender	Contact Finish Thickness	Contact Finish Thickness	Read Out	Pitch	Pitch	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Positions/Bay/Row	Mounting Type	Contact Finish	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows [custom]	Contact Material	Features

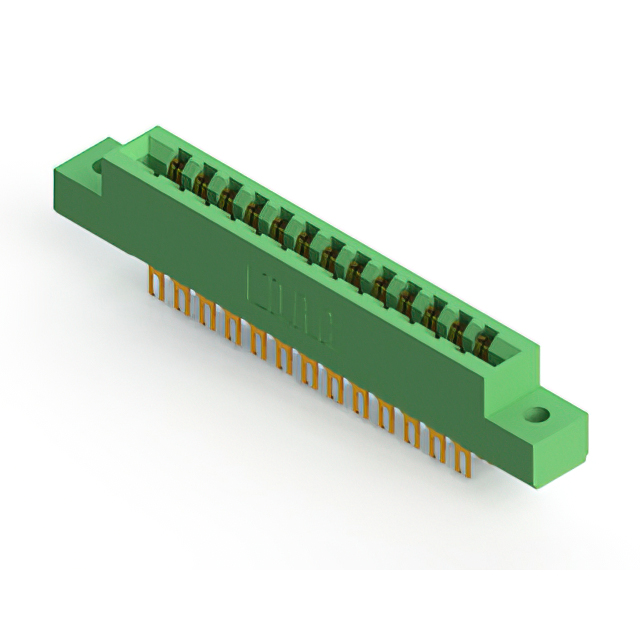

EDAC Inc. 305-026-500-202	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	13	Panel Mount	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy

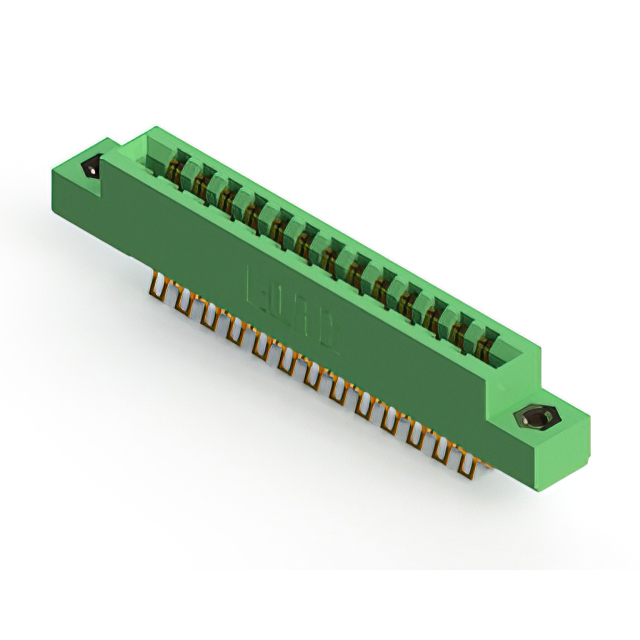

EDAC Inc. 305-026-555-508	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	13	Board Edge Straddle Mount	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy	Card Extender

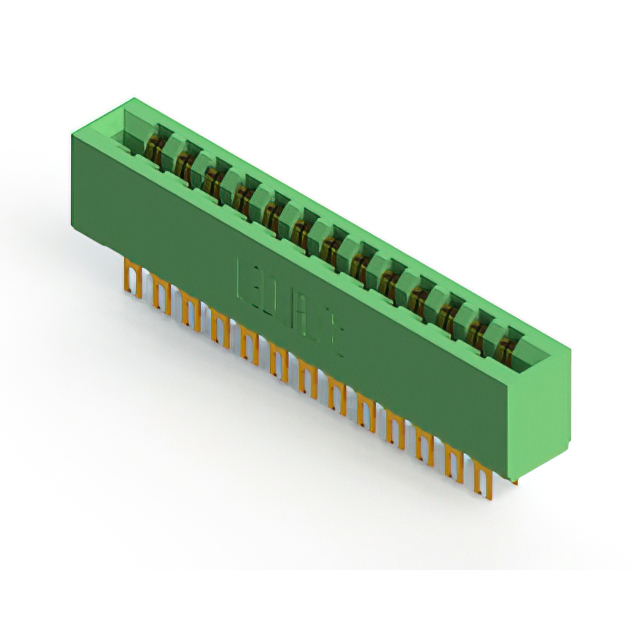

EDAC Inc. 305-026-500-501	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in				Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	13	Free Hanging (In-Line)	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy

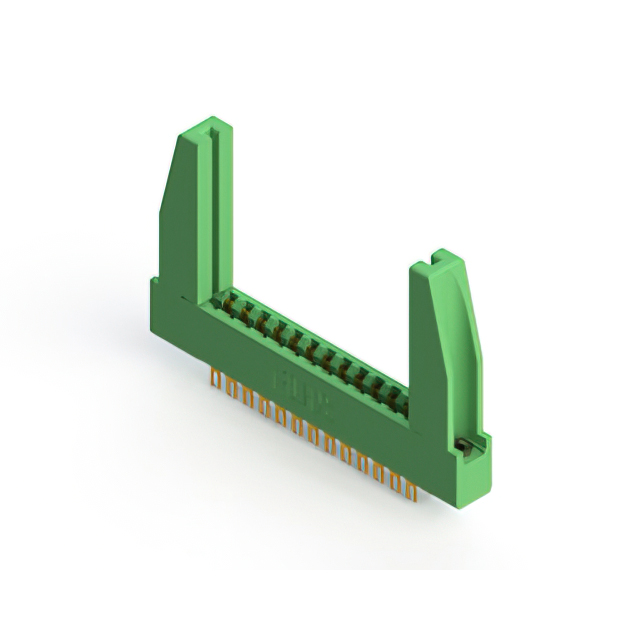

EDAC Inc. 305-026-500-578	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	13	Panel Mount	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy
EDAC Inc. 305-026-555-268	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	13	Board Edge Straddle Mount	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy	Card Extender Card Guides

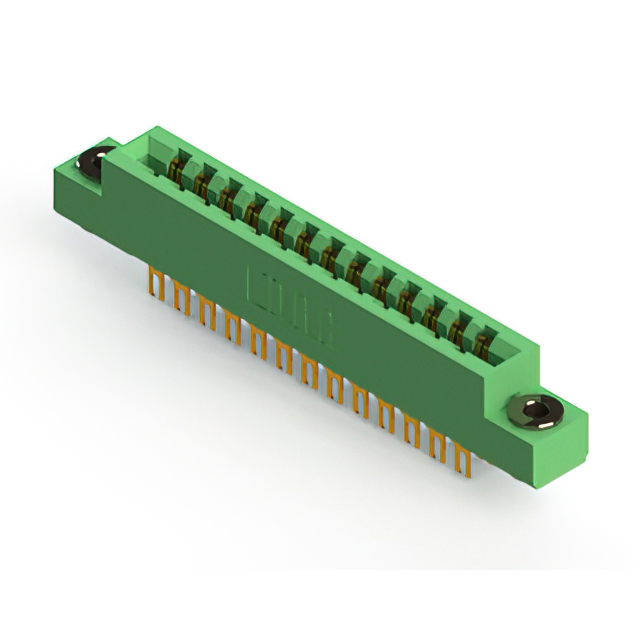

EDAC Inc. 305-026-500-503	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	13	Panel Mount	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy
EDAC Inc. 305-026-555-568	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	13	Board Edge Straddle Mount	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy	Card Extender Card Guides

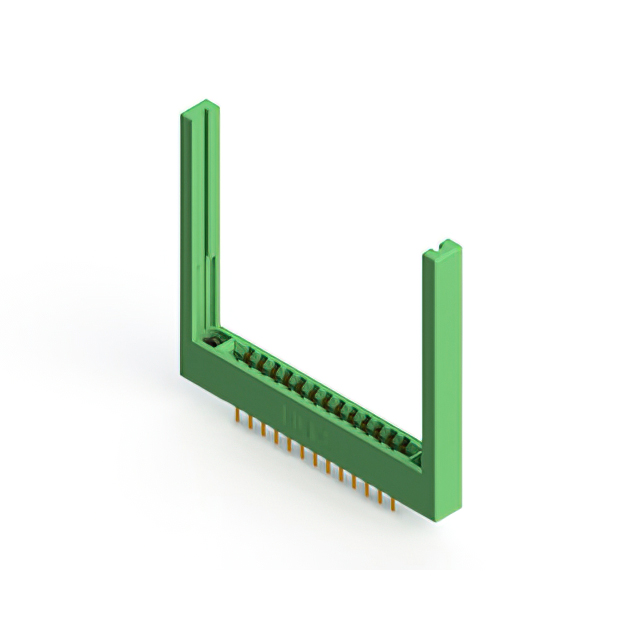

EDAC Inc. 305-026-520-268	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	13	Panel Mount Through Hole	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy

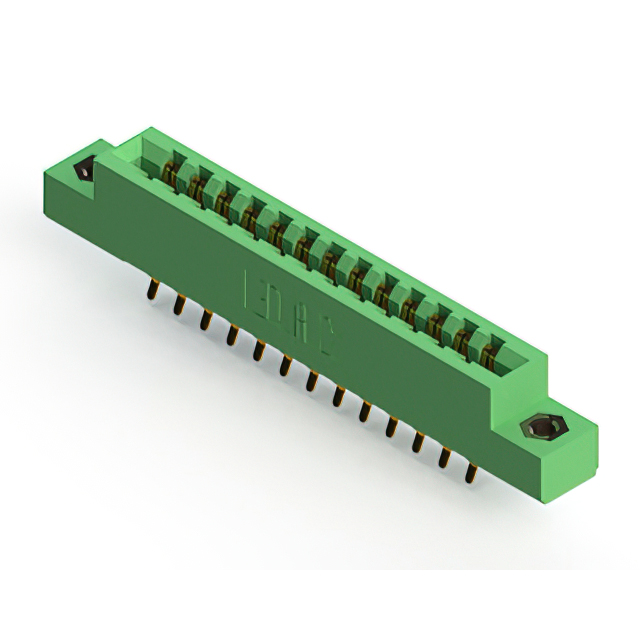

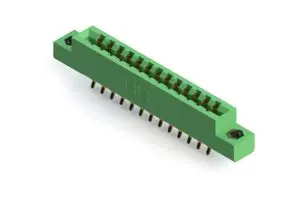

EDAC Inc. 305-026-556-207	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	13	Board Edge Straddle Mount	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy	Card Extender

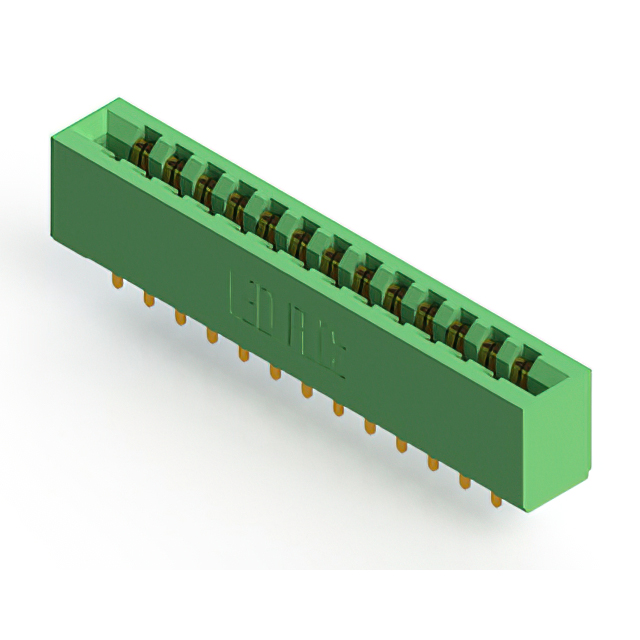

EDAC Inc. 305-026-521-201	2	Polyester Thermoplastic	Female	0.25 Ám	10 Áin	Dual	3.96 mm	0.156 in				Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	13	Through Hole	Gold	26	Green	-40 C	105 ░C	Semi Bellows	2	Copper Alloy
