110-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC SKT DBL

Part	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Type	Type	Type	Housing Material	Number of Positions or Pins (Grid)	Mounting Type	Contact Material - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish - Mating	Contact Material - Post	Pitch - Post	Pitch - Post	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 110-13-320-61-001000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold	7.62 mm	0.3 in	DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	20	Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm

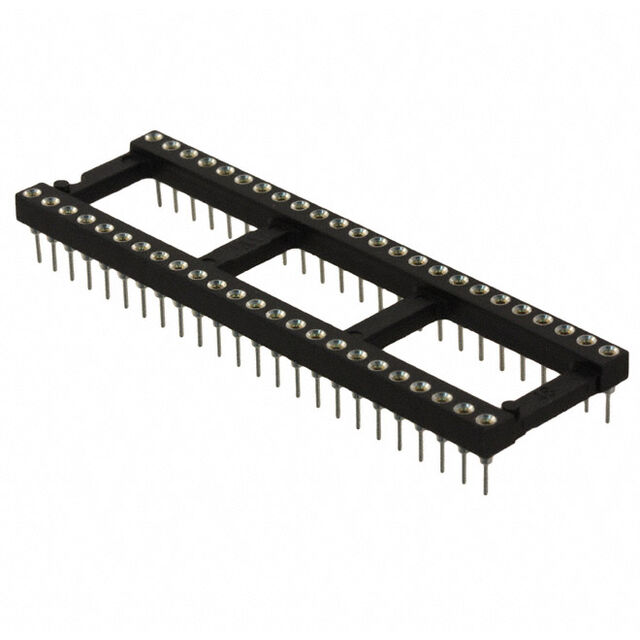

Mill-Max Manufacturing Corp. 110-13-648-41-001000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold			DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm	15.24 mm	0.6 in	2	48	24

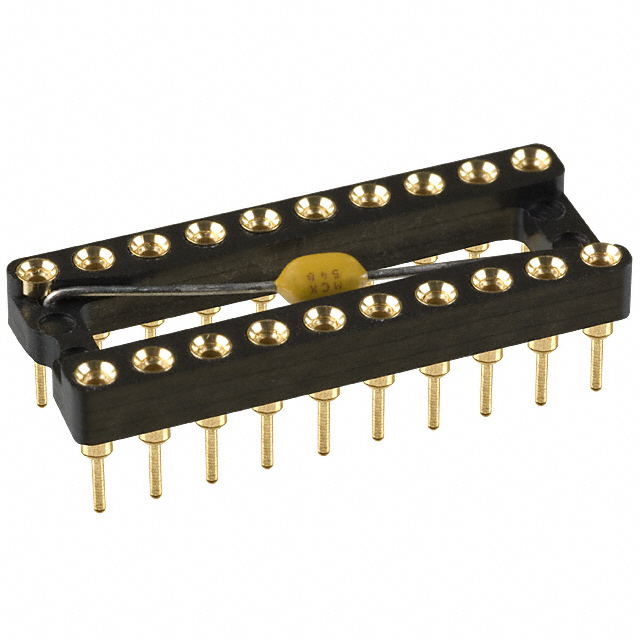

Mill-Max Manufacturing Corp. 110-13-320-41-801000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold	7.62 mm	0.3 in	DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	20	Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Decoupling Capacitor Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 110-13-632-61-001000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold			DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	32	Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm	15.24 mm	0.6 in

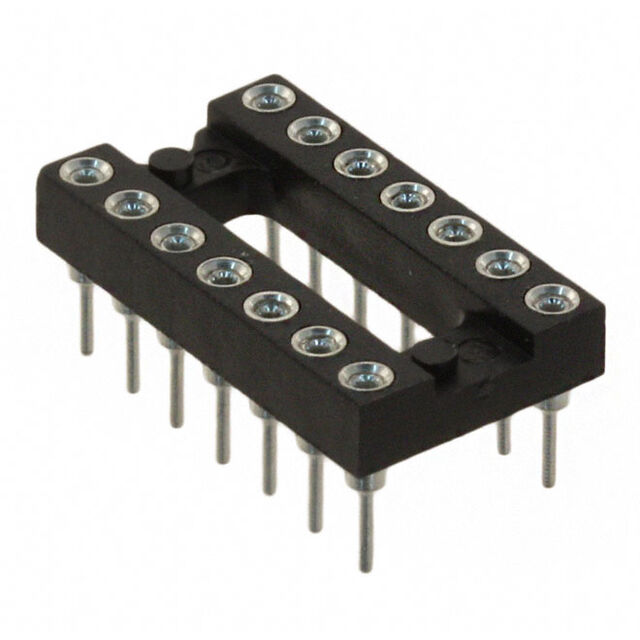

Mill-Max Manufacturing Corp. 110-13-314-61-001000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold	7.62 mm	0.3 in	DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm

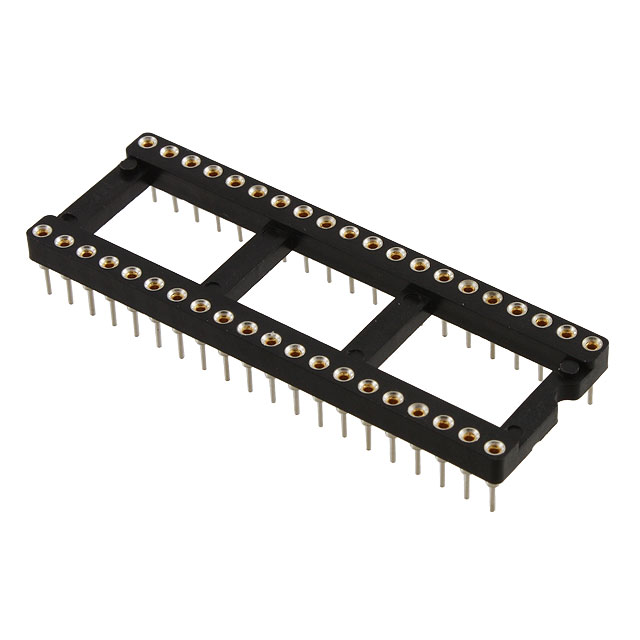

Mill-Max Manufacturing Corp. 110-13-640-41-001000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold			DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	40	Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-13-316-61-001000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold	7.62 mm	0.3 in	DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	16	Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm						2	8
Mill-Max Manufacturing Corp. 110-13-316-41-001000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold	7.62 mm	0.3 in	DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	16	Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm						2	8
Mill-Max Manufacturing Corp. 110-13-314-61-801000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold	7.62 mm	0.3 in	DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Decoupling Capacitor Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm								UL94 V-0
Mill-Max Manufacturing Corp. 110-13-304-41-001000	3 A	0.125 in	3.18 mm	0.76 Ám	30 Áin	Gold	7.62 mm	0.3 in	DIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4 pins	Through Hole	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	-55 C	125 °C	Open Frame	Gold	Brass Alloy	0.1 in	2.54 mm									2 x 2
