SQJA86 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

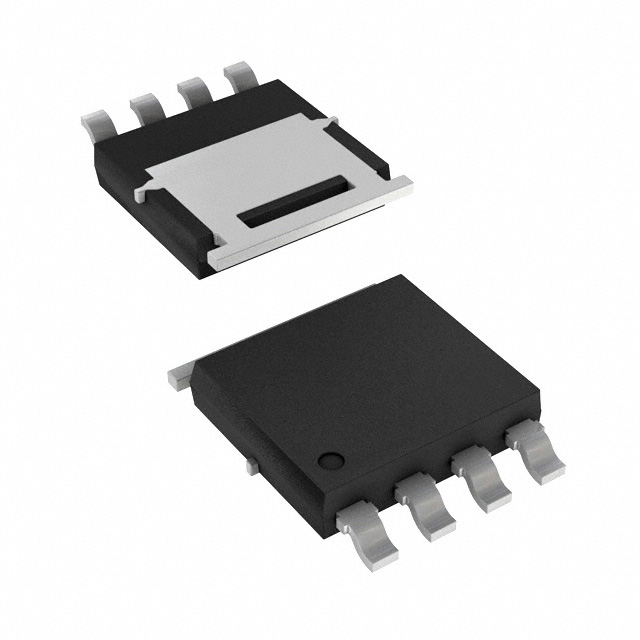

MOSFET N-CH 80V 30A PPAK SO-8
| Part | Rds On (Max) @ Id, Vgs [Max] | Drain to Source Voltage (Vdss) | FET Type | Package / Case | Power Dissipation (Max) | Mounting Type | Vgs(th) (Max) @ Id | Current - Continuous Drain (Id) @ 25°C | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Drive Voltage (Max Rds On, Min Rds On) | Qualification | Supplier Device Package | Technology | Grade | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 19 mOhm | 80 V | N-Channel | PowerPAK® SO-8 | 48 W | Surface Mount | 2.5 V | 30 A | 32 nC | 20 V | 1400 pF | 4.5 V 10 V | AEC-Q101 | PowerPAK® SO-8 | MOSFET (Metal Oxide) | Automotive | -55 °C | 175 ░C |
