845-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 10POS 0.100
| Part | Termination Rows | Material - Insulation | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Pitch | Pitch | Contact Type | Card Type | Number of Rows | Contact Material | Contact Finish | Number of Positions/Bay/Row | Gender | Contact Finish Thickness | Contact Finish Thickness | Color | Flange Feature | Termination Rows [custom] | Features | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

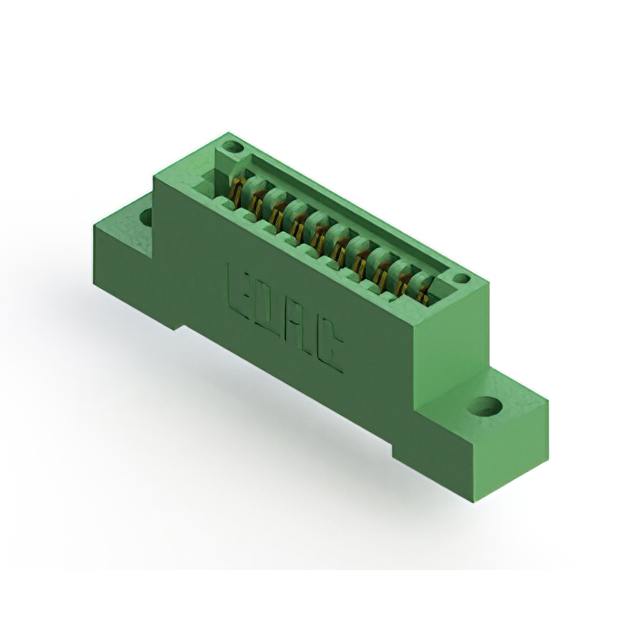

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Single | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm | Solder | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 1 | Copper Alloy | Gold | 10 | Female | 0.25 Ám | 10 Áin | Green | ||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 1 | Copper Alloy | Gold | 10 | Female | 0.25 Ám | 10 Áin | Green | Flush Mount M3 Threaded Insert Top Opening | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Dual | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.1 " | 2.54 mm | Cantilever | Non Specified - Dual Edge | Copper Alloy | Gold | 5 | Female | 0.25 Ám | 10 Áin | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Card Extender | 2 | ||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | Wire Wrap | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 1 | Copper Alloy | Gold | 10 | Female | 0.25 Ám | 10 Áin | Green | Flush Mount Side Opening Unthreaded | |||

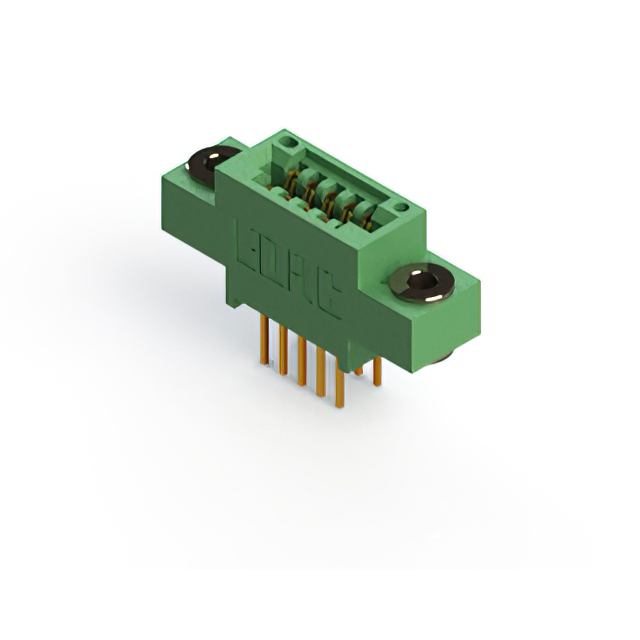

 EDAC Inc. | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Dual | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | Solder Eyelet(s) | 0.1 " | 2.54 mm | Cantilever | Non Specified - Dual Edge | Copper Alloy | Gold | 5 | Female | 0.25 Ám | 10 Áin | Green | Floating Bobbin Top Mount Opening | 2 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Dual | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.1 " | 2.54 mm | Cantilever | Non Specified - Dual Edge | Copper Alloy | Gold | 5 | Female | 0.25 Ám | 10 Áin | Green | 4-40 Threaded Insert Top Mount Opening | 2 | Card Extender | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Dual | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | Wire Wrap | 0.1 " | 2.54 mm | Cantilever | Non Specified - Dual Edge | Copper Alloy | Gold | 5 | Female | 0.25 Ám | 10 Áin | Green | Floating Bobbin Top Mount Opening | 2 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Dual | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | 0.1 " | 2.54 mm | Cantilever | Non Specified - Dual Edge | Copper Alloy | Gold | 5 | Female | 0.25 Ám | 10 Áin | Green | 2 | 2 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Dual | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.1 " | 2.54 mm | Cantilever | Non Specified - Dual Edge | Copper Alloy | Gold | 5 | Female | 0.25 Ám | 10 Áin | Green | M3 Threaded Insert Top Mount Opening | 2 | 2 | |||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | Solder | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 1 | Copper Alloy | Gold | 10 | Female | 0.25 Ám | 10 Áin | Green | Flush Mount Top Opening Unthreaded |
