DF11 Series

Catalog

AC POWER ENTRY MODULES DF11 .ABDBP150C0 15A

Part	Termination	Termination	Termination	Ingress Protection	Current Rating - Circuit Breaker	Material Flammability Rating	Switch Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Appliance Inlet	Connector Style	Approval Agency	Filter Type	Connector Type	Mounting Type	Voltage Rating - Appliance Inlet	Panel Thickness	Panel Thickness
SCHURTER Inc. DF11.1682.0010.01	6.3 mm	Quick Connect	0.25 "	IP40	15 A	UL94 V-0	Circuit Breaker Switch On-Off	29 mm	73.5 mm	10 A	IEC 320-C14	cULus ENEC	Unfiltered - Commercial	Receptacle Male Blades - Module	Flange Panel Mount	250 VAC

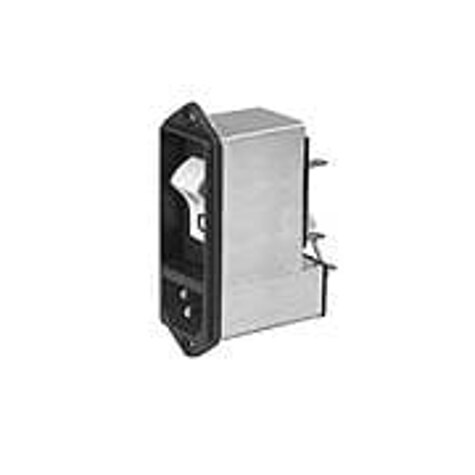

SCHURTER Inc. DF11.1927.0013.01	6.3 mm	Quick Connect	0.25 "	IP40	7 A	UL94 V-0	Circuit Breaker Switch On-Off	29 mm	73.5 mm	10 A	IEC 320-C14	cULus ENEC	Unfiltered - Commercial	Receptacle Male Blades - Module	Panel Mount Snap-In	250 VAC	0.079 in	2 mm
SCHURTER Inc. DF11.0885.0010.01	6.3 mm	Quick Connect	0.25 "	IP40	15 A	UL94 V-0	Circuit Breaker Switch On-Off	29 mm	73.5 mm	10 A	IEC 320-C14	cULus ENEC	Unfiltered - Commercial	Receptacle Male Blades - Module	Flange Panel Mount	250 VAC
SCHURTER Inc. DF11.0879.0014.02	6.3 mm	Quick Connect	0.25 "	IP40	2.5 A	UL94 V-0	Circuit Breaker Switch On-Off	29 mm	73.5 mm	10 A	IEC 320-C14	cULus ENEC	Unfiltered - Commercial	Receptacle Male Blades - Module	Panel Mount Snap-In	250 VAC	0.098 in	2.5 mm
SCHURTER Inc. DF11.2347.0012.01	6.3 mm	Quick Connect	0.25 "	IP40	10 A	UL94 V-0	Circuit Breaker Illuminated Switch On-Off	29 mm	73.5 mm	10 A	IEC 320-C14	cULus ENEC	Unfiltered - Commercial	Receptacle Male Blades - Module	Panel Mount Snap-In	250 VAC	0.059 in	1.5 mm

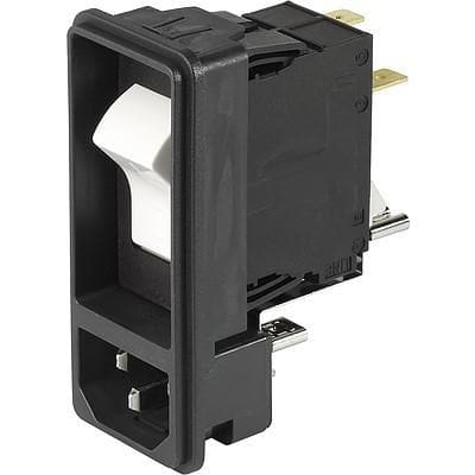

SCHURTER Inc. DF11.1486.0010.02	6.3 mm	Quick Connect	0.25 "	IP40	3 A	UL94 V-0	Circuit Breaker Switch On-Off	29 mm	73.5 mm	10 A	IEC 320-C14	cULus ENEC	Unfiltered - Commercial	Receptacle Male Blades - Module	Flange Panel Mount	250 VAC
