EVO Series

Catalog

HEAVY DUTY POWER CONNECTORS EVO CABLE HOOD B10 W/DOUBLE LATCH

Part	Housing Color	Size	Style	Ingress Protection	Lock Location	Housing Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Accessory Type	For Use With/Related Products	Specifications	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Thread Size	Size / Dimension [y]

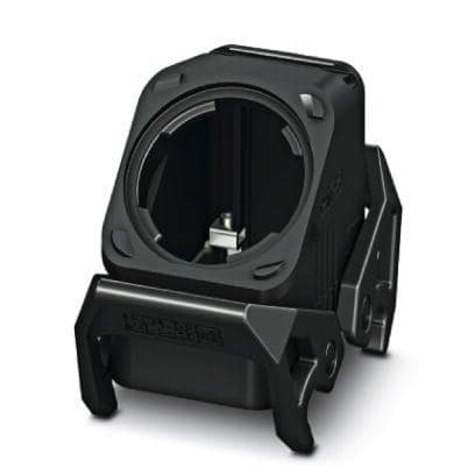

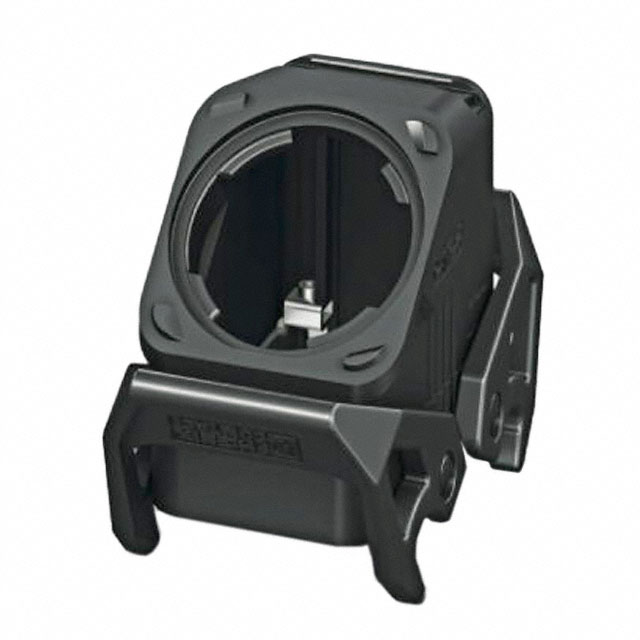

Phoenix Contact 1407630	Black	B10	Side or Top Entry	IP66 IP68 IP69K	Locking Clip (2) on Hood	Polyamide (PA) Nylon	Hood	125 °C	-40 C
Phoenix Contact 1414265										Adapter	HEAVYCON® Housings	NPT 3/4" Thread

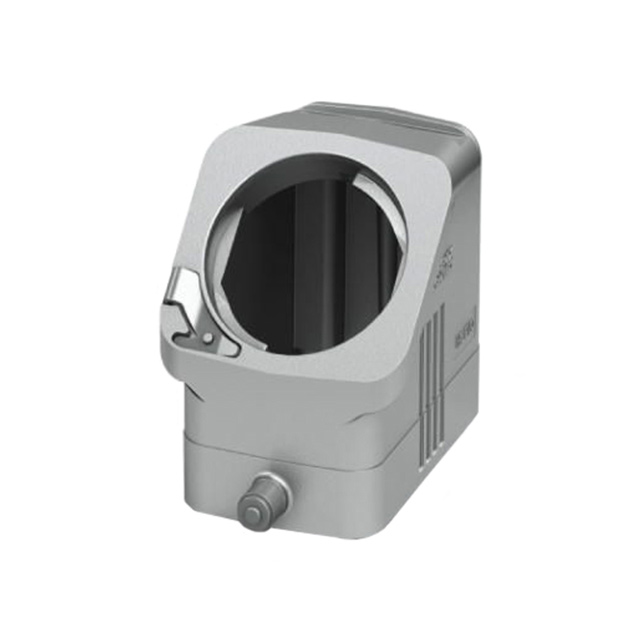

Phoenix Contact 1411456		B10	Side Entry	IP66 IP69K	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	125 °C	-40 C				Salt Water Resistant	73 mm	64 mm	44 mm	2.52 in	2.874 "	1.732 in

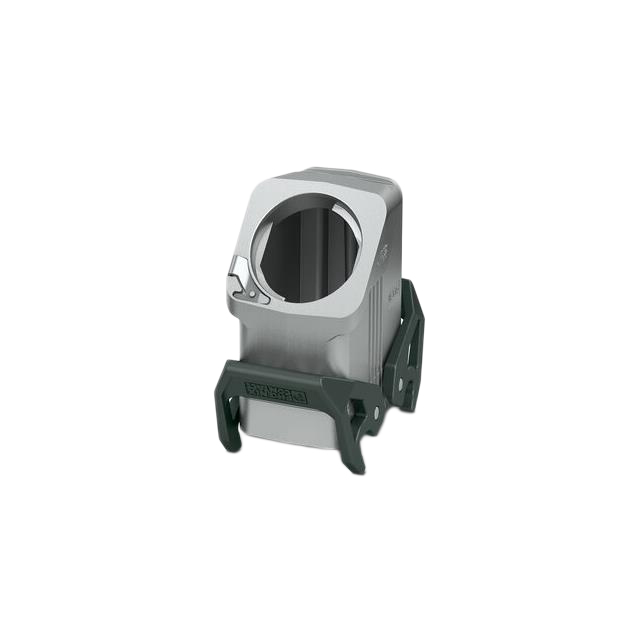

Phoenix Contact 1411454		B10	Side Entry	IP66 IP69K	Locking Clip (2) on Hood	Aluminum Die Cast	Hood	125 °C	-40 C				Salt Water Resistant	73 mm	80 mm	44 mm	3.15 in	2.874 "	1.732 in

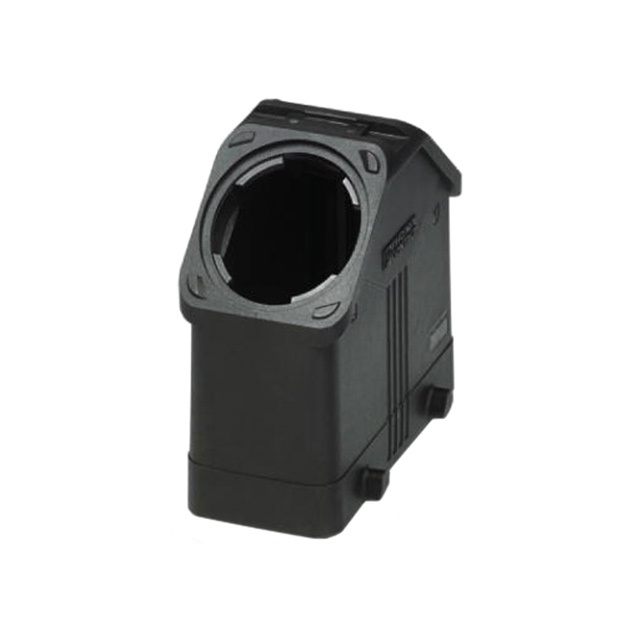

Phoenix Contact 1411496	Black	B16	Side Entry Dual		Locking Clip (2) on Base Bottom	Polyamide (PA) Nylon	Hood	125 °C	-40 C					93.5 mm	87 mm	44 mm	3.425 in	3.681 in	1.732 in

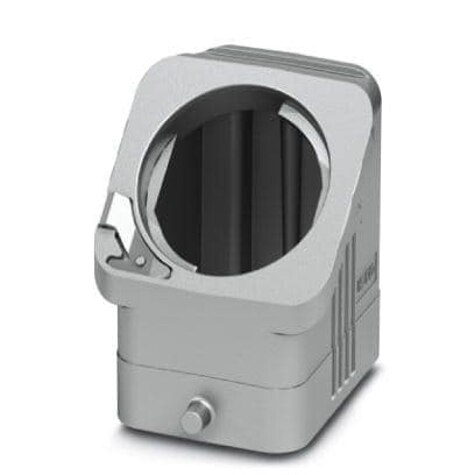

Phoenix Contact 1411448		B6	Side Entry	IP66 IP69K	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Hood	125 °C	-40 C				Salt Water Resistant	60 mm	64 mm	44 mm	2.52 in	2.362 in	1.732 in

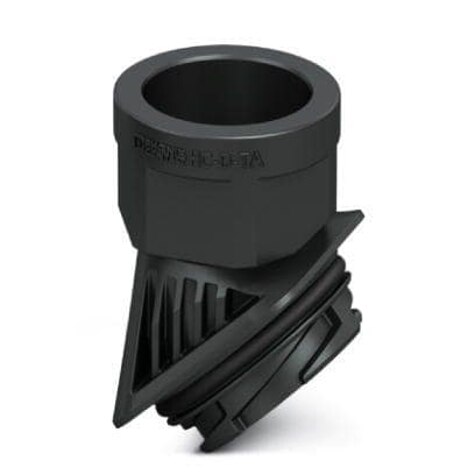

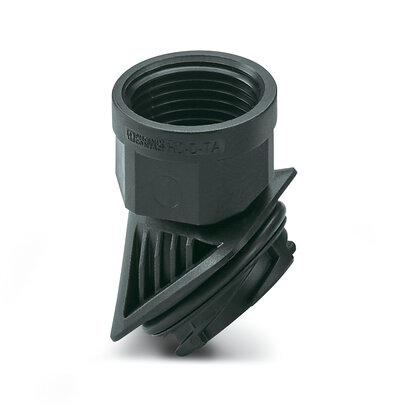

Phoenix Contact 1411354										Thread Adapter	Heavycon® EVO D Housings	NPT 3/4" Thread								IP66 - Dust Tight Water Resistant

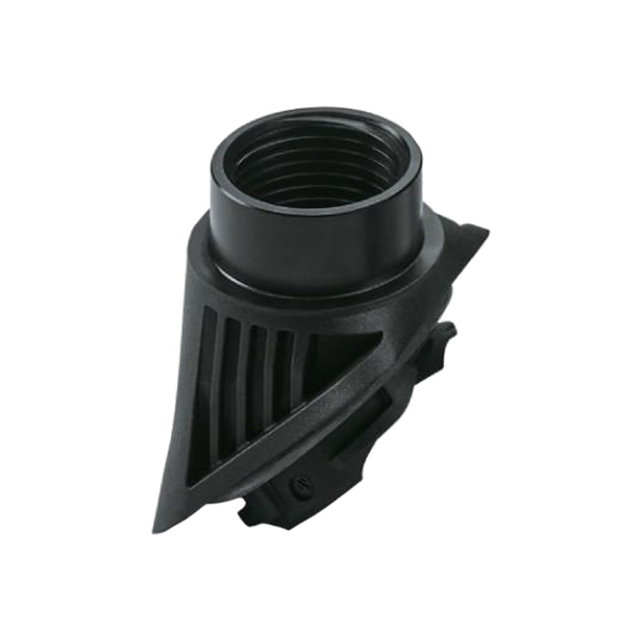

Phoenix Contact 1414252										Thread Adapter	HEAVYCON® Housings	NPT 3/4" Thread
Phoenix Contact 1407619	Black	B6	Side or Top Entry	IP66 IP68 IP69K	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon	Hood	125 °C	-40 C					60 mm	60.5 mm	49 mm	2.382 "	2.362 in	1.929 "
Phoenix Contact 1424437	Black		Bottom Entry	IP66 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Polyamide (PA) Nylon	Base - Panel Mount	125 °C	-40 C					68.6 mm			0.945 " 24 mm	2.701 in	1.598 "		M1	40.6 mm
