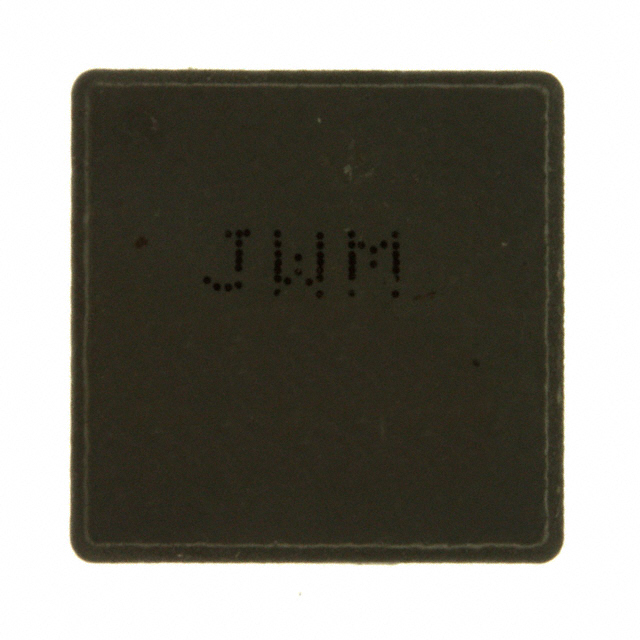

PM12651S Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTORS - SMD 9.0UH 20%
| Part | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Type | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Shielding | Inductance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Material - Core | Current Rating (Amps) | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 kHz | 22.5 mOhm | -55 C | 150 °C | 20 % | Drum Core Wirewound | Nonstandard | 0.547 in | 13.9 mm | 0.531 in | 13.5 mm | Shielded | 9 µH | 0.232 " | 5.9 mm | Surface Mount | Iron | 10 A | 18 A |
 Bourns Inc. | 100 kHz | 7.2 mOhm | -40 C | 150 °C | 20 % | Wirewound | Nonstandard | 0.547 in | 13.9 mm | 0.531 in | 13.5 mm | Shielded | 4.7 ÁH | 0.232 " | 5.9 mm | Surface Mount | 12 Amps |
