DTE6 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 10A 125V
| Part | Overtravel | Overtravel | Switch Function | Operating Position | Operating Position | Voltage Rating - DC | Actuator Type | Termination Style | Circuit | Operating Force [Max] | Operating Force [Min] | Ingress Protection | Differential Travel | Differential Travel | Pretravel | Pretravel | Release Force | Voltage Rating - AC | Current Rating (Amps) | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

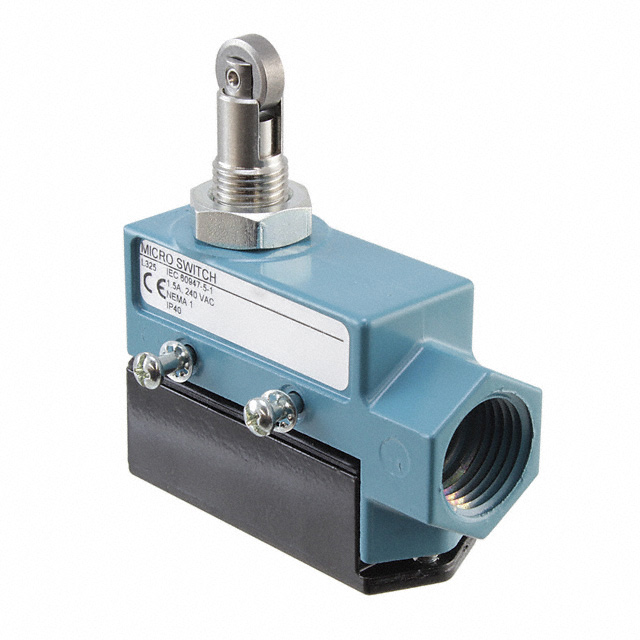

 Honeywell Sensing and Productivity Solutions | 0.125 in | 3.2 mm | On-Mom | 49.6 mm | 1.953 in | 125 VDC | Roller Plunger | Screw Terminal | DPDT | 1361 gf | 680 gf | IP40 | 1.5 mm | 0.06 " | 3.6 mm | 0.14 in | 227 gf | 125 V | 10 A 300 mA | ||

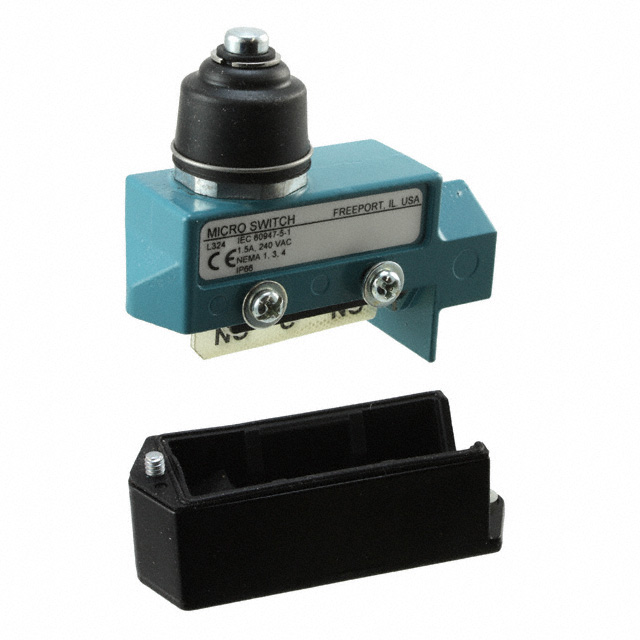

 Honeywell Sensing and Productivity Solutions | 0.125 in | 3.2 mm | On-Mom | 46 mm | 1.812 in | 125 VDC | Round (Pin Plunger) | Screw Terminal | DPDT | 1673 gf | 737 gf | IP66 | 1.5 mm | 0.06 " | 2.8 mm | 0.11 in | 125 V | 10 A 300 mA | Actuator Seal Boot | Chassis Mount | |
Honeywell Sensing and Productivity Solutions | |||||||||||||||||||||

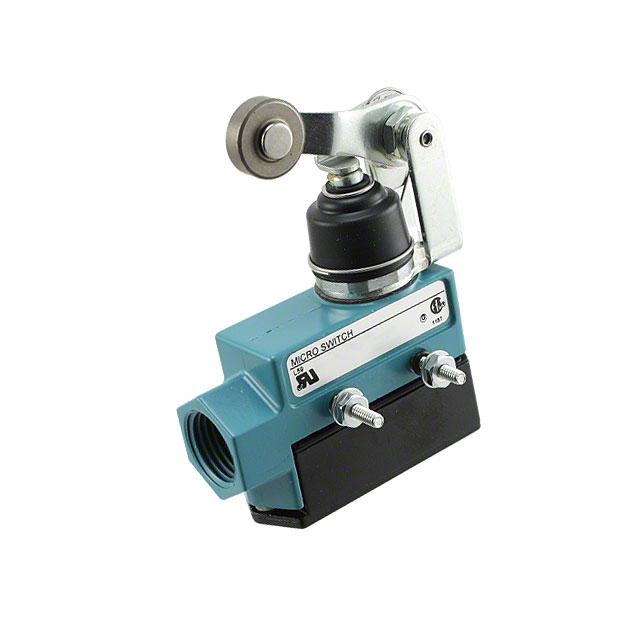

 Honeywell Sensing and Productivity Solutions | 0.219 in | 5.6 mm | On-Mom | 125 VDC | Lever Roller | Screw Terminal | DPDT | IP54 - Dust Protected Water Resistant | 4.2 mm | 0.165 in | 6.75 mm | 0.266 in | 170 gf | 125 V | 10 A 300 mA | Actuator Seal Boot | Chassis Mount |
