SI88341 Series

Catalog

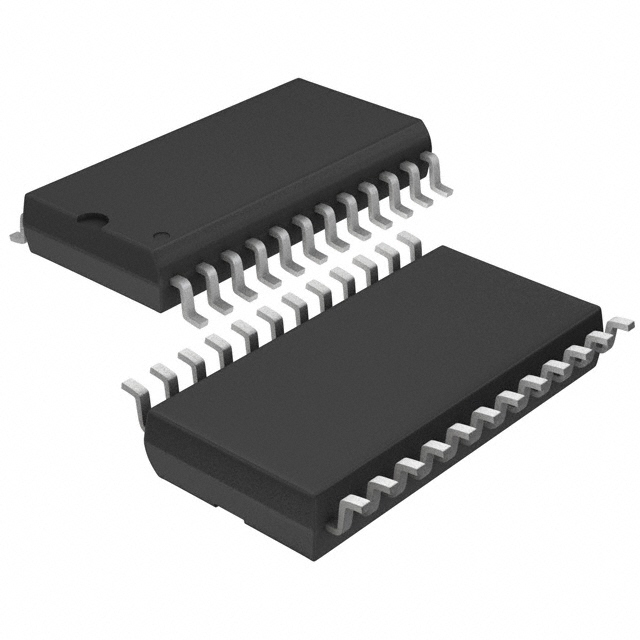

DGTL ISOLTR 5KV 4CH GP 24-SOIC

Part	Isolated Power	Number of Channels [custom]	Pulse Width Distortion (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Type	Package / Case	Package / Case [custom]	Package / Case [custom]	Common Mode Transient Immunity (Min) [Min]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Data Rate	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Channel Type	Supplier Device Package	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Pulse Width Distortion (Max)	Propagation Delay tpLH / tpHL (Max)	Propagation Delay tpLH / tpHL (Max) [Max]
Skyworks Solutions Inc. SI88341BC-ISR		4	7 ns	125 °C	-40 C	2.5 ns	2.5 ns	Surface Mount	General Purpose	24-SOIC	7.5 mm	0.295 in	40 kV/µs	3	1	100 Mbps	23 ns	18 ns	Unidirectional	24-SOIC	Capacitive Coupling	5.5 V	3 V
Skyworks Solutions Inc. SI88341ED-ISR		4		125 °C	-40 C	2.5 ns	2.5 ns	Surface Mount	General Purpose	24-SOIC	7.5 mm	0.295 in	40 kV/µs	3	1	100 Mbps			Unidirectional	24-SOIC	Capacitive Coupling	5.5 V	3 V	4.8 ns	17.5 ns	12.6 ns
