M2113TC Series

Catalog

MINIATURE TOGGLE/ILLUMINATED/QUI

Part	Electrical Life	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Length [x]	Bushing Thread	Voltage Rating - AC	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Illumination Type, Color	Switch Function	Termination Style	Voltage Rating - DC	Illumination Voltage (Nominal)	Features	Illumination

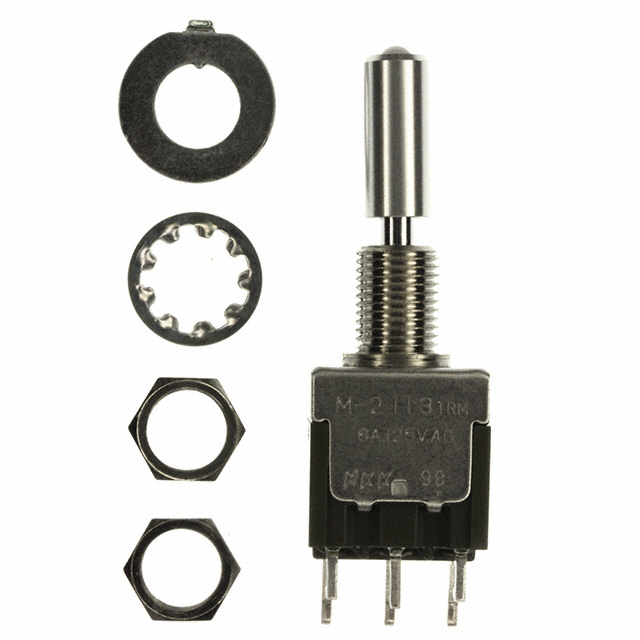

NKK Switches M2113TCFW02/M	25000 Steps	Standard Round	55 °C	-10 °C	SPDT	14.7 mm	1/4-40	125 V	Panel Mount	6.5 mm	3 A 6 A	Green/Red LED	On-Off-On	Quick Connect - 0.062" (1.5mm)	30 V	1.7 VDC 2 VDC	Epoxy Sealed Terminals	Illuminated

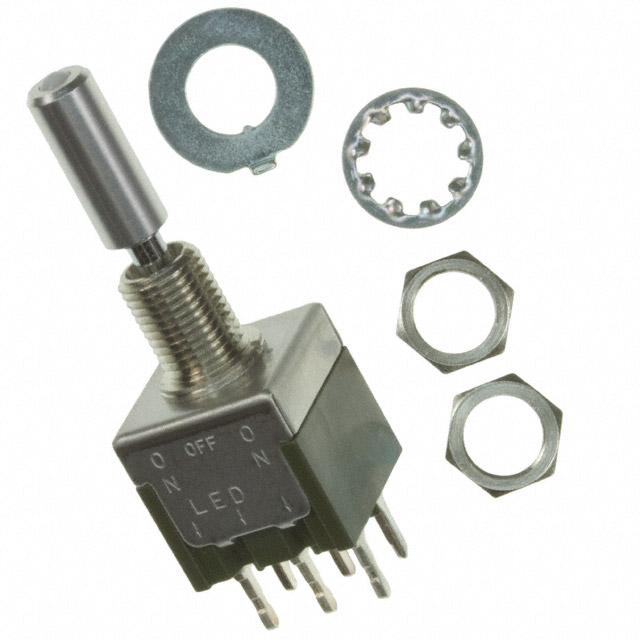

NKK Switches M2113TCFW03	25000 Steps	Standard Round	55 °C	-10 °C	SPDT	14.7 mm	1/4-40	125 V	Panel Mount	6.5 mm	3 A 6 A	Green/Red LED	On-Off-On	PC Pin	30 V	1.7 VDC 2 VDC	Epoxy Sealed Terminals	Illuminated

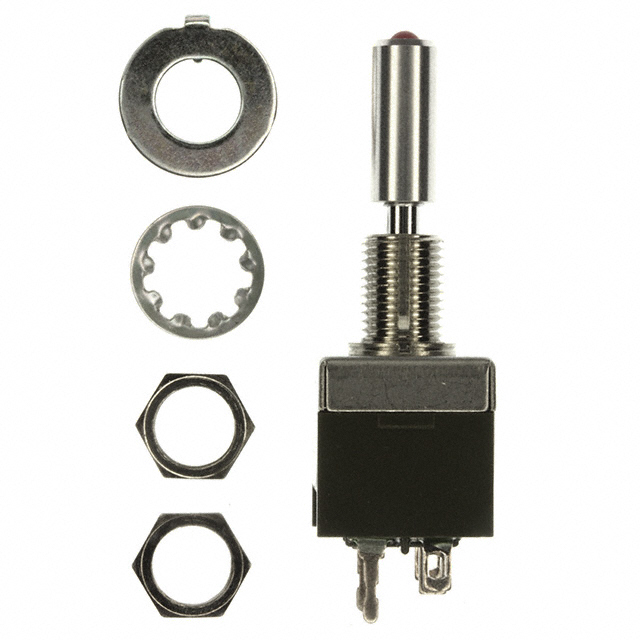

NKK Switches M2113TCW01	25000 Steps	Standard Round	55 °C	-10 °C	SPDT	14.7 mm	1/4-40	125 V	Panel Mount	6.5 mm	3 A 6 A	LED Red	On-Off-On	Solder Lug	30 V	2.2 VDC	Epoxy Sealed Terminals	Illuminated
NKK Switches M2113TCFW01/M	25000 Steps	Standard Round	55 °C	-10 °C	SPDT	14.7 mm	1/4-40	125 V	Panel Mount	6.5 mm	3 A 6 A	Green/Red LED	On-Off-On	Solder Lug	30 V	1.7 VDC 2 VDC	Epoxy Sealed Terminals	Illuminated
NKK Switches M2113TCW01/CUL	25000 Steps	Standard Round	55 °C	-10 °C	SPDT	14.7 mm	1/4-40	125 V	Panel Mount	6.5 mm	3 A 6 A	LED Red	On-Off-On	Solder Lug	30 V	2.2 VDC	Epoxy Sealed Terminals	Illuminated
NKK Switches M2113TCFW01	25000 Steps	Standard Round	55 °C	-10 °C	SPDT	14.7 mm	1/4-40	125 V	Panel Mount	6.5 mm	3 A 6 A	Green/Red LED	On-Off-On	Solder Lug	30 V	1.7 VDC 2 VDC	Epoxy Sealed Terminals	Illuminated
