1.14.012 Series

Manufacturer: RAFI USA

Catalog

SWITCH TACTILE SPST-NO 0.1A 35V

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Outline [y]	Outline [x]	Operating Force	Actuator Height off PCB, Vertical	Mechanical Life	Actuator Type	Contact Rating @ Voltage	Termination Style	Actuator Orientation	Illumination	Mounting Type	Switch Travel	Actuator Length, Right Angle [x]

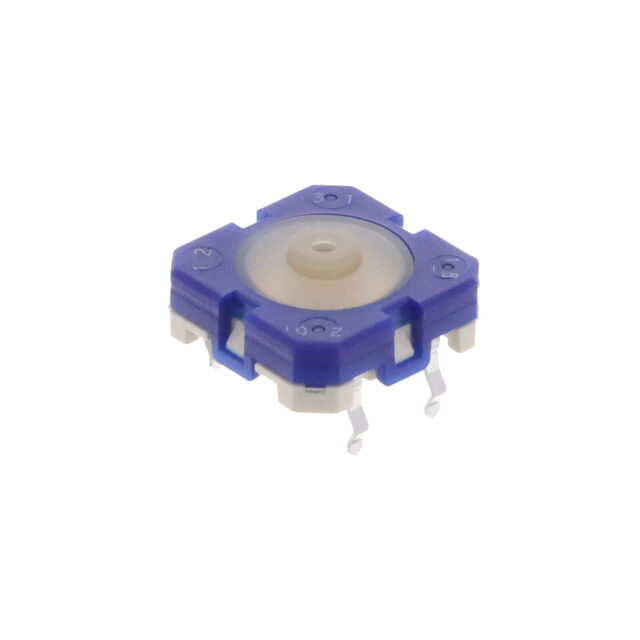

RAFI USA 1.14.012.502/0000	IP54 - Dust Protected Water Resistant	90 °C	-40 C	SPST-NO	Off-Mom	12 mm	12 mm	816 gf	4.96 mm	1000000 Cycles	Standard	0.1 A 35 VAC/DC	PC Pin	Top Actuated	Non-Illuminated	Through Hole	0.61 mm
RAFI USA 1.14.012.505/0000	IP54 - Dust Protected Water Resistant	90 °C	-40 C	SPST-NO	Off-Mom			816 gf		1000000 Cycles	Standard	0.1 A 35 VAC/DC	PC Pin	Side Actuated	Non-Illuminated	Right Angle Through Hole	0.61 mm	13 mm
RAFI USA 1.14.012.920/0000	IP54 - Dust Protected Water Resistant	90 °C	-40 C	SPST-NO	Off-Mom	12 mm	12 mm	989 gf	4.96 mm		Standard	0.1 A 35 VAC/DC	SMD (SMT) Tab	Top Actuated	Non-Illuminated	Surface Mount
RAFI USA 1.14.012.918/0000	IP54 - Dust Protected Water Resistant	90 °C	-40 C	SPST-NO	Off-Mom	12 mm	12 mm	1020 gf	4.96 mm		Standard	0.1 A 35 VAC/DC	PC Pin	Top Actuated	Non-Illuminated	Through Hole
RAFI USA 1.14.012.601/0000
RAFI USA 1.14.012.803/0000	IP54 - Dust Protected Water Resistant	90 °C	-40 C	SPST-NO	Off-Mom	12 mm	12 mm	816 gf	4.96 mm		Standard	0.1 A 35 VAC/DC	SMD (SMT) Tab	Top Actuated	Non-Illuminated	Surface Mount
RAFI USA 1.14.012.926/0000
RAFI USA 1.14.012.920/0000	IP54 - Dust Protected Water Resistant	90 °C	-40 C	SPST-NO	Off-Mom	12 mm	12 mm	989 gf	4.96 mm	65000 Cycles	Standard	0.1 A 35 VAC/DC	SMD (SMT) Tab	Top Actuated	Non-Illuminated	Surface Mount	0.73 mm
RAFI USA 1.14.012.502/0000	IP54 - Dust Protected Water Resistant	90 °C	-40 C	SPST-NO	Off-Mom	12 mm	12 mm	816 gf	4.96 mm		Standard	0.1 A 35 VAC/DC	PC Pin	Top Actuated	Non-Illuminated	Through Hole
RAFI USA 1.14.012.801/0000
