LZ4-40 Series

Catalog

EMITTER UV 1A 390NM-395NM

Part	Wavelength [Max]	Wavelength [Min]	Wavelength	Current - DC Forward (If) (Max) [Max]	Mounting Type	Package / Case	Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	Operating Temperature	Orientation	Light Emitting Surface (LES) [diameter]	Lens Type	Features	Size / Dimension [diameter]	Configuration	Height [z]	CRI (Color Rendering Index)	Current - Max [Max]	Color	CCT (K)	CCT (K)	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Lumens/Watt @ Current - Test	Temperature - Test

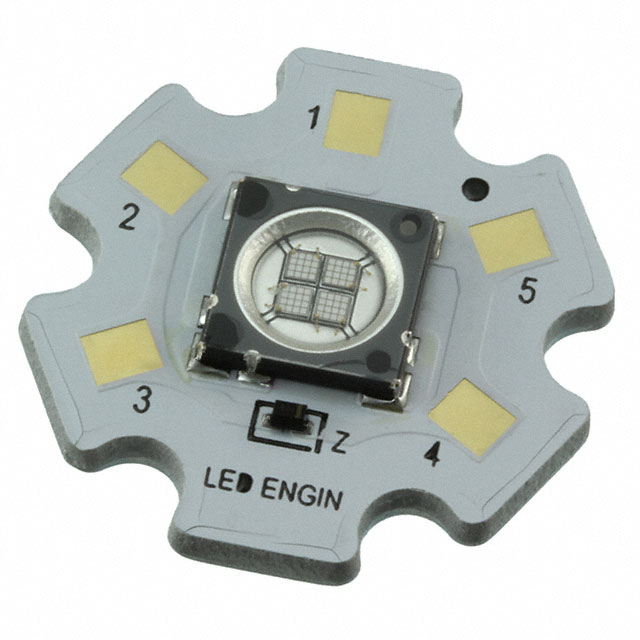

ams-OSRAM USA INC. LZ4-40UB00-00U5	395 nm	390 nm	393 nm	1 A	Surface Mount	Star Array	Ultraviolet (UV)	14.8 V	90 °	130 °C	Top View

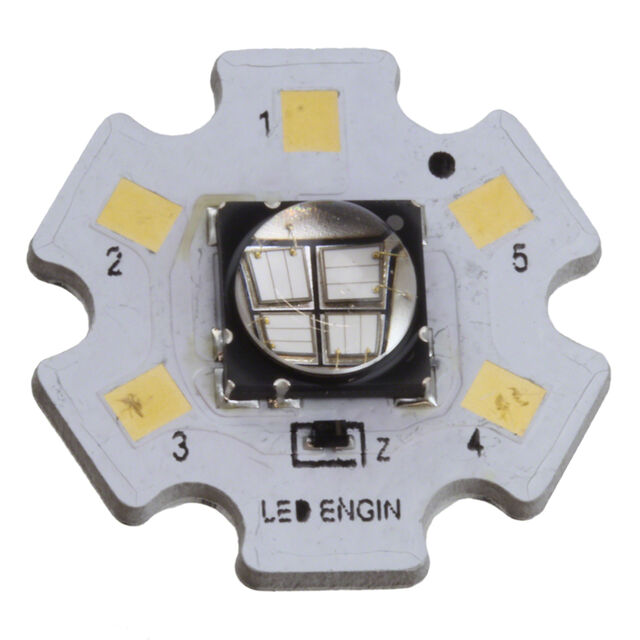

ams-OSRAM USA INC. LZ4-40UA00-00U5			395 nm	1 A	Screw Mount	Star Array	Ultraviolet (UV)	4.1 V	97 °	125 ¯C	Top View
ams-OSRAM USA INC. LZ4-40DB0R-0000							LED Module					6.4 mm	Domed	With Connector	19.9 mm	Starboard	5.6 mm

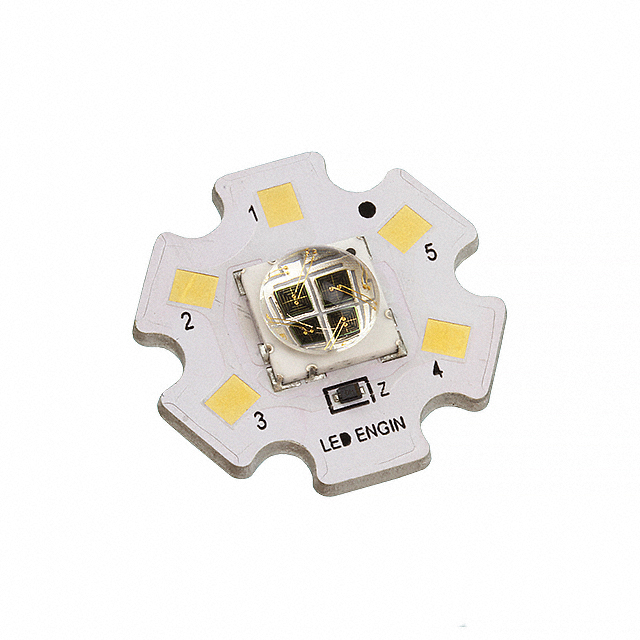

ams-OSRAM USA INC. LZ4-40R608-0000			850 nm	1 A	Screw Mount	Star Array	Infrared (IR)	12.4 V	100 °	145 °C	Top View
ams-OSRAM USA INC. LZ4-40UB00-00U7	405 nm	400 nm	403 nm	1 A	Surface Mount	Star Array	Ultraviolet (UV)	14.8 V	90 °	130 °C	Top View
ams-OSRAM USA INC. LZ4-40UB00-00U8			408 nm	1 A	Surface Mount	Star Array	Ultraviolet (UV)	14.8 V	90 °	130 °C	Top View

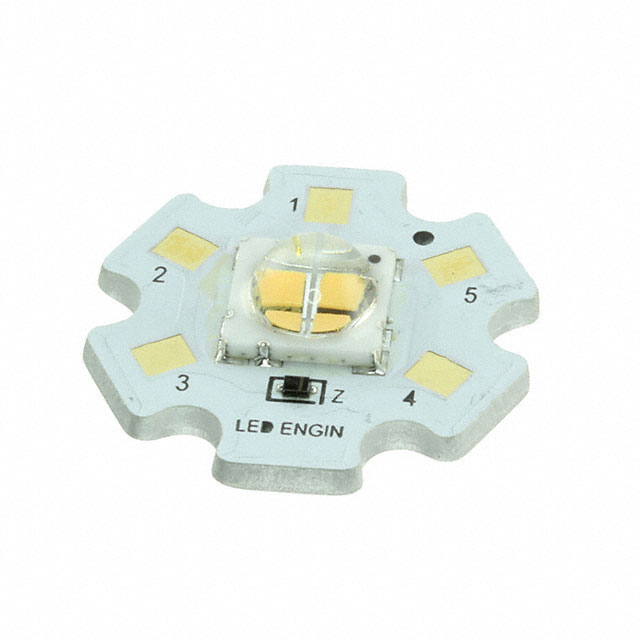

ams-OSRAM USA INC. LZ4-40GW08-0027							LED Module	13.2 V	105 °			5.6 mm	Domed		19.9 mm	Starboard	5.4 mm	98	1 A	Warm White	2700 K	3-Step MacAdam Ellipse	401 lm	356 lm	445 lm	43 lm/W	25 °C

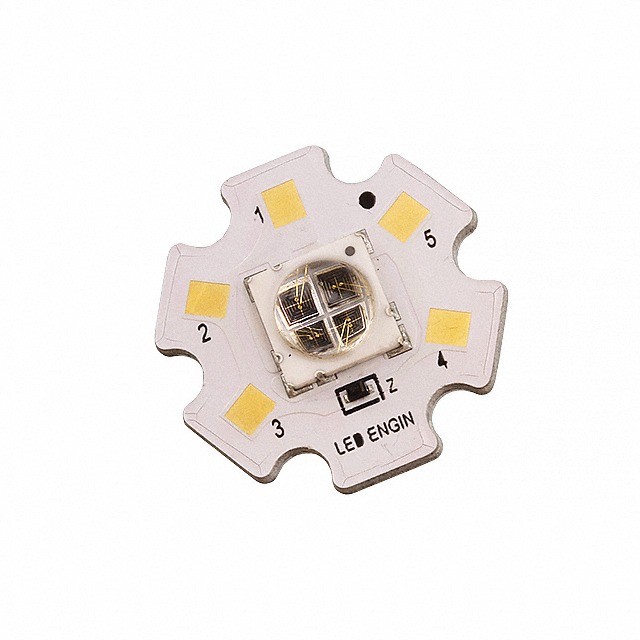

ams-OSRAM USA INC. LZ4-40R408-0000			850 nm	1 A	Screw Mount	Star Array	Infrared (IR)	7.6 V	95 °	125 ¯C	Top View
ams-OSRAM USA INC. LZ4-40UA00-00U4			390 nm	1 A	Screw Mount	Star Array	Ultraviolet (UV)	4.1 V	97 °	125 ¯C	Top View
ams-OSRAM USA INC. LZ4-40R508-0000			940 nm	1 A	Screw Mount	Star Array	Infrared (IR)	8 V	95 °	125 ¯C	Top View
