PKU531 Series

Catalog

DC DC CONVERTER 15V 30W

Part	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Voltage - Isolation	Voltage - Input (Max) [Max]	Mounting Type	Power (Watts)	Approval Agency	Features	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Applications
Flex Power Modules PKU5315EPI	Sixteenth Brick	Sixteenth Brick	105 C	-40 °C	62368-1	1.5 kV	72 V	Through Hole	30 Watts	CB CSA IEC TUV UL	Adjustable Output Remote On/Off	Active Low Enable	22.9 mm	33 mm	0.9 in	7.5 mm	1.3 in	0.3 in	1	Isolated Module	15 V	18 V	89 %	2 A	ITE (Commercial)
Flex Power Modules PKU5310ESI	Sixteenth Brick	Sixteenth Brick	105 C	-40 °C	62368-1	1.5 kV	72 V	Surface Mount	33 W	CB CSA IEC TUV UL	Adjustable Output Remote On/Off	Active Low Enable	22.9 mm	33 mm	0.9 in	7.5 mm	1.3 in	0.3 in	1	Isolated Module	3.3 V	18 V	89.4 %	10 A	ITE (Commercial)
Flex Power Modules PKU5311ESI	Sixteenth Brick	Sixteenth Brick	105 C	-40 °C	62368-1	1.5 kV	72 V	Surface Mount	35 W	CB CSA IEC TUV UL	Adjustable Output Remote On/Off	Active Low Enable	22.9 mm	33 mm	0.9 in	7.5 mm	1.3 in	0.3 in	1	Isolated Module	5 V	18 V	91.7 %	7 A	ITE (Commercial)

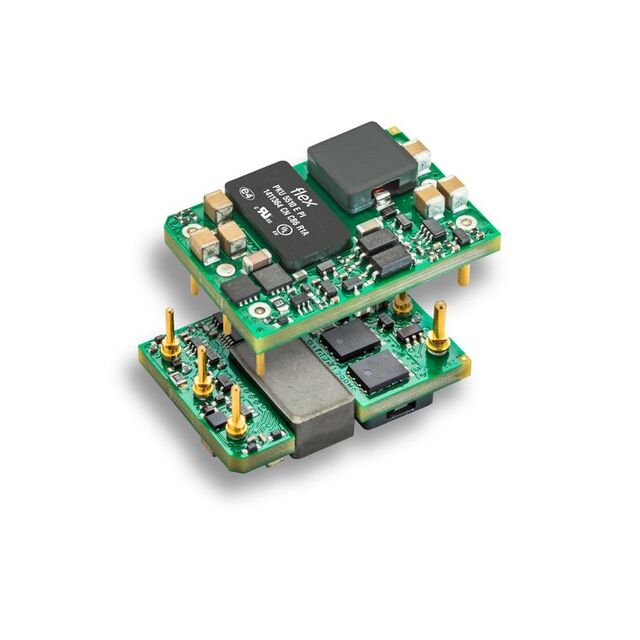

Flex Power Modules PKU5313EPI	Sixteenth Brick	Sixteenth Brick	105 C	-40 °C	62368-1	1.5 kV	72 V	Through Hole	33 W	CB CSA IEC TUV UL	Adjustable Output Remote On/Off	Active Low Enable	22.9 mm	33 mm	0.9 in	7.5 mm	1.3 in	0.3 in	1	Isolated Module	12 V	18 V	89.2 %	2.75 A	ITE (Commercial)
Flex Power Modules PKU5311EPI	Sixteenth Brick	Sixteenth Brick	105 C	-40 °C	62368-1	1.5 kV	72 V	Through Hole	35 W	CB CSA IEC TUV UL	Adjustable Output Remote On/Off	Active Low Enable	22.9 mm	33 mm	0.9 in	7.5 mm	1.3 in	0.3 in	1	Isolated Module	5 V	18 V	91.7 %	7 A	ITE (Commercial)
Flex Power Modules PKU5310EPI	Sixteenth Brick	Sixteenth Brick	105 C	-40 °C	62368-1	1.5 kV	72 V	Through Hole	33 W	CB CSA IEC TUV UL	Adjustable Output Remote On/Off	Active Low Enable	22.9 mm	33 mm	0.9 in	7.5 mm	1.3 in	0.3 in	1	Isolated Module	3.3 V	18 V	89.4 %	10 A	ITE (Commercial)
Flex Power Modules PKU5313ESI	Sixteenth Brick	Sixteenth Brick	105 C	-40 °C	62368-1	1.5 kV	72 V	Surface Mount	33 W	CB CSA IEC TUV UL	Adjustable Output Remote On/Off	Active Low Enable	22.9 mm	33 mm	0.9 in	7.5 mm	1.3 in	0.3 in	1	Isolated Module	12 V	18 V	89.2 %	2.75 A	ITE (Commercial)
Flex Power Modules PKU5315ESI	Sixteenth Brick	Sixteenth Brick	105 C	-40 °C	62368-1	1.5 kV	72 V	Surface Mount	30 Watts	CB CSA IEC TUV UL	Adjustable Output Remote On/Off	Active Low Enable	22.9 mm	33 mm	0.9 in	7.5 mm	1.3 in	0.3 in	1	Isolated Module	15 V	18 V	89 %	2 A	ITE (Commercial)
