001018 Series

Manufacturer: Molex

Catalog

CONN HDR 12POS 0.198 TIN PCB

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Finish - Post	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Style	Connector Type	Fastening Type	Insulation Color	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions	Number of Rows [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Height	Insulation Height	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination Post Length	Termination Post Length	Type	Pitch - Post	Pitch - Post	Contact Material - Post [custom]	Contact Material - Mating	Housing Material	Number of Positions or Pins (Grid)	Shrouding
Molex 0010181122	Phosphor Bronze	Polyester	Circular	1.27 µm	50 µin	General Purpose Telecommunications	Tin	UL94 V-0	0.17 in	4.32 mm	Board to Board Cable	Header	Latch Holder	Black	5 A	5.03 mm	0.198 in	Female Socket	12	3	Through Hole	-40 C	105 ░C	Solder	10.7 mm	0.421 "	250 V	0.198 in	5.03 mm	Board Guide	50 µin	1.27 µm	All

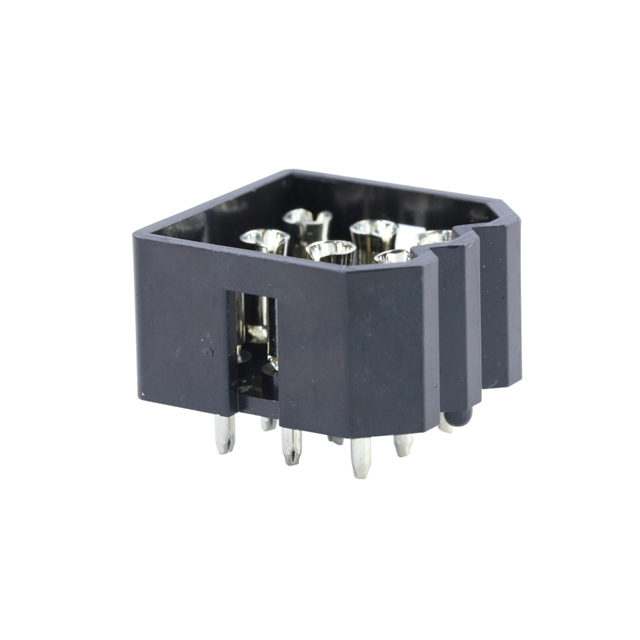

Molex 0010181091	Phosphor Bronze	Polyester	Circular	1.27 µm	50 µin	General Purpose Telecommunications	Tin	UL94 V-0	0.17 in	4.32 mm	Board to Board Cable	Header	Latch Holder	Black	5 A	5.03 mm	0.198 in	Female Socket	9	3	Through Hole	-40 C	105 ░C	Solder	10.7 mm	0.421 "	250 V	0.198 in	5.03 mm	Board Guide	50 µin	1.27 µm	All
Molex 0010182031				2.54 µm	100 µin		Tin									2.54 mm	0.1 "				Through Hole			Solder						Closed Frame				3.43 mm	0.135 in	Transistor TO-220	0.1 in	2.54 mm	Brass	Brass	Polyester Glass Filled	3

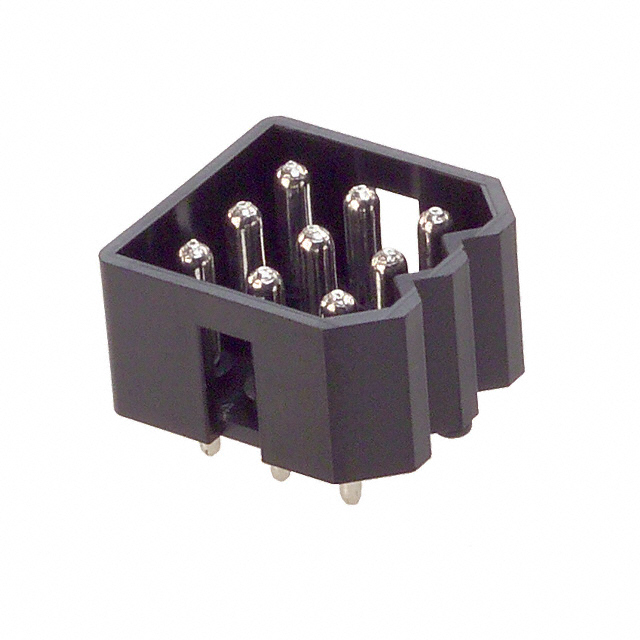

Molex 0010181090	Cartridge Brass	Polyester	Circular			General Purpose Telecommunications	Tin	UL94 V-0	0.17 in	4.32 mm	Board to Board Cable	Header	Latch Lock	Black		5.03 mm	0.198 in	Male Pin	9	3	Through Hole			Solder	10.7 mm	0.421 "		0.198 in	5.03 mm	Board Guide	200 µin	5.08 µm	All										Shrouded - 4 Wall
