GW22RH Series

Catalog

ROCKER SWITCH, ON-NONE-ON, DPDT, NON ILLUMINATED, THROUGH HOLE, GRAY, GW SERIES

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Switch Function	Approval Agency	Termination Style	Voltage Rating - DC	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type	Voltage Rating - AC	Actuator Type	Features

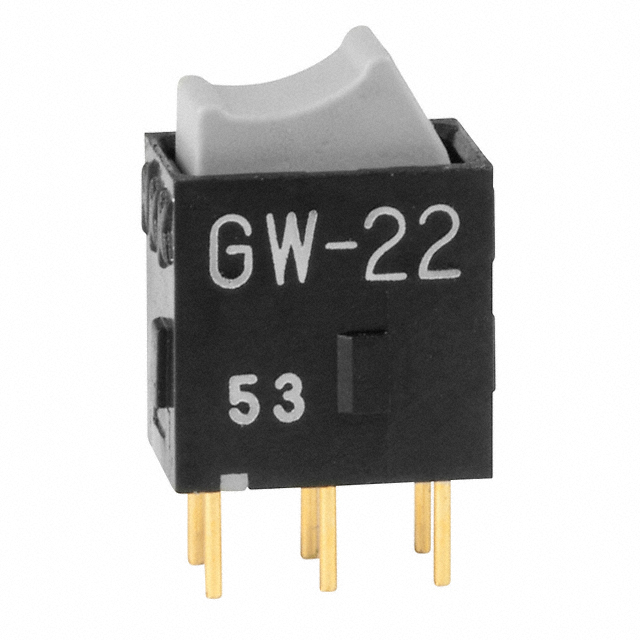

NKK Switches GW22RHP	50000 Cycles	50000 Cycles	0.4 VA	On-On	CSA UL	PC Pin	28 V	No Marking	85 °C	-30 ░C	DPDT	Through Hole	28 V	Concave (Curved)	Sealed - Flux Protection
NKK Switches GW22RHV	50000 Cycles	50000 Cycles	0.4 VA	On-On	CSA UL	PC Pin	28 V	No Marking	85 °C	-30 ░C	DPDT	Right Angle Through Hole Vertical	28 V	Concave (Curved)	Sealed - Flux Protection

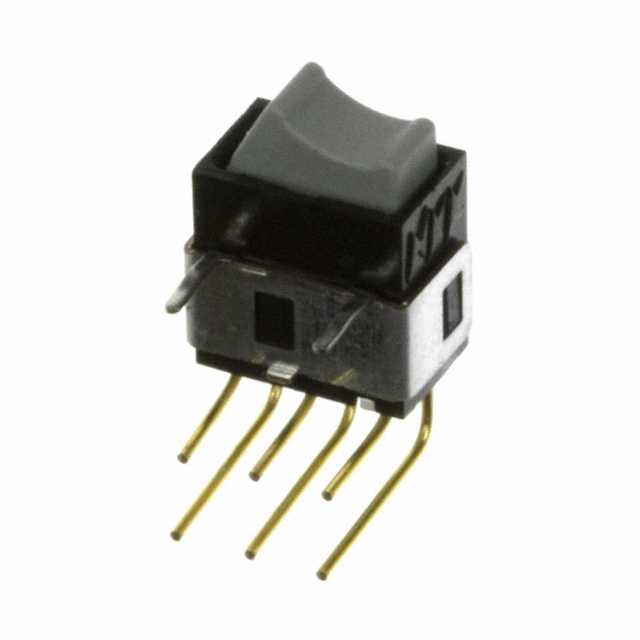

NKK Switches GW22RHH	50000 Cycles	50000 Cycles	0.4 VA	On-On	CSA UL	PC Pin	28 V	No Marking	85 °C	-30 ░C	DPDT	Right Angle Through Hole	28 V	Concave (Curved)	Sealed - Flux Protection
