SBR-90 Series

Catalog

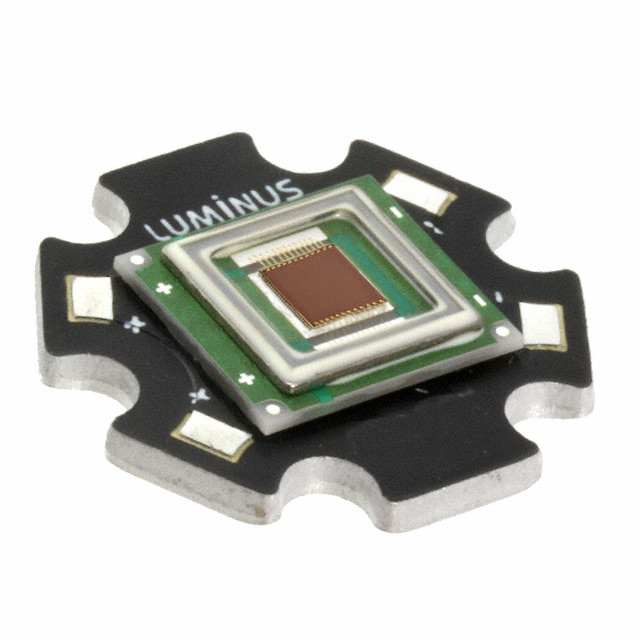

LED MOD SBR-90 RED STARBOARD

Part	Current - Max [Max]	Type	Lens Type	Height [z]	Current - Test	Color	Configuration	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Wavelength [Min]	Wavelength [Max]	Luminous Flux @ Current/Temperature	Size / Dimension [diameter]	Lumens/Watt @ Current - Test	Temperature - Test	Voltage - Forward (Vf) (Typ)	Wavelength	CRI (Color Rendering Index)	CCT (K)	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Light Emitting Surface (LES) [diameter]
Luminus Devices Inc. SBR-90-R-R75-HK100	13.5 A	LED Module	Flat	3.5 mm	13.5 A	Red	Starboard	3 mm	3 mm	615 nm	627 nm	860 lm	19.9 mm	24 lm/W	25 °C	2.7 V
Luminus Devices Inc. SBR-90-R-R75-HM101	13.5 A	LED Module	Flat	3.5 mm	13.5 A	Red	Starboard	3 mm	3 mm			1350 lm	19.9 mm	37 lm/W	25 °C	2.7 V	620 nm
Luminus Devices Inc. SBR-90-R-R75-HK101	13.5 A	LED Module	Flat	3.5 mm	13.5 A	Red	Starboard	3 mm	3 mm	619 nm	623 nm	860 lm	19.9 mm	24 lm/W	25 °C	2.7 V	621 nm
Luminus Devices Inc. SBR-90-R-R75-HM100	13.5 A	LED Module	Flat	3.5 mm	13.5 A	Red	Starboard	3 mm	3 mm			1350 lm	19.9 mm	37 lm/W	25 °C	2.7 V	620 nm
Luminus Devices Inc. SBR-90-W65S-R71-NA102	9 A	LED Module	Flat	3.5 mm	9 A	Cool White	Starboard	3 mm	3 mm			1650 lm	19.9 mm	52 lm/W	40 °C	3.5 V		70	6500 K	1590 lm	1710 lm
Luminus Devices Inc. SBR-90-W65S-R71-NB102	9 A	Chip On Board (COB)	Flat	3.5 mm	9 A	Cool White	Starboard						19.9 mm	56 lm/W	25 °C	3.5 V		70	6500 K	1710 lm	1830 lm	3 mm
Luminus Devices Inc. SBR-90-R-R75-HN101	13.5 A	LED Module	Flat	3.5 mm	13.5 A	Red	Starboard	3 mm	3 mm			1350 lm	19.9 mm	37 lm/W	25 °C	2.7 V
