5530-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

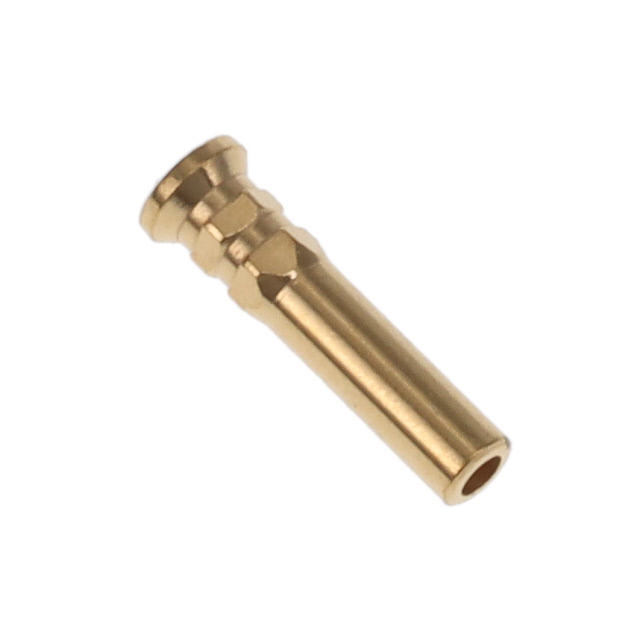

PRESS-FIT RECEPTACLE FOR PLATED
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Tail Type | Contact Finish | Contact Material | Length - Overall | Length - Overall | Termination | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Socket Depth | Socket Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.4 mm | 0.055 in | 30 Áin | 0.76 Ám | 0.028 in | 0.71 mm | No Tail | Gold | Beryllium Copper | 4.8 mm | 0.189 in | Hex Press-Fit | 0.017 " | 0.012 " | 0.3 mm | 0.43 mm | 2.79 mm | 0.11 in |
