282814 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

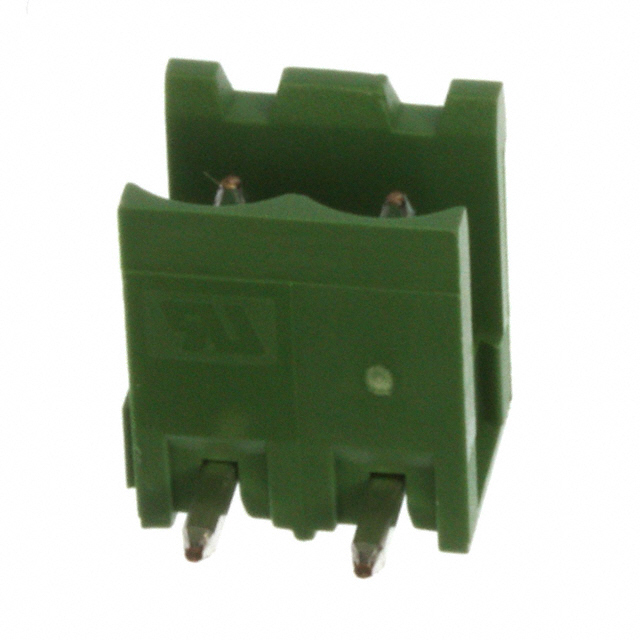

TERM BLOCK HDR 2POS 90DEG 5.08MM
| Part | Material Flammability Rating | Mounting Type | Color | Number of Levels | Contact Tail Length | Contact Tail Length | Insulation Height | Insulation Height | Features | Number of Positions | Header Orientation | Pitch [x] | Pitch [x] | Type | Contact Mating Finish | Termination Style | Voltage - UL | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Through Hole | Green | 1 | 3.5 mm | 0.138 in | 0.472 in | 12 mm | Interlocking (Side) | 2 | 90° Right Angle | 0.2 in | 5.08 mm | Header Male Pins Shrouded (2 Side) | Tin | Solder | 300 V | 2 | -40 °C | 110 °C | Copper Alloy |
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Through Hole | Green | 1 | 3.5 mm | 0.138 in | 0.472 in | 12 mm | Interlocking (Side) | 90° Right Angle | 0.2 in | 5.08 mm | Header Male Pins Shrouded (2 Side) | Tin | Solder | 300 V | 3 | -40 °C | 110 °C | Copper Alloy |
