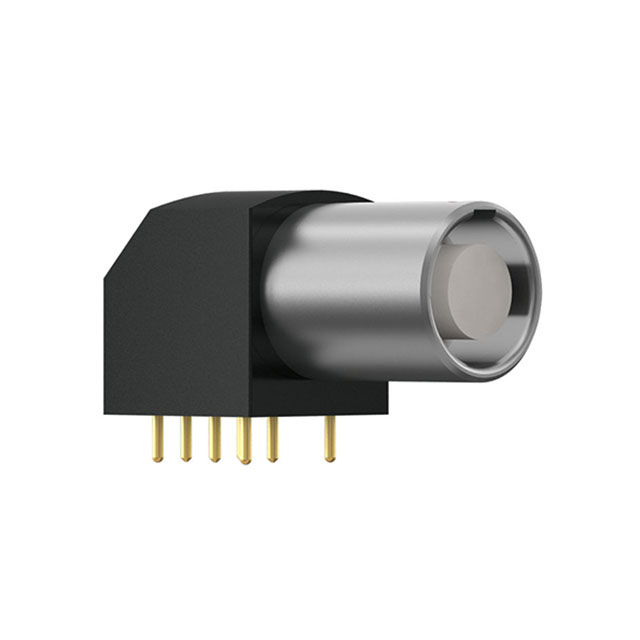

GFCL0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 2POS GOLD SOLDER
| Part | Contact Material | Ingress Protection | Primary Material | Shell Size - Insert | Applications | Fastening Type | Number of Positions | Insert Material | Color | Orientation | Features | Shell Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Shell Finish | Current Rating (Amps) | Contact Finish - Mating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | IP50 - Dust Protected | Metal | 00 | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | 2 | Polyetheretherketone (PEEK) | Silver | 0 | Ground | Brass | Panel Mount Right Angle Through Hole | 120 °C | -40 C | Solder | Chrome over Nickel | 4 A | Gold | Receptacle Female Sockets | |
Brass | IP50 - Dust Protected | Metal | 00 | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | Silver | 0 | Ground | Brass | Panel Mount Right Angle Through Hole | 120 °C | -40 C | Solder | Chrome over Nickel | 4 A | Gold | Receptacle Female Sockets | ||
Brass | IP50 - Dust Protected | Metal | 00 | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | 4 | Polyetheretherketone (PEEK) | Silver | 0 | Ground | Brass | Panel Mount Right Angle Through Hole | 120 °C | -40 C | Solder | Chrome over Nickel | 4 A | Gold | Receptacle Female Sockets |
