LM5150-Q1 Series

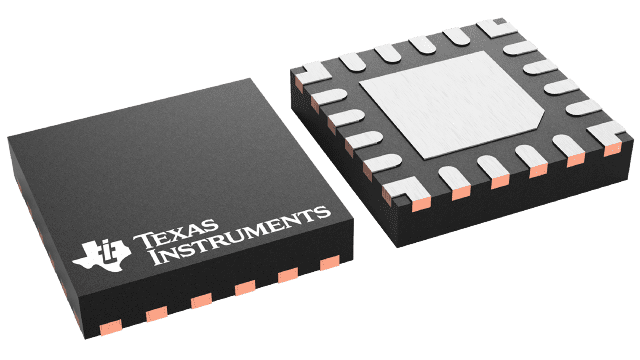

Automotive 1.5-V to 42-V VIN, low IQ boost controller with 6.8V, 7.5V, 8.5V, 10.5V output options

Catalog

Automotive 1.5-V to 42-V VIN, low IQ boost controller with 6.8V, 7.5V, 8.5V, 10.5V output options

Part	Output Type	Duty Cycle (Max) [Max]	Grade	Function	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching [Min]	Frequency - Switching [Max]	Number of Outputs	Qualification	Output Phases	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Topology	Output Configuration	Contents	Voltage - Output	Main Purpose	Regulator Topology	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Current - Output	Utilized IC / Part	Outputs and Type	Frequency - Switching	Board Type	Control Features

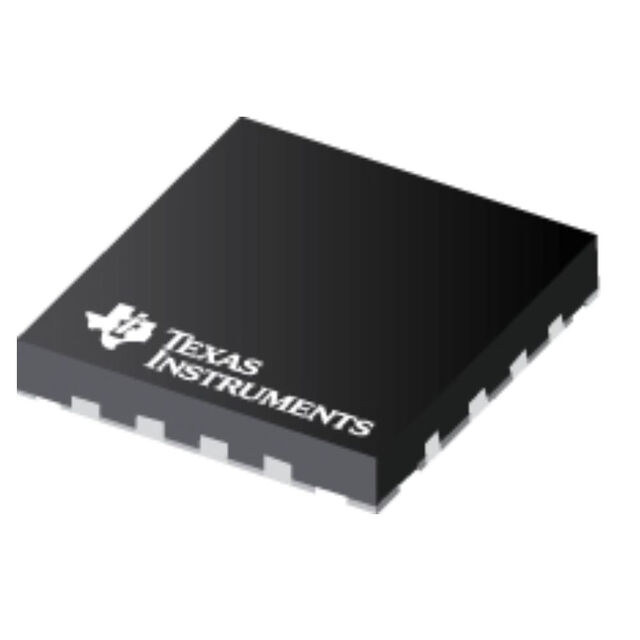

Texas Instruments LM5150QWRUMTQ1	Transistor Driver	91.5 %	Automotive	Step-Up	16-WQFN Exposed Pad	16-WQFN (4x4)	-40 °C	125 ¯C	220 kHz	2.3 MHz	1	AEC-Q100	1	Surface Mount Wettable Flank	42 V	1.5 V	Boost	Positive
Texas Instruments LM5150QWRUMRQ1	Transistor Driver	91.5 %	Automotive	Step-Up	16-WQFN Exposed Pad	16-WQFN (4x4)	-40 °C	125 ¯C	220 kHz	2.3 MHz	1	AEC-Q100	1	Surface Mount Wettable Flank	42 V	1.5 V	Boost	Positive

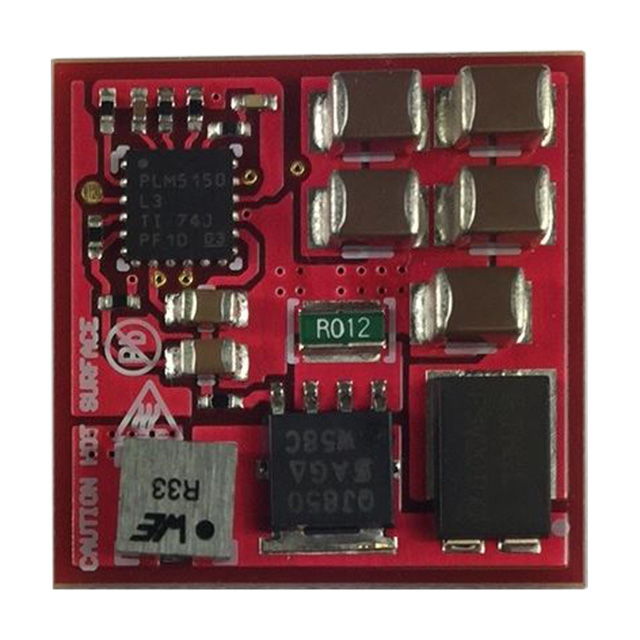

Texas Instruments LM5150RUMHDEVM																			Board(s)	6.8 V	DC/DC Step Up	Boost	Board(s)	3.2 V	40 V	1 Non-Isolated Output Non-Isolated	1.1 A	LM5150-Q1	1	2.2 MHz	Fully Populated
Texas Instruments LM5150QRUMTQ1	Transistor Driver	91.5 %	Automotive	Step-Up	16-WQFN Exposed Pad	16-WQFN (4x4)	-40 °C	125 °C	220 kHz	2.3 MHz	1	AEC-Q100	1	Surface Mount	42 V	1.5 V	Boost	Positive														Current Limit Enable

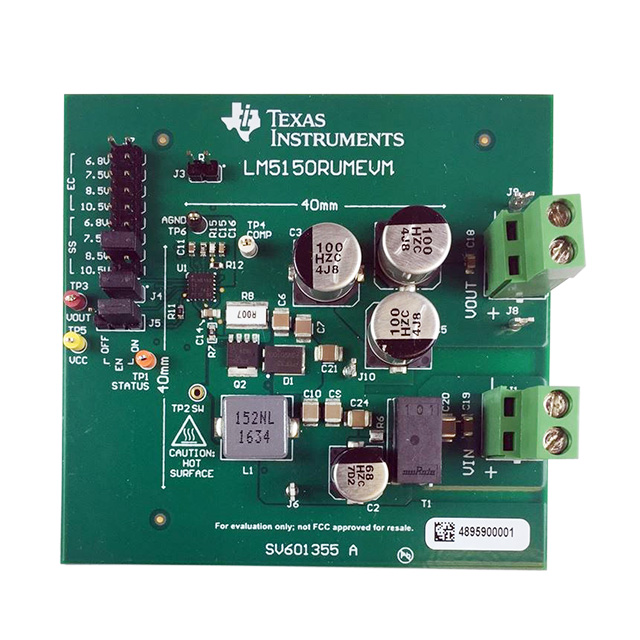

Texas Instruments LM5150RUMEVM																				8.5 V	DC/DC Step Up	Boost	Board(s)	2.5 V	40 V	Non-Isolated	2.94 A	LM5150-Q1	1	440 kHz	Fully Populated
Texas Instruments LM5150QURUMRQ1	Transistor Driver	87 %	Automotive	Step-Up	16-WQFN Exposed Pad	16-WQFN (4x4)	-40 °C	150 °C	220 kHz	2.3 MHz	1	AEC-Q100	1	Surface Mount	42 V	1.5 V	Boost	Positive														Current Limit Enable Frequency Control

Catalog

Automotive 1.5-V to 42-V VIN, low IQ boost controller with 6.8V, 7.5V, 8.5V, 10.5V output options

Key Features

• AEC-Q100 qualified:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeDevice HBM ESD classification level 2Device CDM ESD classification level C4BFunctional Safety-CapableDocumentation available to aid functional safety system designWide VIN input range from 1.5 V to 42 V when VOUT ≥ 5 V (65-V absolute maximum)Low shutdown current (IQ≤ 5 µA)Low standby current (IQ≤ 15 µA)Four programmable output voltage options and two selectable configurations6.8 V, 7.5 V, 8.5 V, or 10.5 VStart-stop or e-call configurationsAdjustable switching frequency from 220 kHz to 2.3 MHzAutomatic wake-up and standby mode transitionOptional clock synchronizationBoost status indicator1.5-A peak MOSFET gate driverAdjustable cycle-by-cycle current limitThermal shutdown16-pin WQFN with wettable and non-wettable flank optionsCreate a custom design using the LM5150-Q1 with theWEBENCH Power DesignerAEC-Q100 qualified:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeDevice HBM ESD classification level 2Device CDM ESD classification level C4BFunctional Safety-CapableDocumentation available to aid functional safety system designWide VIN input range from 1.5 V to 42 V when VOUT ≥ 5 V (65-V absolute maximum)Low shutdown current (IQ≤ 5 µA)Low standby current (IQ≤ 15 µA)Four programmable output voltage options and two selectable configurations6.8 V, 7.5 V, 8.5 V, or 10.5 VStart-stop or e-call configurationsAdjustable switching frequency from 220 kHz to 2.3 MHzAutomatic wake-up and standby mode transitionOptional clock synchronizationBoost status indicator1.5-A peak MOSFET gate driverAdjustable cycle-by-cycle current limitThermal shutdown16-pin WQFN with wettable and non-wettable flank optionsCreate a custom design using the LM5150-Q1 with theWEBENCH Power Designer

Description

The LM5150-Q1 device is a wide input range automatic boost controller. The device is suitable for use as a pre-boost converter which maintains the output voltage from a vehicle battery during automotive cranking or from a back-up battery during the loss of vehicle battery. The LM5150-Q1 switching frequency is programmed by a resistor from 220 kHz to 2.3 MHz. Fast switching (≥ 2.2 MHz) minimizes AM band interference and allows for a small solution size and fast transient response. The LM5150-Q1 operates in low IQstandby mode when the input or output voltage is above the preset standby thresholds and automatically wakes up when the output voltage drops below the preset wake-up threshold. The device transients in and out of the low IQstandby mode to extend battery life at light load. A single resistor programs the target output regulation voltage as well as the configuration. Additional features include low shutdown current, boost status indicator, adjustable cycle-by-cycle current limit, and thermal shutdown. The LM5150-Q1 device is a wide input range automatic boost controller. The device is suitable for use as a pre-boost converter which maintains the output voltage from a vehicle battery during automotive cranking or from a back-up battery during the loss of vehicle battery. The LM5150-Q1 switching frequency is programmed by a resistor from 220 kHz to 2.3 MHz. Fast switching (≥ 2.2 MHz) minimizes AM band interference and allows for a small solution size and fast transient response. The LM5150-Q1 operates in low IQstandby mode when the input or output voltage is above the preset standby thresholds and automatically wakes up when the output voltage drops below the preset wake-up threshold. The device transients in and out of the low IQstandby mode to extend battery life at light load. A single resistor programs the target output regulation voltage as well as the configuration. Additional features include low shutdown current, boost status indicator, adjustable cycle-by-cycle current limit, and thermal shutdown.
