3154-0 Series

Catalog

CONN PC PIN CIRC .018DIA GOLD

Part	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Terminal Style	Mounting Type	Length - Above Flange [x]	Length - Above Flange [x]	Terminal Type	Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall	Length - Overall
Mill-Max Manufacturing Corp. 3154-0-00-21-00-00-03-0	Phosphor Bronze	0.81 mm	0.032 in	Single End	Through Hole	0.24 in	6.1 mm	PC Pin	Non-Insulated	Knurled Press-Fit	20 µin	0.51 µm	Gold	0.018 in	0.46 mm	0.66 mm	0.026 in	6.6 mm	0.26 in
Mill-Max Manufacturing Corp. 3154-0-00-34-00-00-03-0	Phosphor Bronze	0.81 mm	0.032 in	Single End	Through Hole	0.24 in	6.1 mm	PC Pin	Non-Insulated	Knurled Press-Fit	50 µin	1.27 µm	Gold	0.018 in	0.46 mm	0.66 mm	0.026 in	6.6 mm	0.26 in

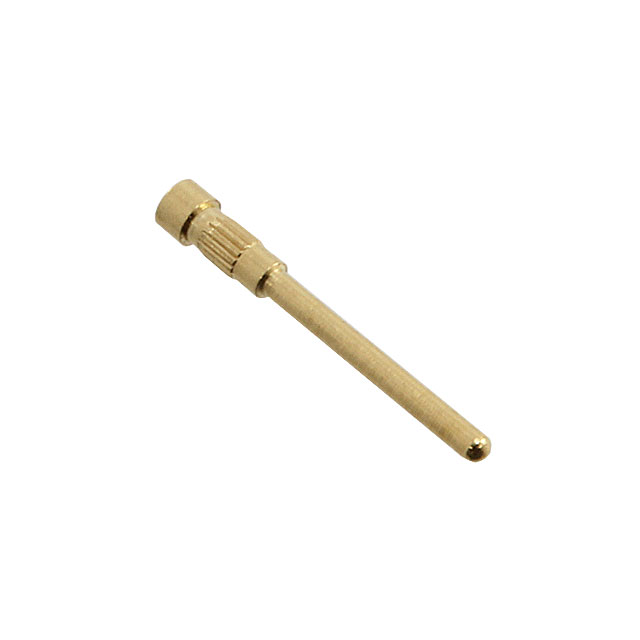

Mill-Max Manufacturing Corp. 3154-0-00-15-00-00-03-0	Phosphor Bronze	0.81 mm	0.032 in	Single End	Through Hole	0.24 in	6.1 mm	PC Pin	Non-Insulated	Knurled Press-Fit	10 Áin	0.25 Ám	Gold	0.018 in	0.46 mm	0.66 mm	0.026 in	6.6 mm	0.26 in
Mill-Max Manufacturing Corp. 3154-0-00-80-00-00-03-0	Phosphor Bronze	0.81 mm	0.032 in	Single End	Through Hole	0.24 in	6.1 mm	PC Pin	Non-Insulated	Knurled Press-Fit	200 Áin	5.08 Ám	Tin	0.018 in	0.46 mm	0.66 mm	0.026 in	6.6 mm	0.26 in
