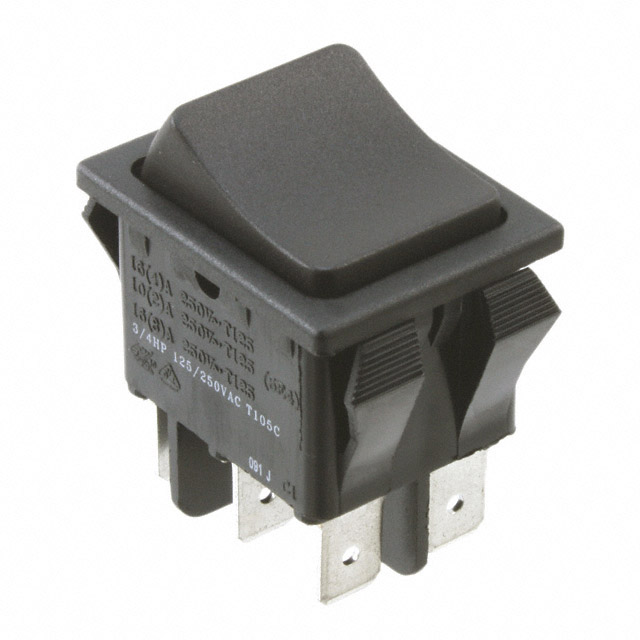

RB24GD1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPDT 20A 125V
| Part | Electrical Life | Ingress Protection | Current Rating (Amps) | Actuator Type | Features | Termination Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Marking | Switch Function | Mounting Type | Circuit | Color - Actuator/Cap | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | IP54 - Dust Protected Water Resistant | 20 A | Concave (Curved) | Sealing Boot | Quick Connect - 0.250" (6.3mm) | 30 mm | 22 mm | No Marking | On-On | Panel Mount Snap-In | DPDT | Black | 125 V |
 E-Switch | 10000 Cycles | 20 A | Concave (Curved) | Quick Connect - 0.250" (6.3mm) | 30 mm | 22 mm | No Marking | On-On | Panel Mount Snap-In | DPDT | Black | 125 V |
