ECQ-E2 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.47UF 20% 250VAC RAD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Termination	Capacitance	Package / Case	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Lead Spacing	Lead Spacing	Applications	Mounting Type	Dielectric Material	Tolerance	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]
Panasonic Electronic Components ECQ-E2A474MW	1.142 in	0.512 in	29 mm	13 mm	PC Pins	0.47 µF	Radial	250 V	85 °C	-40 C	0.866 in	22 mm	25.5 mm	1.004 in	EMI RFI Suppression	Through Hole	Polyester Metallized	20 %

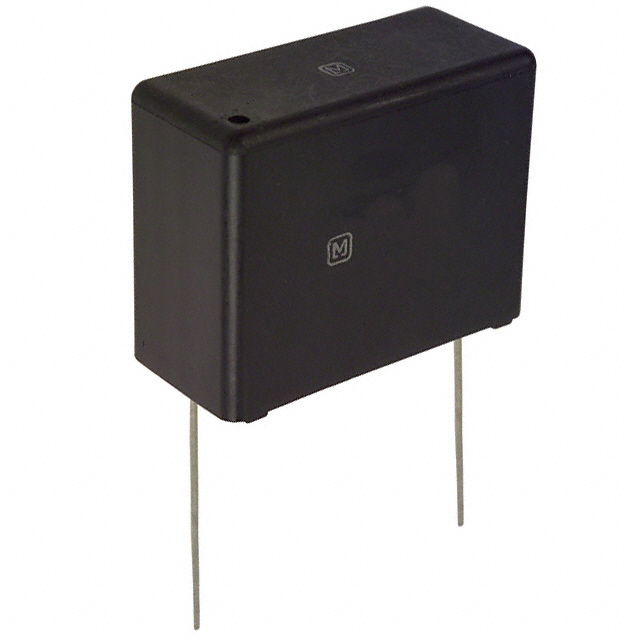

Panasonic Electronic Components ECQ-E2W225KC			31 mm	14 mm	PC Pins	2.2 µF	Radial		85 °C	-40 C			27.5 mm	1.083 in	General Purpose	Through Hole	Polyester Metallized	10 %	450 V	0.551 in	1.22 in	0.984 in	25 mm

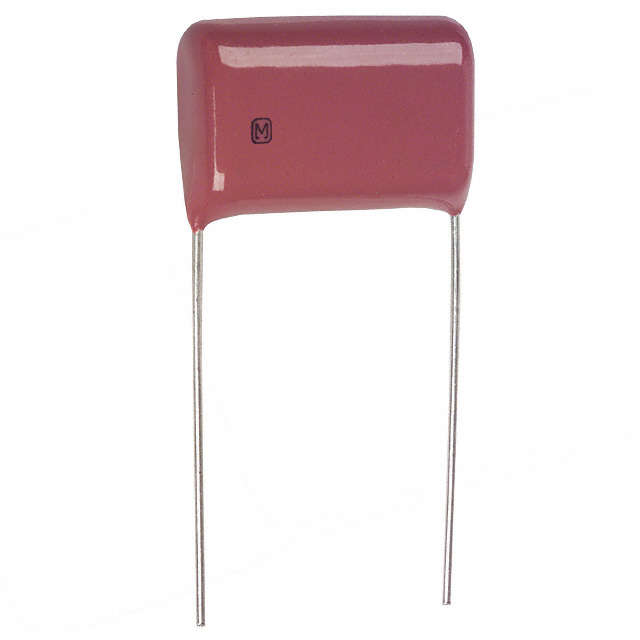

Panasonic Electronic Components ECQ-E2A224MW			24 mm	10.5 mm	PC Pins	0.22 µF	Radial	250 V	85 °C	-40 C			20.5 mm	0.807 "	EMI RFI Suppression	Through Hole	Polyester Metallized	20 %		0.413 in	0.945 "			0.748 in	19 mm

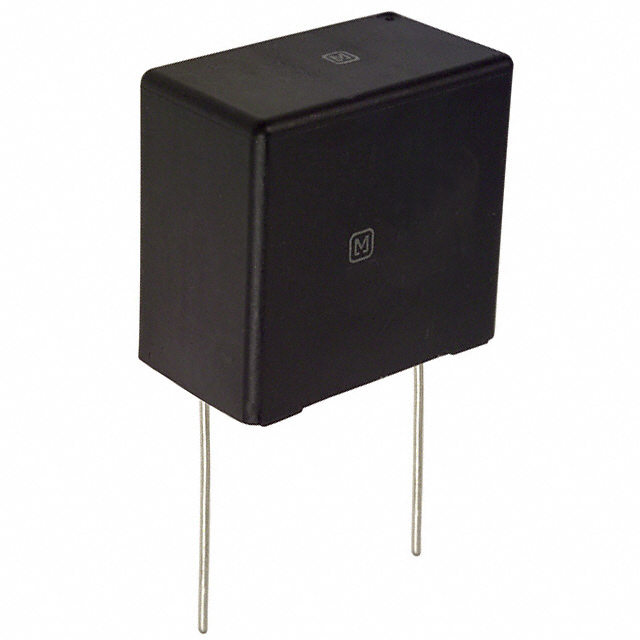

Panasonic Electronic Components ECQ-E2W155KC					PC Pins	1500 nF	Radial		85 °C	-40 C			22.5 mm	0.886 in	General Purpose	Through Hole	Polyester Metallized	10 %	450 V	0.61 in 15.5 mm	1.004 in 25.5 mm	0.984 in	25 mm

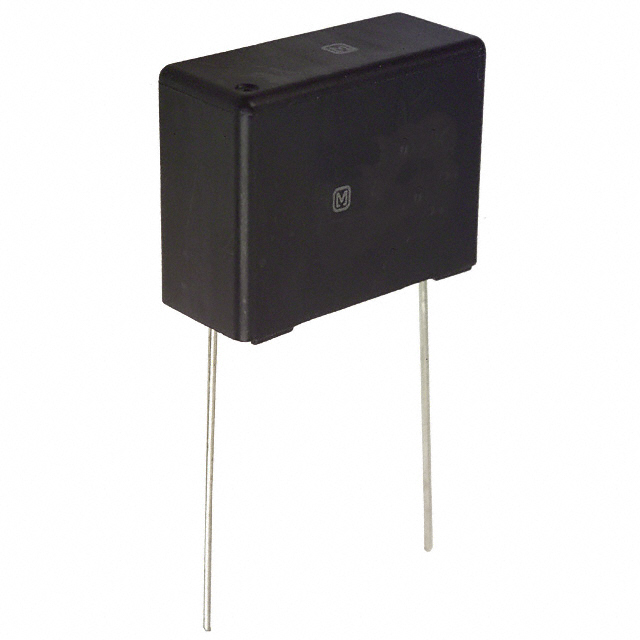

Panasonic Electronic Components ECQ-E2W684KC			25.5 mm	10.5 mm	PC Pins	0.68 µF	Radial		85 °C	-40 C			22.5 mm	0.886 in	General Purpose	Through Hole	Polyester Metallized	10 %	450 V	0.413 in	1.004 in			0.807 in		20.5 mm
Panasonic Electronic Components ECQ-E2W154KC			18.5 mm	6 mm	PC Pins	0.15 ÁF	Radial		85 °C	-40 C			15 mm	0.591 in	General Purpose	Through Hole	Polyester Metallized	10 %	450 V	0.236 "	0.728 in		17 mm	0.669 "

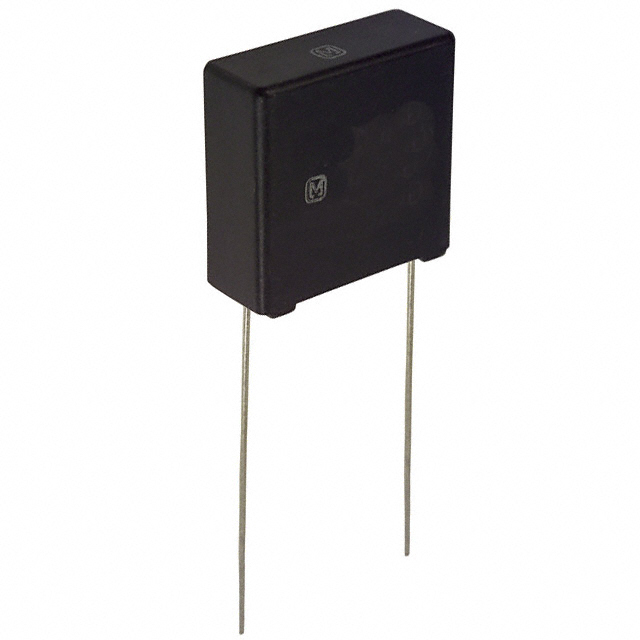

Panasonic Electronic Components ECQ-E2W224KC			18.5 mm	7 mm	PC Pins	0.22 µF	Radial		85 °C	-40 C			15 mm	0.591 in	General Purpose	Through Hole	Polyester Metallized	10 %	450 V	0.276 in	0.728 in	0.728 in	18.5 mm

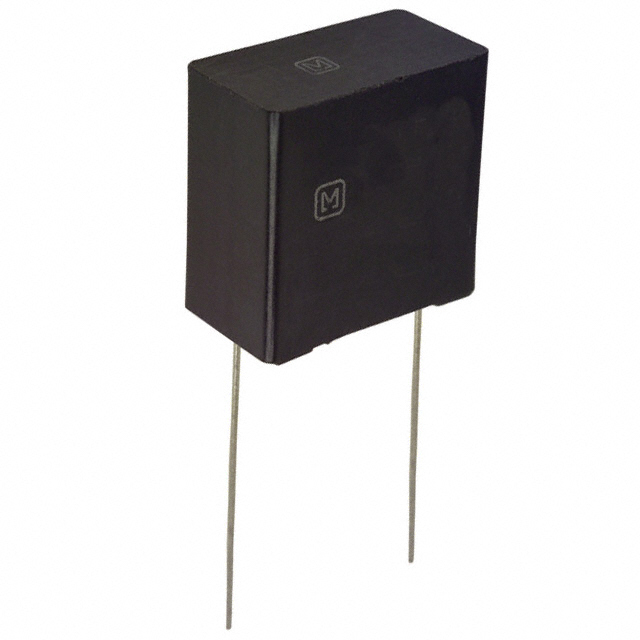

Panasonic Electronic Components ECQ-E2W474KC			18 mm	9.5 mm	PC Pins	0.47 µF	Radial		85 °C	-40 C			15 mm	0.591 in	General Purpose	Through Hole	Polyester Metallized	10 %	450 V	0.374 in	0.709 in			0.709 in	18 mm

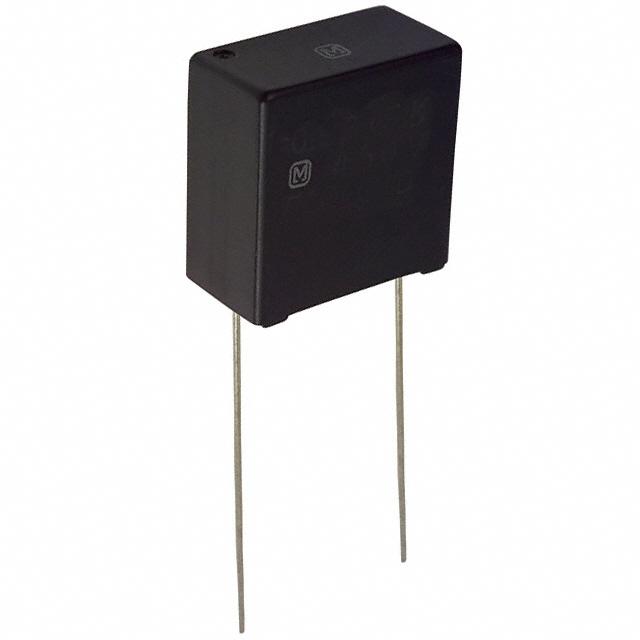

Panasonic Electronic Components ECQ-E2W334KC			18 mm	9 mm	PC Pins	0.33 µF	Radial		85 °C	-40 C			15 mm	0.591 in	General Purpose	Through Hole	Polyester Metallized	10 %	450 V	0.354 in	0.709 in			0.709 in	18 mm
