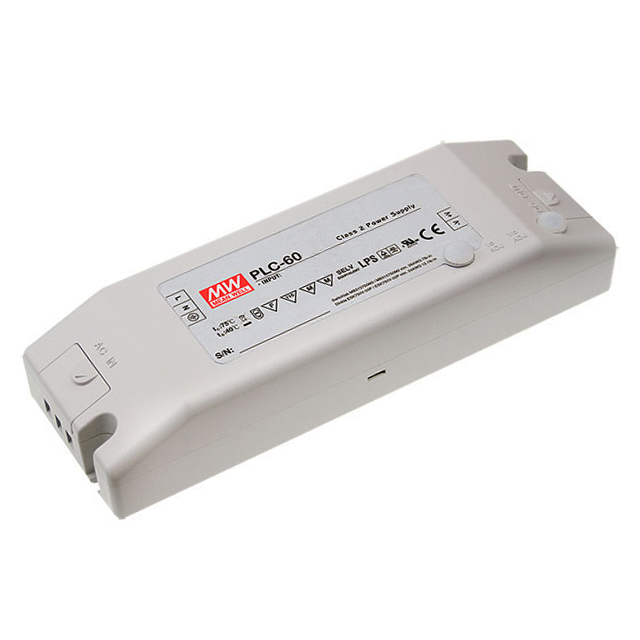

PLC-60 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRVR CC AC/DC 18.9-27V 2.3A
| Part | Mounting Type | Type | Voltage - Output [Min] | Voltage - Output [Max] | Topology | Efficiency | Approval Agency | Voltage - Isolation | Number of Outputs | Features | Power (Watts) | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | Constant Current | 18.9 V | 27 V | AC DC Converter | 88 % | CB CCC CE cURus PSE TUV | 3750 VDC | 1 | OCP OTP OVP SCP | 62 W | 90 VAC | 2.3 A | Terminal Block | -30 ░C | 50 °C | 7.15 in | 35 mm | 2.44 " | 181.5 mm | 1.38 in | 62 mm | 264 VAC |
MEAN WELL USA Inc. | Chassis Mount | Constant Current | 16.8 V | 24 V | AC DC Converter | 87 % | CB CCC CE cURus PSE TUV | 3750 VDC | 1 | OCP OTP OVP SCP | 60 W | 90 VAC | 2.5 A | Terminal Block | -30 ░C | 50 °C | 7.15 in | 35 mm | 2.44 " | 181.5 mm | 1.38 in | 62 mm | 264 VAC |
