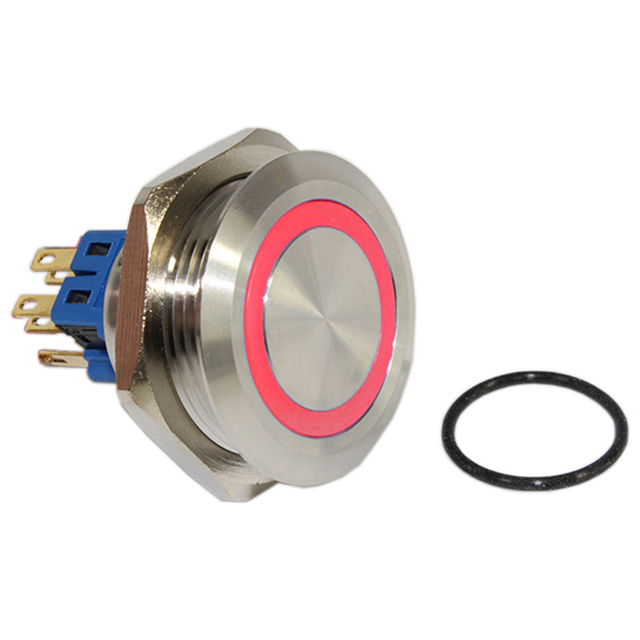

DH302 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB 4PST-2NO/2NC 2A 125V
| Part | Circuit | Electrical Life | Ingress Protection | Panel Cutout Dimensions [diameter] | Actuator Type | Voltage Rating - DC | Current Rating (Amps) | Type | Actuator Marking | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Color - Actuator/Cap | Illumination Type, Color | Switch Function | Mounting Type | Features | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal Illuminated | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Black | Green/Red LED | Off-Mom On-Mom | Panel Mount Front | ||
 CIT Relay and Switch | DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal Illuminated | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Silver | Green/Red LED | Off-On On-Off | Panel Mount Front | Stainless Steel | |
 CIT Relay and Switch | DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal Illuminated | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Silver | LED Red | Off-Mom On-Mom | Panel Mount Front | Stainless Steel | 12 VDC |
 CIT Relay and Switch | DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal Illuminated | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Silver | Blue LED | Off-Mom On-Mom | Panel Mount Front | Stainless Steel | |
 CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Black | Off-On On-Off | Panel Mount Front | |||
 CIT Relay and Switch | DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal Illuminated | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Silver | Green LED | Off-Mom On-Mom | Panel Mount Front | Stainless Steel | 12 VDC |
CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Silver | Off-Mom On-Mom | Panel Mount Front | Stainless Steel | ||
 CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal Illuminated | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Silver | Green LED | Off-Mom On-Mom | Panel Mount Front | Stainless Steel | |
 CIT Relay and Switch | DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal Illuminated | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Silver | Green/Red LED | Off-Mom On-Mom | Panel Mount Front | Stainless Steel | |
 CIT Relay and Switch | DPST-NO/NC | 50000 Cycles | IP67 - Dust Tight Waterproof | 30 mm | Button Flush Round | 24 V | 2 A | Anti-Vandal Illuminated | No Marking | Solder Quick Connect - 0.110" (2.8mm) | -25 °C | 70 °C | 125 V | Black | Blue LED | Off-On On-Off | Panel Mount Front |
