2365497 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

EP2.5 SINGLE ROW SMT HEADER,GWT,3P

Part	Connector Type	Number of Rows	Number of Positions Loaded	Insulation Color	Contact Finish - Post	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Current Rating (Amps)	Shrouding	Contact Type	Style	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Insulation Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Shape	Fastening Type	Number of Positions
TE Connectivity Raychem Cable Protection 2365497-3	Header	1	All	Natural	Tin	250 VAC	2.5 mm	0.098 in	2 çm	78.7 çin	9.5 mm	0.374 in	4.2 A	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	Solder	-55 °C	105 ░C	Copper Alloy	UL94 V-0	Nylon Polyamide (PA)	Surface Mount	78.7 µin	2 µm	Solder Retention	Square	Push-Pull

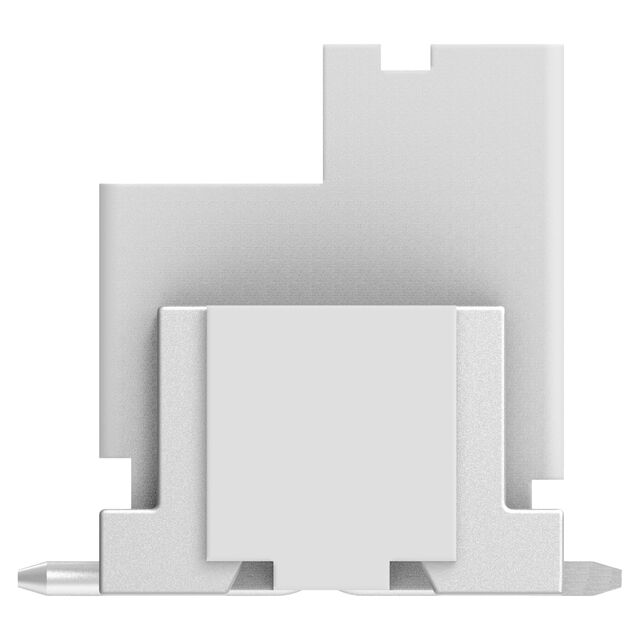

TE Connectivity Raychem Cable Protection 2365497-2	Header	1	All	Natural	Tin	250 VAC	2.5 mm	0.098 in	2 çm	78.7 çin	9.5 mm	0.374 in	4.2 A	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	Solder	-55 °C	105 ░C	Copper Alloy	UL94 V-0	Nylon Polyamide (PA)	Surface Mount	78.7 µin	2 µm	Solder Retention	Square	Push-Pull	2
TE Connectivity Raychem Cable Protection 1-2365497-4	Header	1	All	Green Natural	Tin	250 VAC	2.5 mm	0.098 in	2 çm	78.7 çin	9.5 mm	0.374 in	4.2 A	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	Solder	-55 °C	105 ░C	Copper Alloy	UL94 V-0	Nylon Polyamide (PA)	Surface Mount	78.7 µin	2 µm	Solder Retention	Square	Push-Pull	14
TE Connectivity Raychem Cable Protection 1-2365497-3	Header	1	All	Natural	Tin	250 VAC	2.5 mm	0.098 in	2 çm	78.7 çin	9.5 mm	0.374 in	4.2 A	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	Solder	-55 °C	105 ░C	Copper Alloy	UL94 V-0	Nylon Polyamide (PA)	Surface Mount	78.7 µin	2 µm	Solder Retention	Square	Push-Pull	13

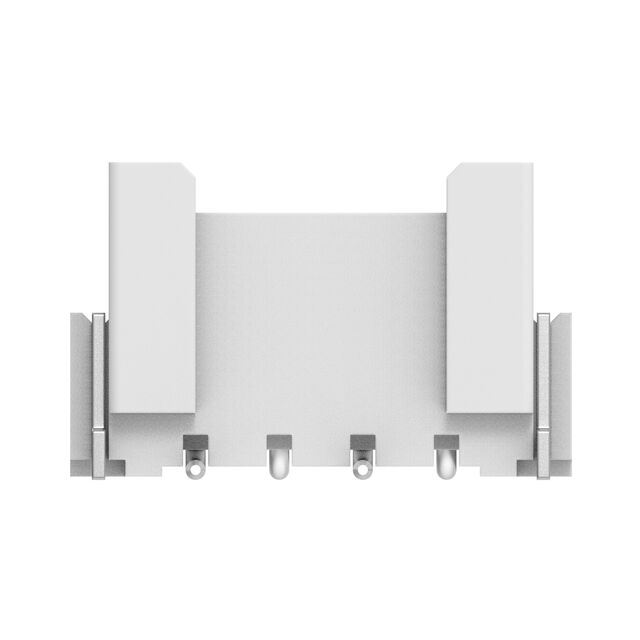

TE Connectivity Raychem Cable Protection 2365497-4	Header	1	All	Natural	Tin	250 VAC	2.5 mm	0.098 in	2 çm	78.7 çin	9.5 mm	0.374 in	4.2 A	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	Solder	-55 °C	105 ░C	Copper Alloy	UL94 V-0	Nylon Polyamide (PA)	Surface Mount	78.7 µin	2 µm	Solder Retention	Square	Push-Pull	4
TE Connectivity Raychem Cable Protection 1-2365497-2	Header	1	All	Natural	Tin	250 VAC	2.5 mm	0.098 in	2 çm	78.7 çin	9.5 mm	0.374 in	4.2 A	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	Solder	-55 °C	105 ░C	Copper Alloy	UL94 V-0	Nylon Polyamide (PA)	Surface Mount	78.7 µin	2 µm	Solder Retention	Square	Push-Pull	12

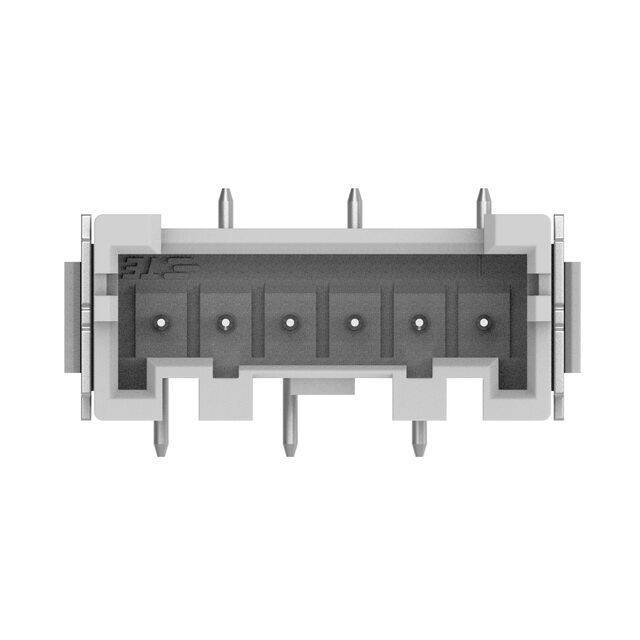

TE Connectivity Raychem Cable Protection 2365497-6	Header	1	All	Natural	Tin	250 VAC	2.5 mm	0.098 in	2 çm	78.7 çin	9.5 mm	0.374 in	4.2 A	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	Solder	-55 °C	105 ░C	Copper Alloy	UL94 V-0	Nylon Polyamide (PA)	Surface Mount	78.7 µin	2 µm	Solder Retention	Square	Push-Pull	6

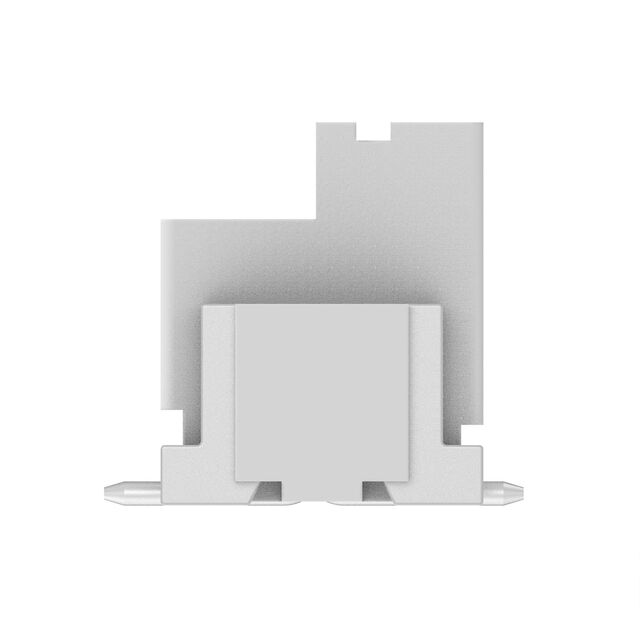

TE Connectivity Raychem Cable Protection 2365497-7	Header	1	All	Natural	Tin	250 VAC	2.5 mm	0.098 in	2 çm	78.7 çin	9.5 mm	0.374 in	4.2 A	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	Solder	-55 °C	105 ░C	Copper Alloy	UL94 V-0	Nylon Polyamide (PA)	Surface Mount	78.7 µin	2 µm	Solder Retention	Square	Push-Pull	7
TE Connectivity Raychem Cable Protection 1-2365497-0
