5593501 Series

Manufacturer: DIALIGHT

Catalog

LED PANEL RED/GRN SNAP-IN

Part	Lamp Color	Lens Size	Lens Size	Type	Lens Style	Wavelength - Peak	Current	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Panel Cutout Shape	Millicandela Rating	Voltage	Voltage	Viewing Angle	Termination Style	Termination Style	Termination Style	Lens Color	Lens Transparency
DIALIGHT 5593501802F	Green Red	5 mm	T-1 3/4	LED	Round with Domed Top	565 nm 635 nm	30mA Green 30mA Red	6.35 mm	0.25 in	Round	5 mcd 8 mcd	2.1 V	2.3 V	65 °
DIALIGHT 5593501823F
DIALIGHT 5593501027F	Green Red	5 mm	T-1 3/4	LED	Round with Domed Top	565 nm 635 nm	30mA Green 30mA Red	6.35 mm	0.25 in	Round	5 mcd 8 mcd	2.1 V	2.3 V	65 °	Wire Leads	14 in	355.6 mm
DIALIGHT 5593501817F	Green Red	5 mm	T-1 3/4	LED	Round with Domed Top	565 nm 635 nm	30mA Green 30mA Red	6.35 mm	0.25 in	Round	5 mcd 8 mcd	2.1 V	2.3 V	65 °	Wire Leads	14 in	355.6 mm
DIALIGHT 5593501807F	Green Red	5 mm	T-1 3/4	LED	Round with Domed Top	565 nm 635 nm	30mA Green 30mA Red	6.35 mm	0.25 in	Round	5 mcd 8 mcd	2.1 V	2.3 V	65 °	Wire Leads	14 in	355.6 mm
DIALIGHT 5593501810F	Green Red	5 mm	T-1 3/4	LED	Round with Domed Top	565 nm 635 nm	30mA Green 30mA Red	6.35 mm	0.25 in	Round	5 mcd 8 mcd	2.1 V	2.3 V	65 °

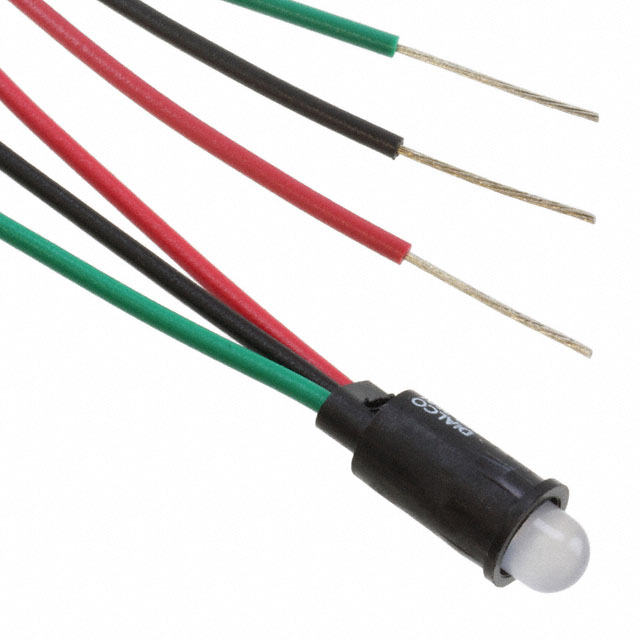

DIALIGHT 5593501003F	Green Red	5 mm	T-1 3/4	LED	Round with Domed Top	565 nm 635 nm	30mA Green 30mA Red	6.35 mm	0.25 in	Round	5 mcd 8 mcd	2.1 V	2.3 V	65 °				White	Diffused
DIALIGHT 5593501023F	Green Red	5 mm	T-1 3/4	LED	Round with Domed Top	565 nm 635 nm	30mA Green 30mA Red	6.35 mm	0.25 in	Round	5 mcd 8 mcd	2.1 V	2.3 V	65 °					Diffused

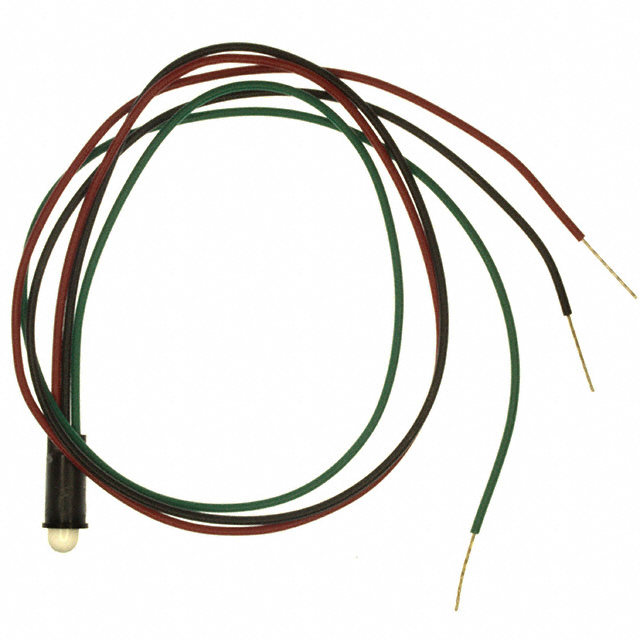

DIALIGHT 5593501007F	Green Red	5 mm	T-1 3/4	LED	Round with Domed Top	565 nm 635 nm	30mA Green 30mA Red	6.35 mm	0.25 in	Round	5 mcd 8 mcd	2.1 V	2.3 V	65 °	Wire Leads	14 in	355.6 mm		Diffused
DIALIGHT 5593501808F	Green Red	5 mm	T-1 3/4	LED	Round with Domed Top	565 nm 635 nm	30mA Green 30mA Red	6.35 mm	0.25 in	Round	5 mcd 8 mcd	2.1 V	2.3 V	65 °
