TLP348 Series

Catalog

SSR RELAY SPST-NO 3A 0-60V T&R

Part	Supplier Device Package	Mounting Type	Load Current	Voltage - Input	Package / Case	On-State Resistance (Max) [Max]	Termination Style	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type

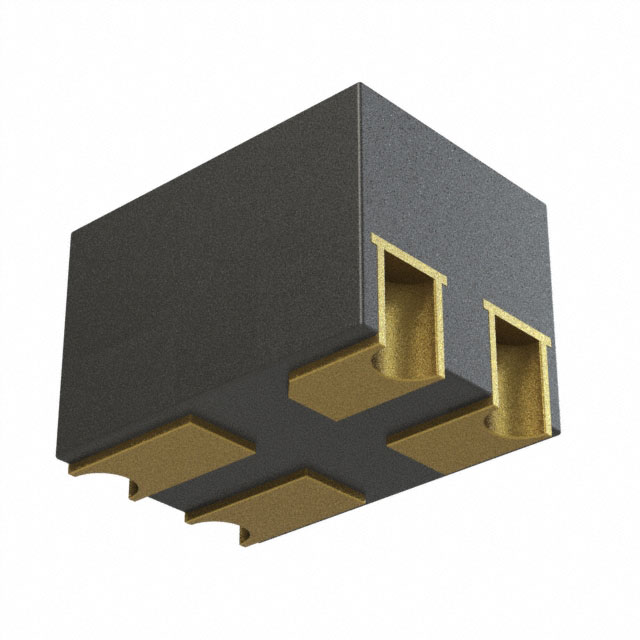

Toshiba Semiconductor and Storage TLP3481(TP,E	P-SON4	Surface Mount	3 A	1.2 VDC	4-SMD (0.083" 2.10mm)	100 mOhm	SMD (SMT) Tab	60 V	-40 C	110 °C	AC DC
Toshiba Semiconductor and Storage TLP3482(TP,E	P-SON4	Surface Mount	2 A	1.2 VDC	4-SMD (0.083" 2.10mm)	0.2 Ohms	SMD (SMT) Tab	100 V	-40 C	110 °C	AC DC

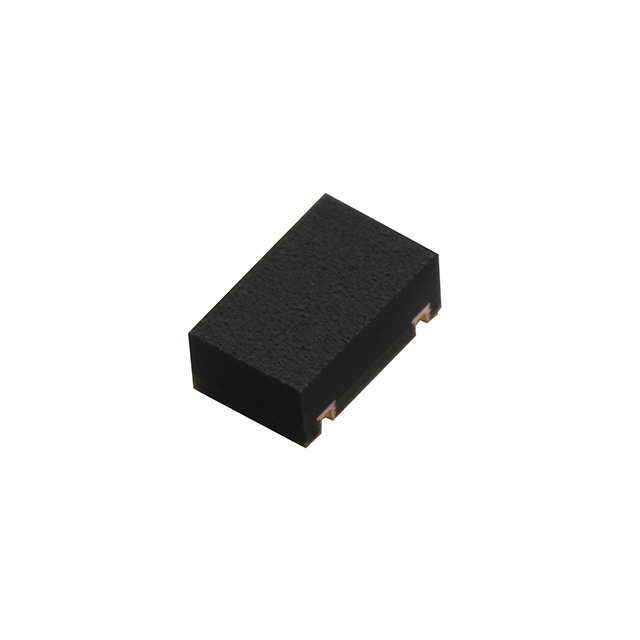

Toshiba Semiconductor and Storage TLP3480(TP,E	P-SON4	Surface Mount	4.5 A	1.2 VDC	4-SMD (0.083" 2.10mm)	50 mOhms	SMD (SMT) Tab	30 V	-40 C	110 °C	AC DC
