EEE-HP Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

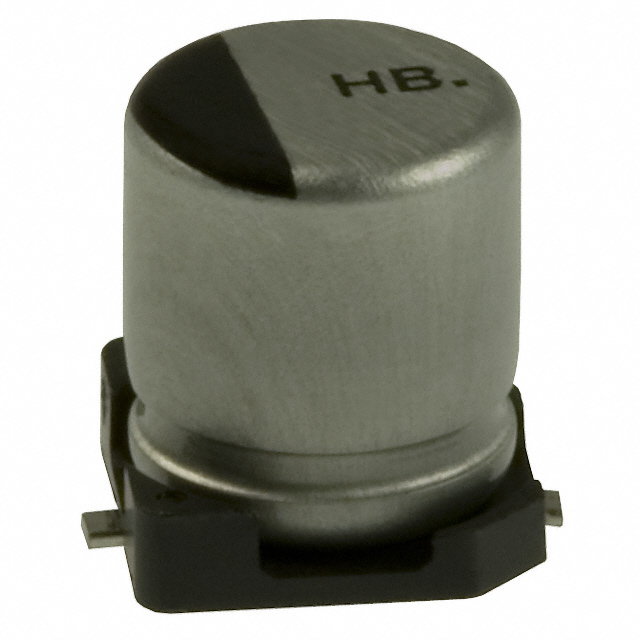

AL LYTIC CAP, SMT BP-HB SERIES, 105C

Part	Polarization	Applications	Ratings	Ripple Current @ High Frequency	Tolerance	Lifetime @ Temp.	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Package / Case	Voltage - Rated
Panasonic Industrial Automation Sales EEE-HP1C100R	Bi-Polar	Automotive	AEC-Q200	42.5 mA	20 %	2000 Hrs	25 mA	0.24 in	6.1 mm	5 mm	0.197 "	Surface Mount	10 µF	-40 °C	105 ░C	5.3 mm	0.209 in	5.3 mm	0.209 in	Radial Can - SMD	16 V
Panasonic Industrial Automation Sales EEE-HP1V2R2R	Bi-Polar	Automotive	AEC-Q200	17 mA	20 %	2000 Hrs	10 mA	0.24 in	6.1 mm	4 mm	0.157 in	Surface Mount	2.2 µF	-40 °C	105 ░C	4.3 mm	0.169 in	4.3 mm	0.169 "	Radial Can - SMD	35 V
Panasonic Industrial Automation Sales EEE-HP0J100R	Bi-Polar	Automotive	AEC-Q200		20 %	2000 Hrs		0.228 "	5.8 mm	4 mm	0.157 in	Surface Mount	10 µF	-40 °C	105 ░C					Radial Can - SMD	6.3 V
Panasonic Industrial Automation Sales EEE-HP1E4R7R	Bi-Polar	Automotive	AEC-Q200	20.4 mA	20 %	2000 Hrs	12 mA	0.24 in	6.1 mm	4 mm	0.157 in	Surface Mount	4.7 µF	-40 °C	105 ░C	4.3 mm	0.169 in	4.3 mm	0.169 "	Radial Can - SMD	25 VDC
Panasonic Industrial Automation Sales EEE-HP1A100R	Bi-Polar	Automotive	AEC-Q200	34 mA	20 %	2000 Hrs	20 mA	0.232 "	5.9 mm	4 mm	0.157 in	Surface Mount	10 µF	-40 °C	105 ░C	4.3 mm	0.169 in	4.3 mm	0.169 "	Radial Can - SMD	10 V
Panasonic Industrial Automation Sales EEE-HP1H4R7P	Bi-Polar	Automotive	AEC-Q200	39.1 mA	20 %	2000 Hrs	23 mA	0.24 in	6.1 mm	6.3 mm	0.248 in	Surface Mount	4.7 µF	-40 °C	105 ░C	6.6 mm	0.26 in	6.6 mm	0.26 in	Radial Can - SMD	50 VDC
Panasonic Industrial Automation Sales EEE-HP1E100P	Bi-Polar	Automotive	AEC-Q200	204 mA	20 %	2000 Hrs	28 mA	0.24 in	6.1 mm	6.3 mm	0.248 in	Surface Mount	10 µF	-40 °C	105 ░C	6.6 mm	0.26 in	6.6 mm	0.26 in	Radial Can - SMD	25 VDC
Panasonic Industrial Automation Sales EEE-HP1E3R3R	Bi-Polar	Automotive	AEC-Q200	20.4 mA	20 %	2000 Hrs	12 mA	0.228 "	5.8 mm	4 mm	0.157 in	Surface Mount	3.3 µF	-40 °C	105 ░C	4.3 mm	0.169 in	4.3 mm	0.169 "	Radial Can - SMD	25 VDC
Panasonic Industrial Automation Sales EEE-HP0J470P	Bi-Polar	Automotive	AEC-Q200	59.5 mA	20 %	2000 Hrs	35 mA	0.24 in	6.1 mm	6.3 mm	0.248 in	Surface Mount	47 µF	-40 °C	105 ░C	6.6 mm	0.26 in	6.6 mm	0.26 in	Radial Can - SMD	6.3 V
