1939760 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

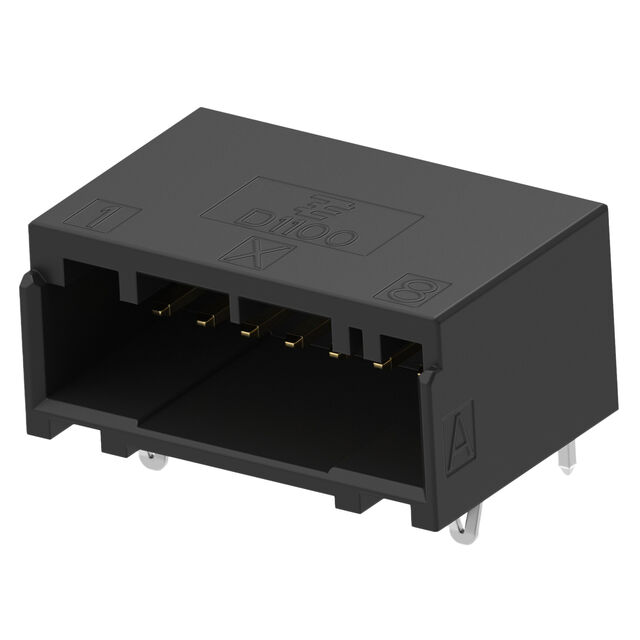

HDR ASSY (H-TYPE) 8POS X-KEY AU
| Part | Current Rating (Amps) | Contact Shape | Material Flammability Rating | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Number of Rows | Insulation Color | Contact Length - Post | Contact Length - Post | Termination | Contact Finish - Post | Contact Material | Pitch - Mating [x] | Pitch - Mating [x] | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Style | Contact Type | Number of Positions | Features | Mounting Type | Connector Type | Contact Finish - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 3 A | Rectangular | UL94 V-0 | All | 15 µin | 0.38 µm | 2 çm | 78.7 çin | Shrouded - 4 Wall | 1 | Black | 0.122 " | 3.1 mm | Solder | Tin | Copper Alloy | 0.079 in | 2 mm | 105 ░C | -55 °C | Push-Pull | Board to Cable/Wire | Male Pin | 8 | Board Guide | Through Hole Right Angle | Header | Gold | 0.335 " | 8.51 mm |
