56K504 Series
Manufacturer: Rosenberger
Beta
⌘K

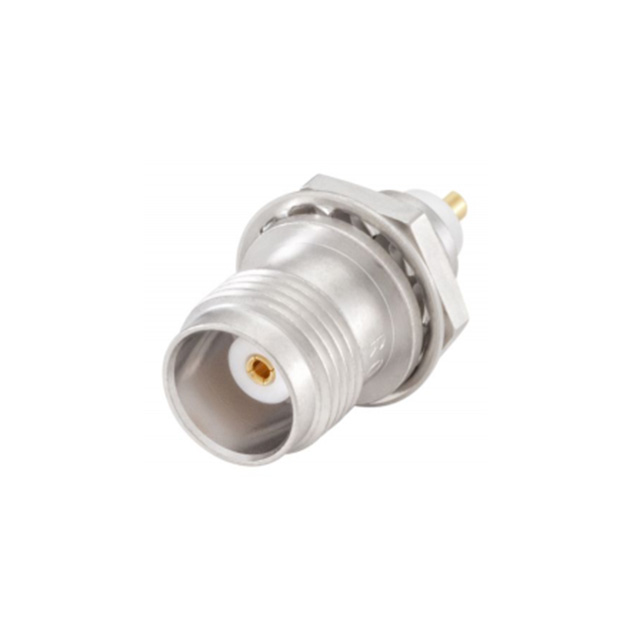

CONN TNC JACK STR 50OHM SOLDER
| Part | Mating Cycles | Dielectric Material | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Voltage Rating | Center Contact Plating | Body Finish | Fastening Type | Shield Termination | Mounting Type | Features | Connector Type | Frequency - Max [Max] | Mounting Feature | Number of Ports | Connector Style | Impedance | Contact Termination | Housing Color | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | 85 °C | -45 °C | Brass | 500 V | Gold | White Bronze | Threaded | Solder | Panel Mount | Extended Insulation | Female Socket Jack | 10 GHz | Bulkhead - Rear Side Nut | 1 | TNC | 50 Ohms | Solder Cup | Silver | Bronze |
