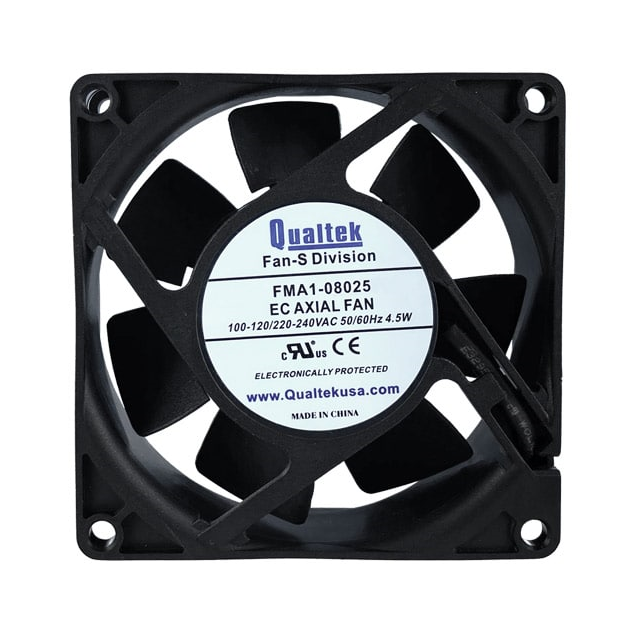

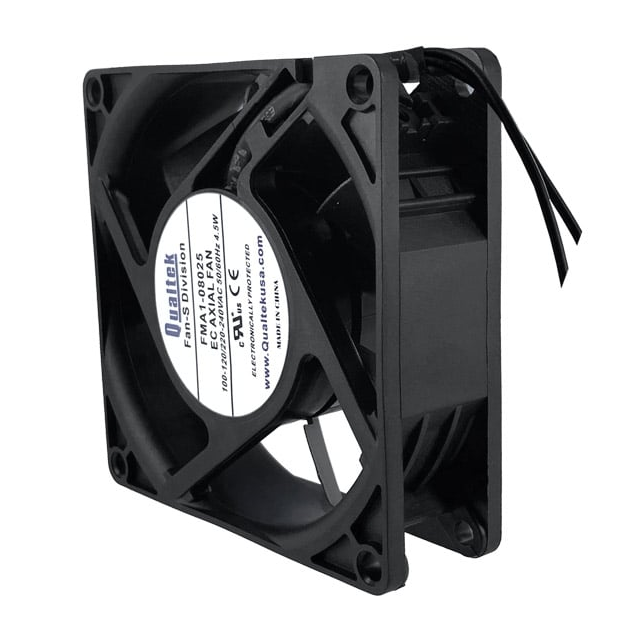

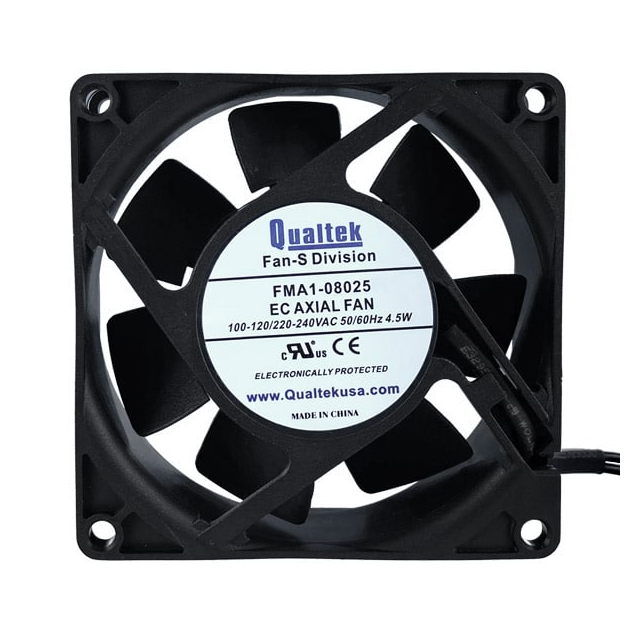

FMA1-08025 Series
Manufacturer: Qualtek
Beta
⌘K
EC FAN, 80X80X25MM, 2-BALL BEARI
| Part | Material - Frame | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Features | Noise | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Width [y] | RPM | Air Flow | Air Flow | Approval Agency | Voltage - Rated [Max] | Voltage - Rated [Min] | Static Pressure | Static Pressure | Fan Type | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Plastic | 60 mA | Plastic | 70000 Hrs | Electronic Commutation (EC) | 31 dB(A) | 80 mm | 80 mm | Ball | IP54 - Dust Protected Water Resistant | -20 ░C | 70 °C | 4.5 W | 25 mm | 3500 RPM | 1.09 m³/min | 38.9 CFM | CE cURus | 240 VAC | 100 VAC | 61.5 Pa | 0.247 in H2O | Tubeaxial | 2 Wire Leads | |
 Qualtek | Plastic | 60 mA | Plastic | 70000 Hrs | Electronic Commutation (EC) | 31 dB(A) | 80 mm | 80 mm | Ball | IP54 - Dust Protected Water Resistant | -20 ░C | 70 °C | 4.5 W | 25 mm | 3500 RPM | 1.09 m³/min | 38.9 CFM | CE cURus | 240 VAC | 100 VAC | 61.5 Pa | 0.247 in H2O | Tubeaxial | 2 |
