737-086 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 86POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Gender	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Mounting Type	Pitch	Pitch	Contact Finish	Termination	Card Type	Contact Material	Number of Positions/Bay/Row	Number of Rows [custom]	Contact Type
EDAC Inc. 737-086-525-201	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever
EDAC Inc. 737-086-560-206	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever Make Before Break
EDAC Inc. 737-086-540-206	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit Wire Wrap	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever
EDAC Inc. 737-086-522-201	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever
EDAC Inc. 737-086-525-206	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever
EDAC Inc. 737-086-560-201	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever Make Before Break
EDAC Inc. 737-086-541-206	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit Wire Wrap	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever
EDAC Inc. 737-086-541-201	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit Wire Wrap	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever
EDAC Inc. 737-086-520-206	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever

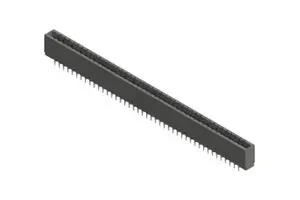

EDAC Inc. 737-086-520-201	Polyester Thermoplastic	2	Black	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	86	Through Hole	3.96 mm	0.156 in	Gold	Press-Fit	Non Specified - Dual Edge	Copper Alloy	43	2	Cantilever
