ERJ-D2 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

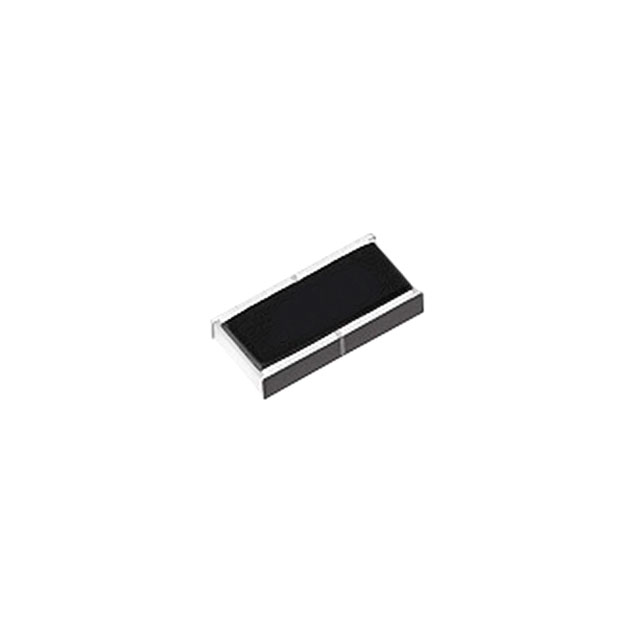

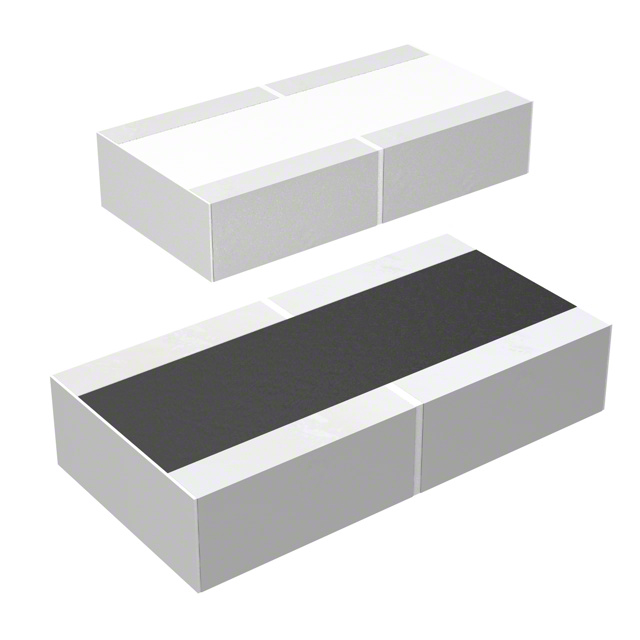

RES 0.082 OHM 1W 1206 WIDE
| Part | Resistance | Package / Case | Tolerance | Temperature Coefficient | Composition | Power (Watts) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Features | Size / Dimension [y] | Size / Dimension [x] | Ratings | Number of Terminations | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 82 mOhms | Wide 1206 (3216 Metric) 0612 | 5 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 |
Panasonic Industrial Automation Sales | 24 mOhms | Wide 1206 (3216 Metric) 0612 | 1 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 |
Panasonic Industrial Automation Sales | 16 mOhms | Wide 1206 (3216 Metric) 0612 | 1 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 |
Panasonic Industrial Automation Sales | 0.03 Ohms | Wide 1206 (3216 Metric) 0612 | 5 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 |
 Panasonic Industrial Automation Sales | 0.1 Ohms | Wide 1206 (3216 Metric) 0612 | 1 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 |
Panasonic Industrial Automation Sales | 110 mOhms | Wide 1206 (3216 Metric) 0612 | 5 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 |
Panasonic Industrial Automation Sales | Wide 1206 (3216 Metric) 0612 | 1 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 | |
Panasonic Industrial Automation Sales | 39 mOhms | Wide 1206 (3216 Metric) 0612 | 1 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 |
Panasonic Industrial Automation Sales | 75 mOhms | Wide 1206 (3216 Metric) 0612 | 1 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 |
Panasonic Industrial Automation Sales | 10 mOhms | Wide 1206 (3216 Metric) 0612 | 1 % | 100 ppm/°C | Thick Film | 1 W | 0.8 mm | 0.031 " | Automotive AEC-Q200 Current Sense | 0.126 in 3.2 mm | 0.063 in 1.6 mm | AEC-Q200 | 2 | 155 °C | -55 °C | 0612 |
