395-086 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 86POS 0.100
...
| Part | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Material - Insulation | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Type | Card Type | Number of Positions | Read Out | Contact Finish | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Type | Gender | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | -40 °C | 105 ░C | Wire Wrap | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | |||
 EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | Side Mount Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | 3.25 mm | 0.128 in | |||

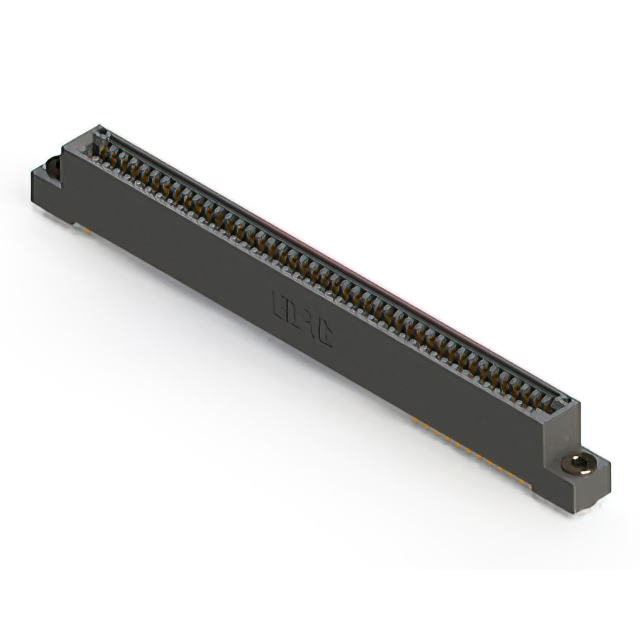

 EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | |||||

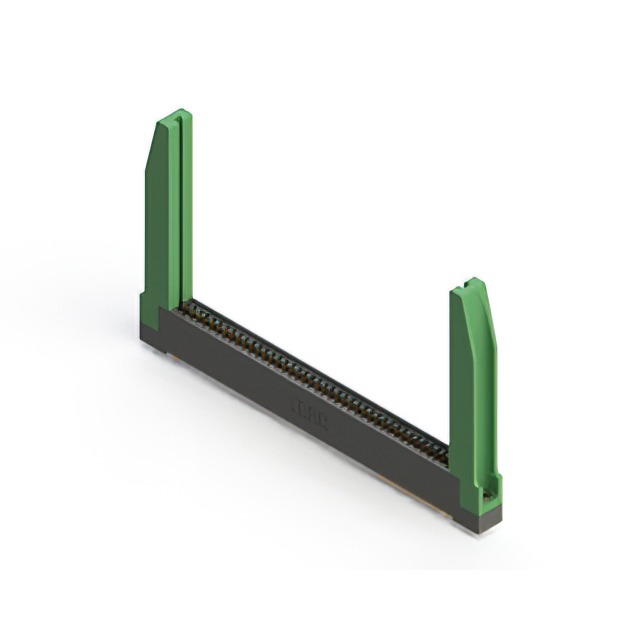

 EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Threaded Insert Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | Card Guides | ||||
 EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Threaded Insert Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Board Edge Straddle Mount | Female | Card Extender | ||||
 EDAC Inc. | 2 | -40 °C | 105 ░C | Wire Wrap | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | |||
 EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Board Edge Straddle Mount | Female | Card Extender | ||

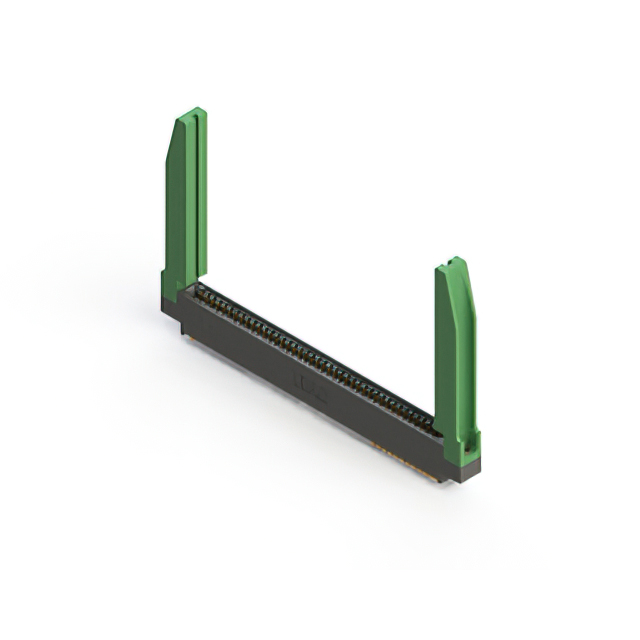

 EDAC Inc. | 2 | -40 °C | 105 ░C | Wire Wrap | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Threaded Insert Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | Card Guides | ||||

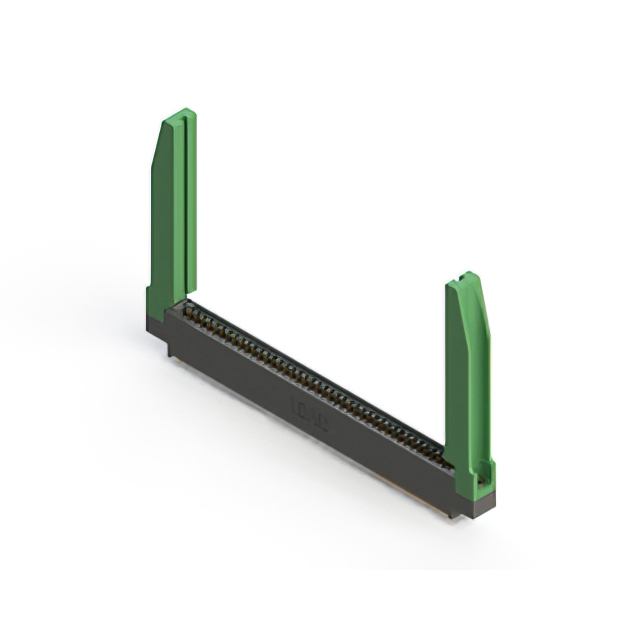

 EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | Card Guides | ||||
 EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female |
