SDN20 Series
Manufacturer: SolaHD
Beta
⌘K

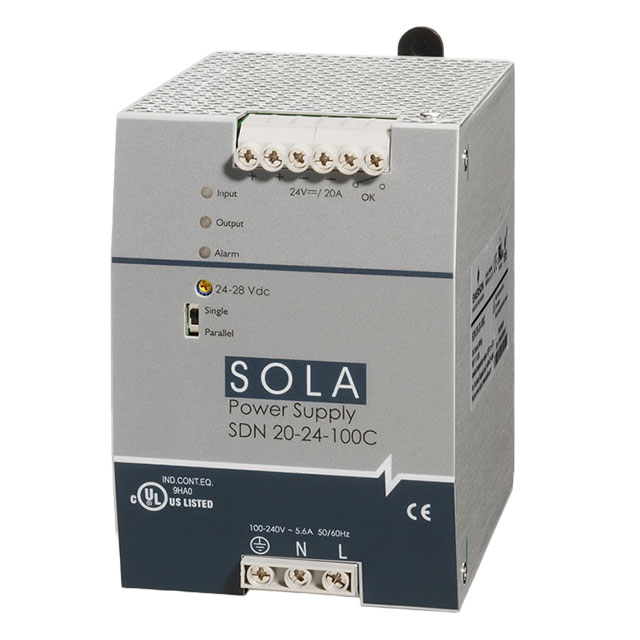

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 24 VDC, 20 A
| Part | Voltage - Output 1 | Input Type | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Approval Agency | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Efficiency | Applications | Number of Outputs | Current - Output (Max) [Max] | DC Voltage - Input (Max) [Max] | Features | Power (Watts) | DC Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SolaHD | 24 V | AC or DC | 264 VAC | 85 VAC | CE cULus cURus EAC | 3.42 in | 86.9 mm | 4.98 in | 126.5 mm | 4.85 " | 123.2 mm | 92 % | Hazardous Locations Industrial ITE (Commercial) | 1 | 20 A | 275 V | Adjustable Output IP20 Universal Input | 480 W | 90 V |
