MAX5725 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC DAC 12BIT V-OUT 20TSSOP

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	INL/DNL (LSB)	Package / Case	Package / Case [y]	Package / Case [x]	Data Interface	Architecture	Settling Time	Reference Type	Output Type	Number of Bits	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Number of D/A Converters	Voltage - Supply, Digital [Max] [custom]	Voltage - Supply, Digital [Min] [custom]	Supplier Device Package	Supplied Contents	DAC Type	Contents	Number of DAC's	Utilized IC / Part
Analog Devices Inc./Maxim Integrated MAX5725AAUP+T	Surface Mount	125 °C	-40 C	0.2 LSB 0.5 LSB	20-TSSOP	4.4 mm	0.173 "	DSP SPI	R-2R	4.5 µs	External Internal	Voltage - Buffered	12	5.5 V	2.7 V	8	5.5 V	2.7 V	20-TSSOP
Analog Devices Inc./Maxim Integrated MAX5725AAUP+	Surface Mount	125 °C	-40 C	0.2 LSB 0.5 LSB	20-TSSOP	4.4 mm	0.173 "	DSP SPI	R-2R	4.5 µs	External Internal	Voltage - Buffered	12	5.5 V	2.7 V	8	5.5 V	2.7 V	20-TSSOP

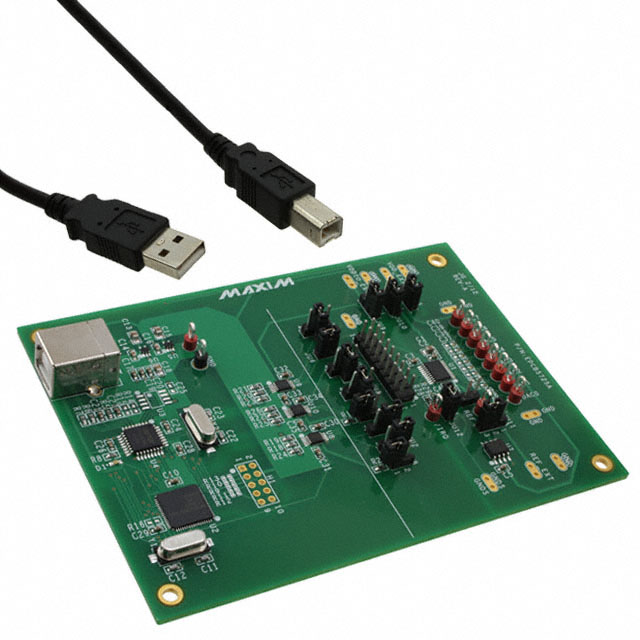

Analog Devices Inc./Maxim Integrated MAX5725AEVKIT#								DSP MICROWIRE™ QSPI™ Serial SPI™		4.5 µs			12							Board(s) Cable(s)	Current	Board Cable	1	MAX5725A
Analog Devices Inc./Maxim Integrated MAX5725AWP+T	Surface Mount	125 °C	-40 C	0.2 LSB 0.5 LSB	20-WFBGA WLBGA			DSP SPI	R-2R	4.5 µs	External Internal	Voltage - Buffered	12	5.5 V	2.7 V	8	5.5 V	2.7 V	20-WLP
Analog Devices Inc./Maxim Integrated MAX5725BAUP+T	Surface Mount	125 °C	-40 C	0.2 LSB 0.5 LSB	20-TSSOP	4.4 mm	0.173 "	DSP SPI	R-2R	4.5 µs	External Internal	Voltage - Buffered	12	5.5 V	2.7 V	8	5.5 V	2.7 V	20-TSSOP
Analog Devices Inc./Maxim Integrated MAX5725BAUP+	Surface Mount	125 °C	-40 C	0.2 LSB 0.5 LSB	20-TSSOP	4.4 mm	0.173 "	DSP SPI	R-2R	4.5 µs	External Internal	Voltage - Buffered	12	5.5 V	2.7 V	8	5.5 V	2.7 V	20-TSSOP
