R73UN Series

Manufacturer: KEMET

Catalog

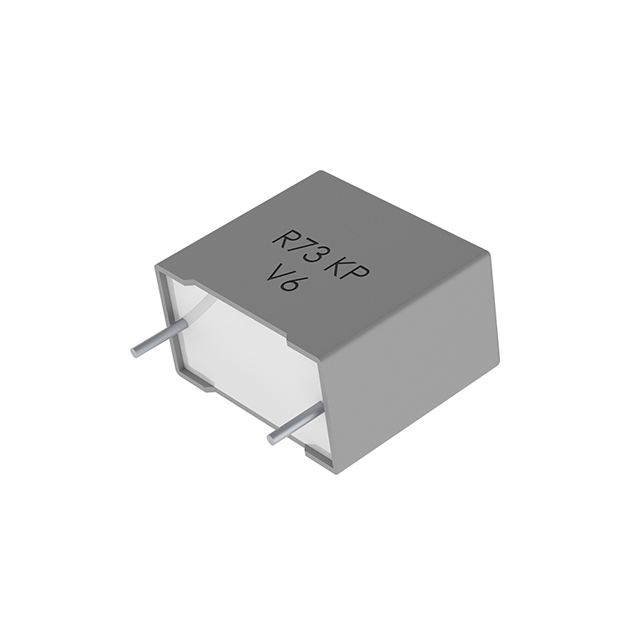

CAP FILM 3300PF 5% 2KVDC RADIAL

Part	Voltage Rating - AC	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Applications	Dielectric Material	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Tolerance	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max] [z]
KEMET R73UN13304000J	500 V	PC Pins	0.594 in	15.1 mm	1.043 in	0.236 "	26.5 mm	6 mm	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Polypropylene (PP) Metallized	0.0033 µF	-55 C	105 ░C	AEC-Q200	Radial	2 kV	2 kVDC	0.886 in	22.5 mm	5 %	Through Hole
KEMET R73UN1470SE00J	500 V	PC Pins			1.043 in	0.276 in	26.5 mm	7 mm	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Polypropylene (PP) Metallized	0.0047 µF	-55 C	105 ░C	AEC-Q200	Radial	2 kV	2 kVDC	0.886 in	22.5 mm	5 %	Through Hole	16.1 mm	0.634 "
KEMET R73UN14704000J	500 V	PC Pins			1.043 in	0.276 in	26.5 mm	7 mm	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Polypropylene (PP) Metallized	0.0047 µF	-55 C	105 ░C	AEC-Q200	Radial	2 kV	2 kVDC	0.886 in	22.5 mm	5 %	Through Hole	16.1 mm	0.634 "
