XR76121 Series
Manufacturer: MaxLinear, Inc.
Beta
⌘K

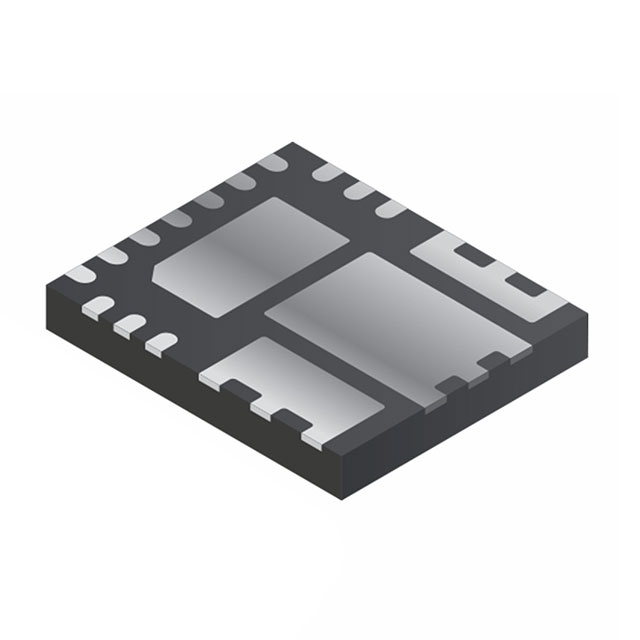

IC REG BUCK ADJ 20A 16QFN
| Part | Voltage - Input (Max) [Max] | Output Configuration | Voltage - Output (Max) [Max] | Synchronous Rectifier | Mounting Type | Number of Outputs | Frequency - Switching [Max] | Frequency - Switching [Min] | Topology | Function | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Supplier Device Package | Output Type | Voltage - Output (Min/Fixed) | Package / Case | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Utilized IC / Part | Main Purpose | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MaxLinear, Inc. | 22 V | Positive | 22 V | Surface Mount | 1 | 1 MHz | 200 kHz | Buck | Step-Down | 20 A | -40 C | 125 °C | 4.5 V | 16-QFN (5x6) | Adjustable | 0.6 V | 16-PowerVQFN | |||||||||||

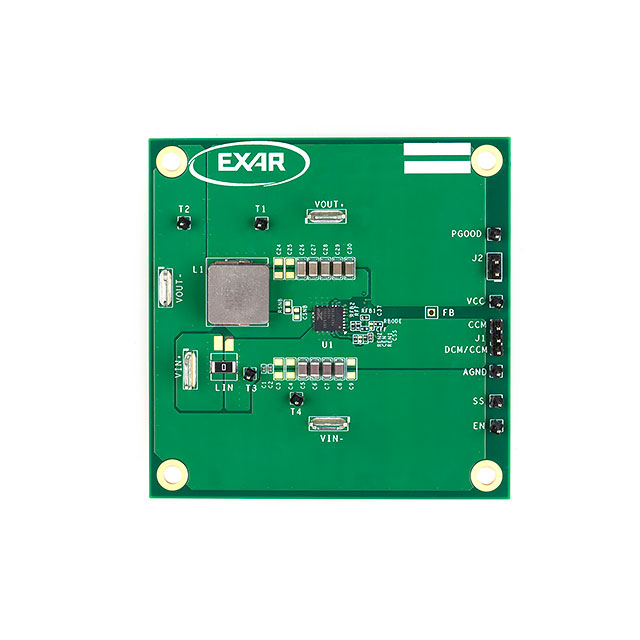

 MaxLinear, Inc. | 20 A | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | XR76121 | DC/DC Step Down | Buck | 22 V | 5 V | Board(s) |
