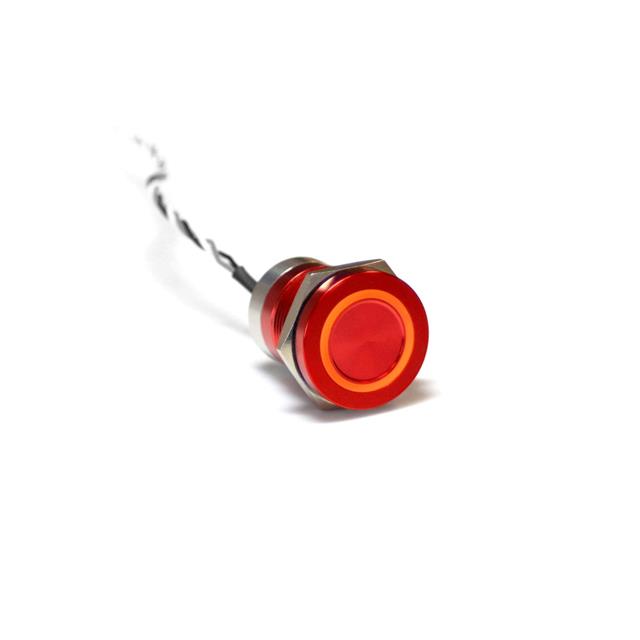

MC19MOR Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
SWITCH PUSH BUTTON OFF (ON) DPDT FLUSH ROUND BUTTON 0.5A 24VDC MOMENTARY PANEL MOUNT WIRE LEAD BULK
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Type | Actuator Type | Current Rating (Amps) | Illumination Type, Color | Ingress Protection | Mounting Type | Panel Cutout Dimensions [diameter] | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Termination Style | Color - Actuator/Cap | Illumination Voltage (Nominal) | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 50000000 Cycles | 50 000 000 | 24 V | Capacitive Illuminated | Button Flush Round | 500 mA | Amber LED | IP68 IP69K | Panel Mount Front | 19.2 mm | SPST-NO | 55 °C | -25 °C | Off-Mom | Wire Leads | Red | 12 VDC | |
 BULGIN LIMITED | 50000000 Cycles | 50 000 000 | 12 V | Capacitive Illuminated | Button Flush Round | 500 mA | Green/Red LED | IP68 IP69K | Panel Mount Front | 19.2 mm | SPST-NO | 55 °C | -25 °C | Off-Mom | Wire Leads | Red | No Marking |
