HLMP-EG3 Series

Catalog

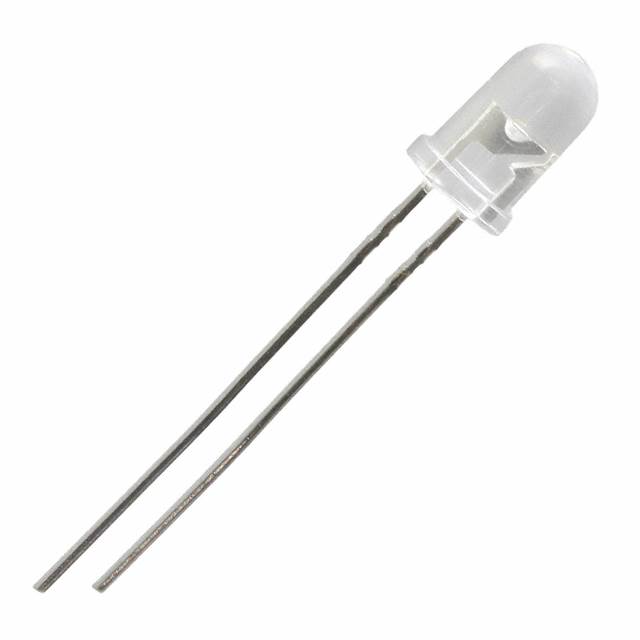

LED RED CLEAR T-1 3/4 T/H

Part	Voltage - Forward (Vf) (Typ)	Mounting Type	Supplier Device Package	Wavelength - Dominant	Viewing Angle	Lens Color	Millicandela Rating	Lens Style	Color	Lens Transparency	Lens Size	Lens Size	Configuration	Wavelength - Peak	Package / Case	Current - Test	Height (Max) [Max] [z]	Height (Max) [z]
Broadcom Limited HLMP-EG3A-WX0DV	2.1 V	Through Hole	T-1 3/4	626 nm	30 °	Colorless	7400 mcd	Round with Domed Top	Red	Clear	5 mm	T-1 3/4	Standard	634 nm	Radial	20 mA
Broadcom Limited HLMP-EG3H-VX0DD	2.1 V	Through Hole	T-1 3/4 (5mm)	626 nm	30 °	Colorless	6750 mcd	Round with Domed Top	Red	Clear	5 mm	T-1 3/4	Standard	634 nm	Radial	20 mA	12.35 mm
Broadcom Limited HLMP-EG3E-QT000	2.1 V	Through Hole	T-1 3/4	626 nm	30 °			Round with Domed Top	Red		5 mm	T-1 3/4	Standard	634 nm	Radial	20 mA		8.91 mm
