5064C Series

Catalog

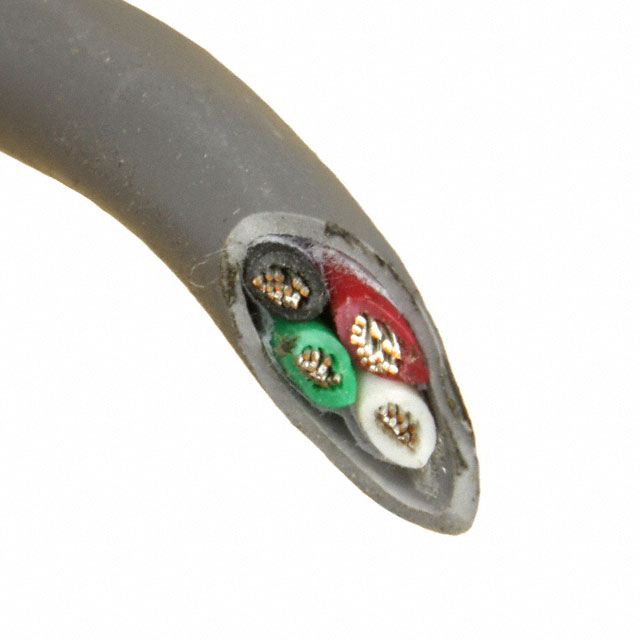

CBL 4COND 18AWG SLATE FEET

Part	Spool Size [x]	Spool Size [x]	Jacket Color	Ratings	Usage	Wire Gauge	Voltage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Number of Conductors	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length	Features	Length	Length	Length [x]	Length [x]
ALPHA WIRE 5064C SL199	304.8 m	1000 ft	Slate	ISO 10993 UL Style 2464	Communication Control	18 AWG	300 VDC	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	16	30 AWG	0.259 in	6.58 mm	Copper Tinned	4	Multi-Conductor	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)	Enter Number of Feet in Order Quantity	Biological Compatibility Rip Cord
ALPHA WIRE 5064C RD199			Red	ISO 10993 UL Style 2464	Communication Control	18 AWG	300 VDC	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	16	30 AWG	0.259 in	6.58 mm	Copper Tinned	4	Multi-Conductor	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)		Biological Compatibility Rip Cord	304.8 m	1000 ft
ALPHA WIRE 5064C SL005			Slate	ISO 10993 UL Style 2464	Communication Control	18 AWG	300 VDC	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	16	30 AWG	0.259 in	6.58 mm	Copper Tinned	4	Multi-Conductor	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)		Biological Compatibility Rip Cord			100 ft	30.5 m
ALPHA WIRE 5064C SL002			Slate	ISO 10993 UL Style 2464	Communication Control	18 AWG	300 VDC	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	16	30 AWG	0.259 in	6.58 mm	Copper Tinned	4	Multi-Conductor	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)		Biological Compatibility Rip Cord	152.4 m	500 ft
ALPHA WIRE 5064C BK199			Black	ISO 10993 UL Style 2464	Communication Control	18 AWG	300 VDC	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	16	30 AWG	0.259 in	6.58 mm	Copper Tinned	4	Multi-Conductor	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)		Biological Compatibility Rip Cord	304.8 m	1000 ft
